Havis-Shields K9/Prisoner Transportation System KK-K9-F14-K-PT User Manual
Page 5

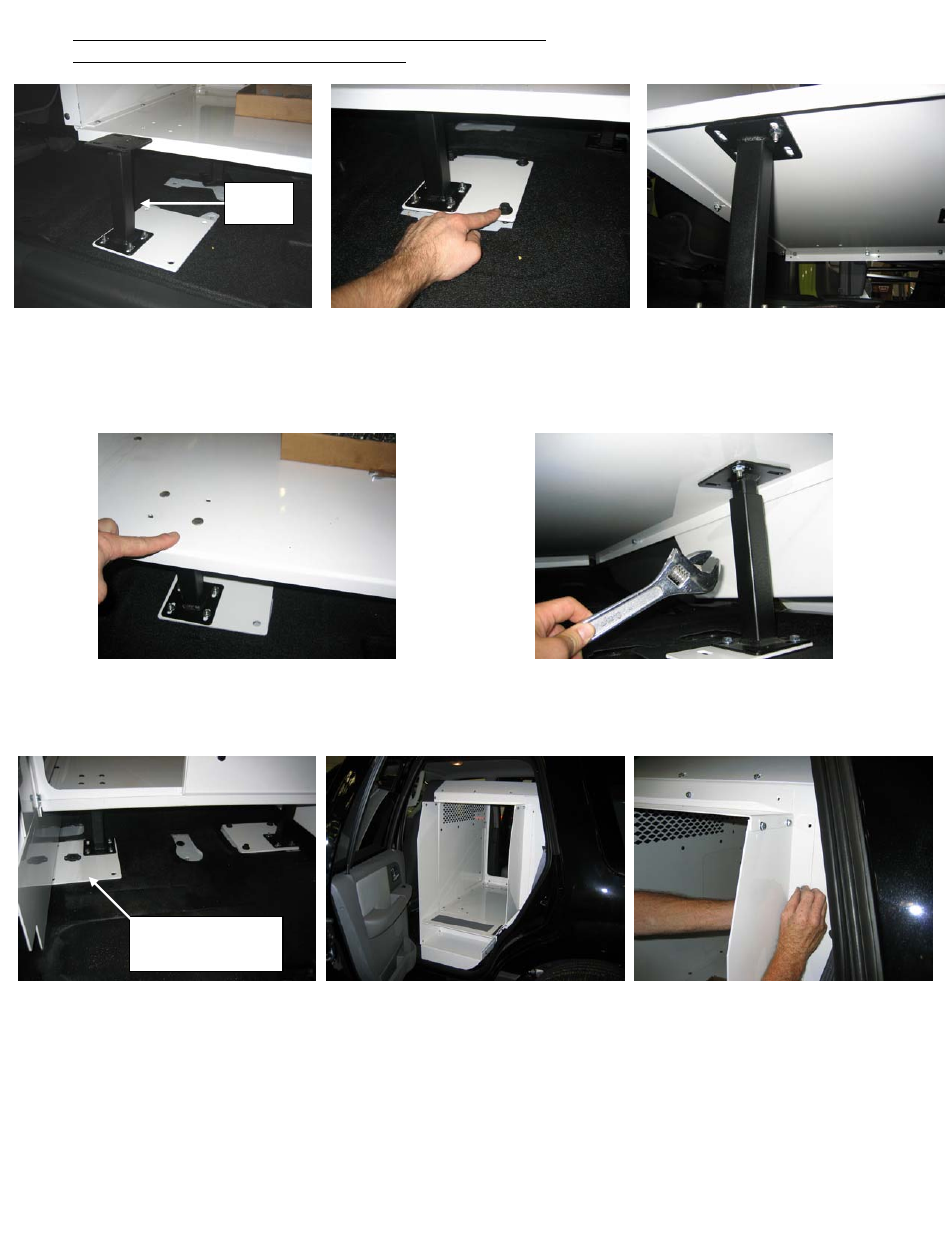

Note: Mounting plate straddles a ridge in the floor. When bolts
KK-K9-F14-K-PT_INST_11-08
5
are tightened the plate will form to the floor.
View of mounting foot from
floor of K9
Adjust mounting foot until K9
unit is level within the vehicle
Attach assembly to vehicle
using OEM seat hardware and
nutcerts in vehicle
Attach assembly to K9 floor
using ¼” x ¾” carriage bolts
and serrated nuts
Sub-assemble mounting leg to
mounting plate using ¼” x ¾”
lts and serrated nuts. Set
mounting leg assembly to 7 ¾”
carriage bo
7 ¾”
Attach tunnel to K9 assembly using ¼” x
¾” and ¼” x ½” carriage bolts and
serrated nuts
Place tunnel assembly as shown
above
View of mounting feet from
drivers’ compartment
Single mounting
hole
Note: ¾” bolts are used where (3) layer
thicknesses of aluminum bolt together
