Havis-Shields K9/Prisoner Transportation System KK-K9-F14-K-PT User Manual
Page 7
KK-K9-F14-K-PT_INST_11-08
7

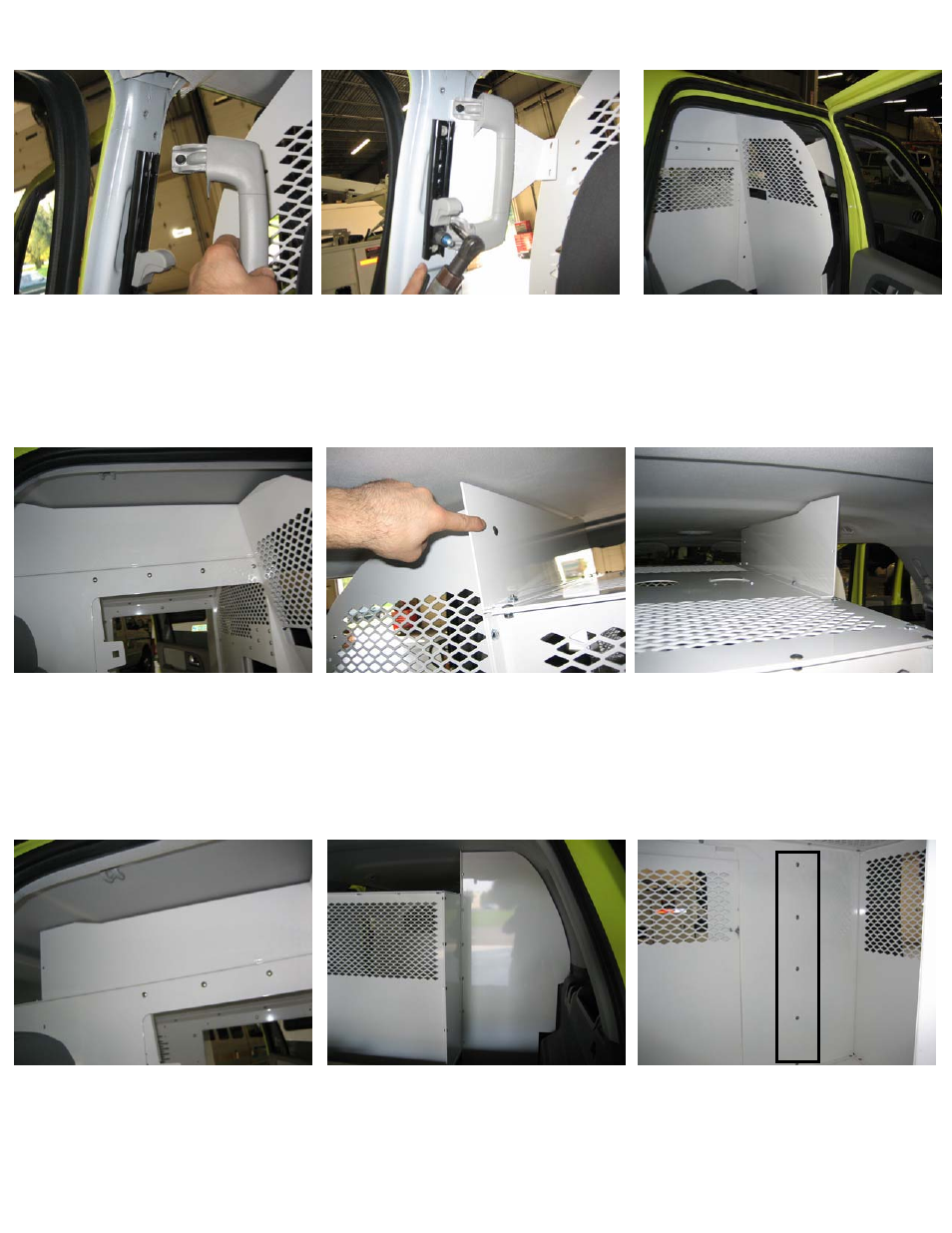

Attach “B” pillar mounting
bracket to front partition using
¼” x ¾” carriage bolts and nuts
Install “B” pillar mounting
bracket using bolts that hold
grab handle. (Re-installing the
grab handle is optional)
Grab handle removed
Attach ceiling filler panel to
front partition using ¼” x ¾”
carriage bolt and nut
View of ceiling filler
from rear of vehicle
Install ceiling filler panel to
passenger side of K9 housing using
¼” x ¾” carriage bolts and nuts
View of ceiling filler from
passenger side rear door
Position rear partition through
vehicles rear hatch
Location on inside of K9 assembly
where rear partition will bolt to using
¼” x ¾” carriage bolts and nuts
