DL.1 User Manual Fixture Operation 3-11
3
Zoom Override Menu
Use this menu option to override the zoom value sent the by the DMX console to the
fixture. This feature is commonly used with PROJECTOR CTRL, which is discussed on
page 3-11.
To select a DMX Zoom value:
1. Press the Menu button to unlock the menu system or to move back up the system
to the top level menus.
2. Using the left and right arrows on the Navigation button, scroll through the top
level to SET PARAMETERS MENU and press the Enter button to select.
3. Using the left and right arrows on the Navigation button, scroll to ZOOM
OVERRIDE MENU.
4. Using the up and down arrows on the Navigation button, scroll to a DMX value
between 0 and 255 and press the Enter button to select.
Focus Override Menu
Use this menu option to override the zoom value sent the by the DMX console to the
fixture. This feature is commonly used with PROJECTOR CTRL, which is discussed on
page 3-11.
To select a DMX Focus value:
1. Press the Menu button to unlock the menu system or to move back up the system
to the top level menus.
2. Using the left and right arrows on the Navigation button, scroll through the top
level to SET PARAMETERS MENU and press the Enter button to select.
3. Using the left and right arrows on the Navigation button, scroll to FOCUS
OVERRIDE MENU.
4. Using the up and down arrows on the Navigation button, scroll to a DMX value
between 0 and 255 and press the Enter button to select.
Projector Control
Use this menu option to toggle between the DL.1 menu system and the native
projector menu system. The projector’s menu system is discussed in the projector
manual provided with the DL.1 fixture.If you enable projector control, the DL.1’s

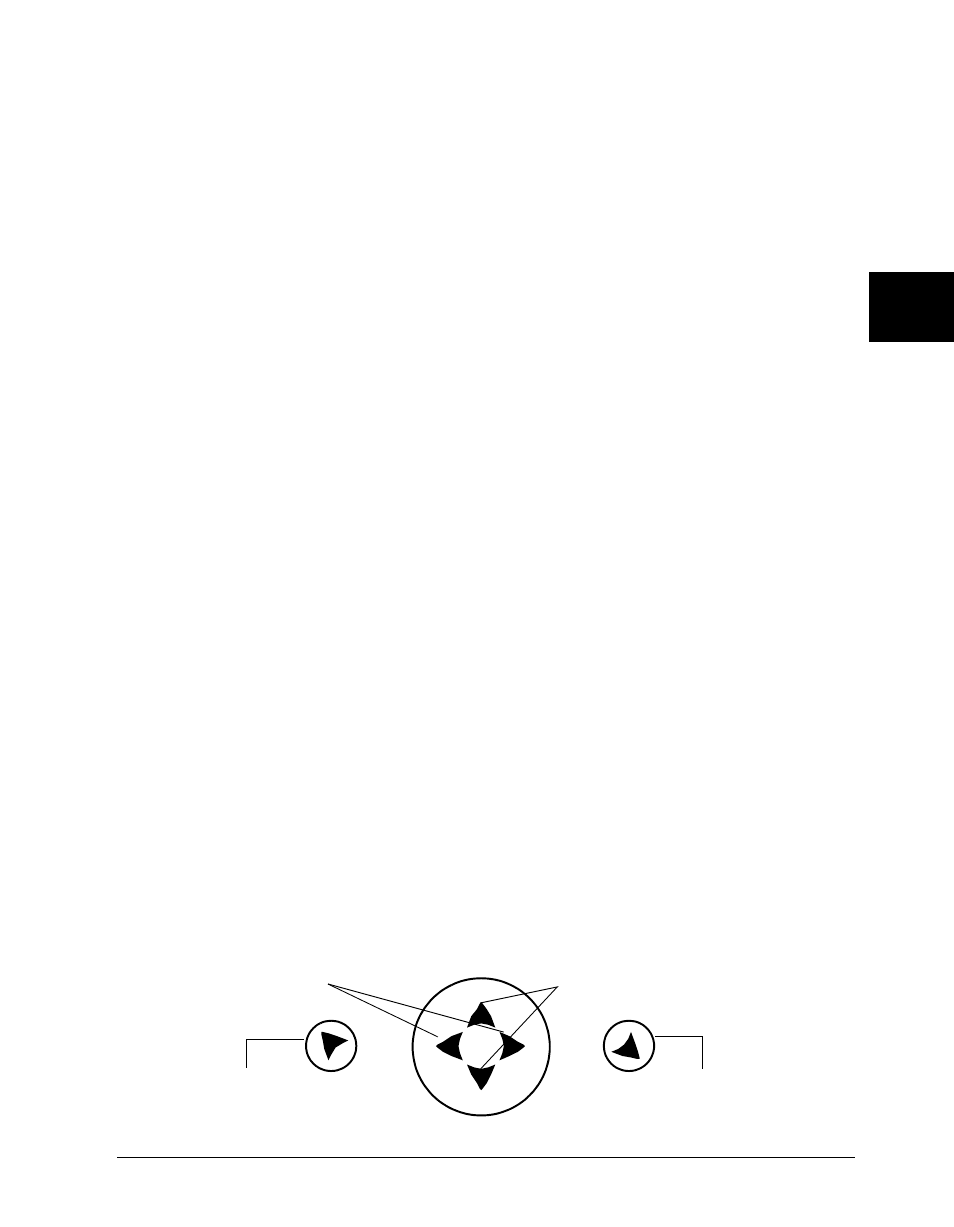

function keys map to projector function buttons as shown in Figure 3-2:
Menu button Enter button
Point buttons (used to select an
item or adjust a value)
Figure 3-2 DL.1 key map
Volume +/- buttons
