2-12 Setup and Configuration DL.1 User Manual
Shutting Down the Fixture
The DL.1 fixture automatically shuts down in the event of DMX data loss. A DMX
controller can shut down the fixture remotely with the shutdown option in the
control channel–see “Control Function Options” on page 4-4.
Locking Pan and Tilt Positions
Before shipping the DL.1 fixture,
lock its pan and tilt in position so
the fixture does not move during
transit.
To lock the fixture:
1. Position the projector head as
shown in Figure 2-9 to pack
it in the road case.
2. Move the tilt lock peg to the
upper left (locked) position.
3. Pull the pan lock latch out
and move the fixture’s yoke
to slide it around the pole
located between the fixture
body and the bottom of the
yoke.
4. Release the pan lock, causing it to latch onto the pole.
5. Gently move the projector head and yoke to make sure both pan and tilt positions
are locked in place.
6. Place the DL.1 fixture in its provided road case for shipping.
Note:
You can optionally lock pan and tilt positions during operation in the event
the projected image needs to remain in a fixed position.
Lock Unlock

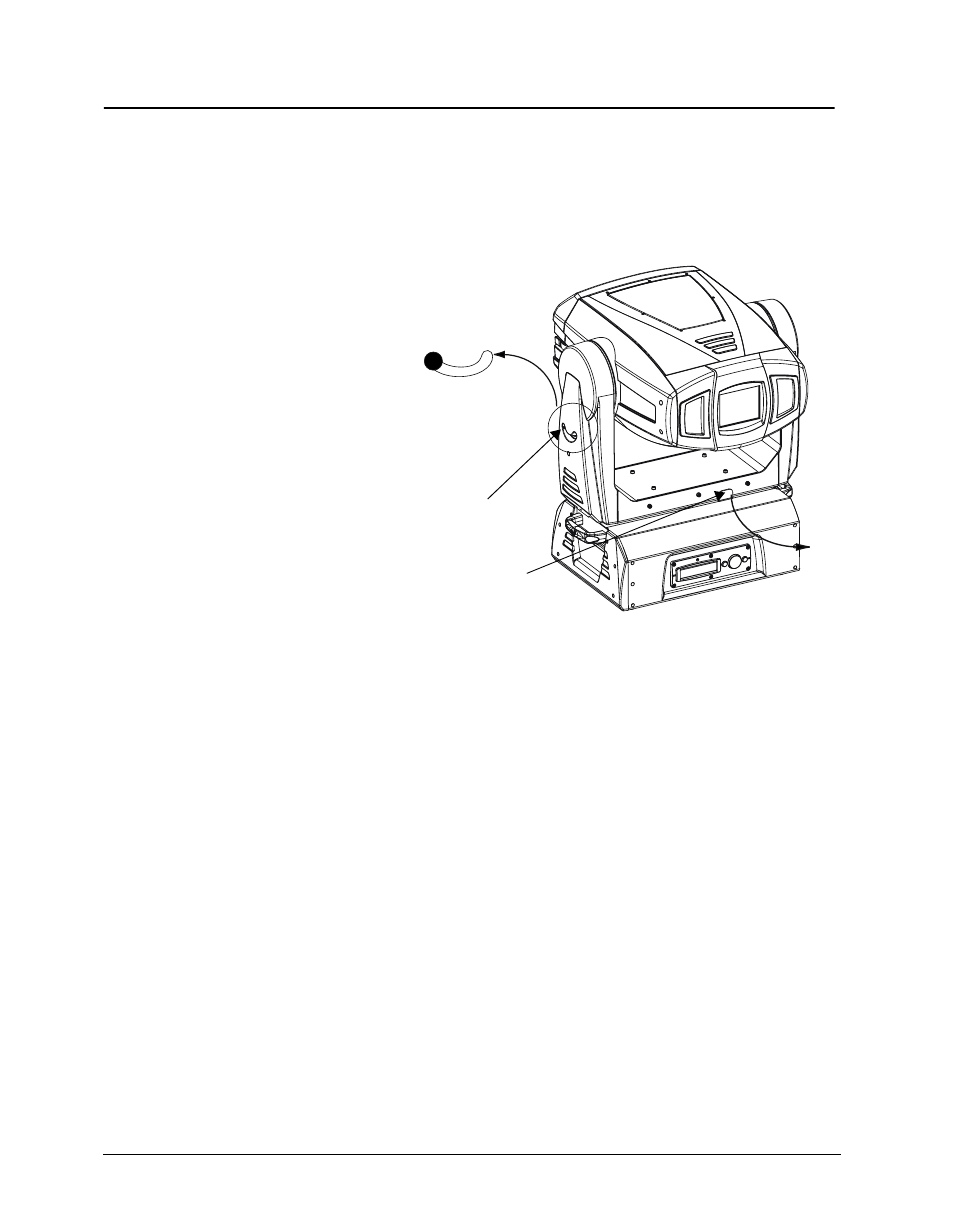

Figure 2-9 Pan and Tilt Locks
Tilt Lock
Pan Lock
