DL.1 User Manual Setup and Configuration 2-3
2
Only one set of connectors at a time is active. You can set the active connectors using
either the DL.1 menu system or the DMX protocol. To select an input, see “Menu
Map” on page 3-4 first.
Caution: Do not physically connect both the RGBHV and VGA connectors.
Doing so can cause damage to the fixture and void the warranty.

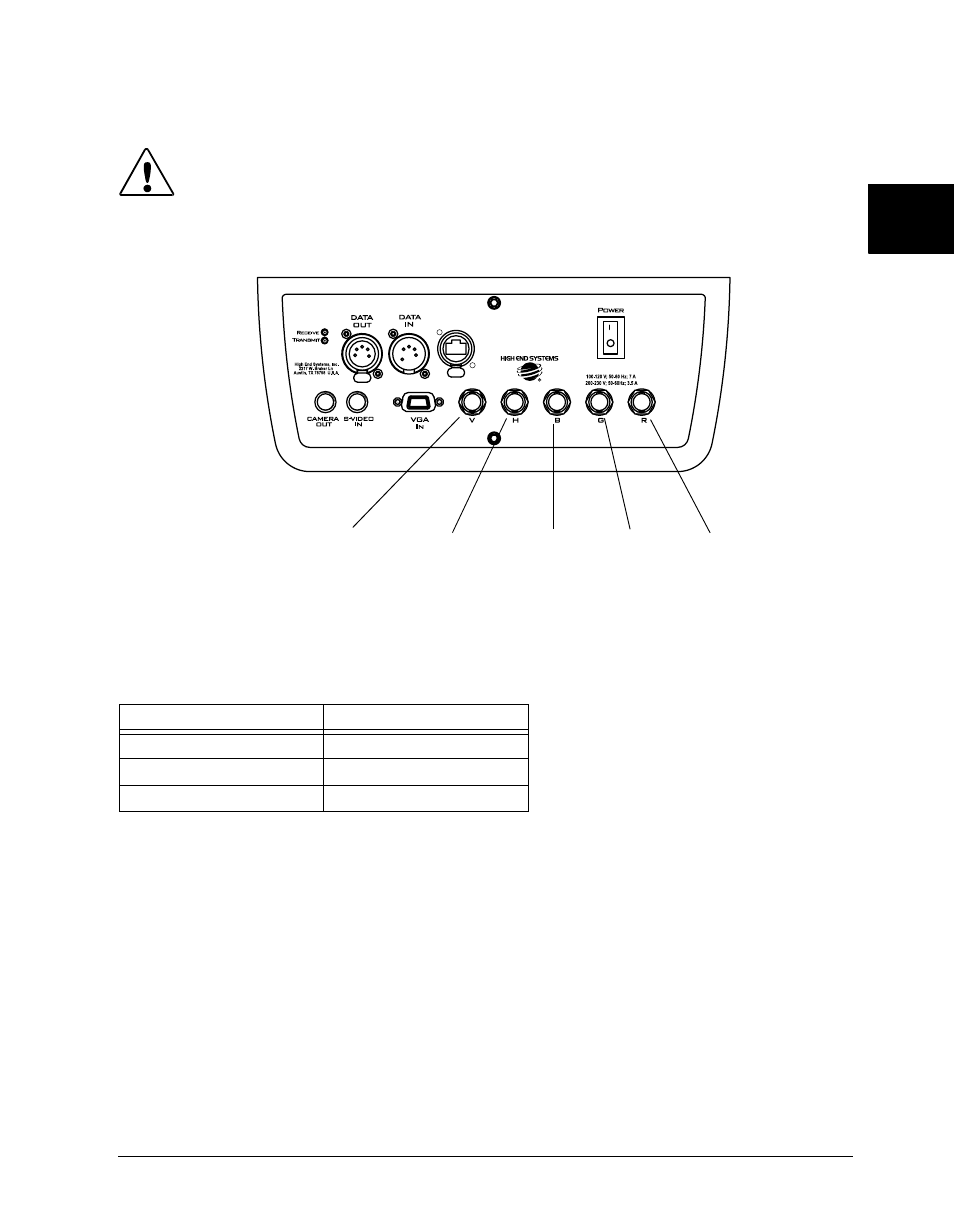

Figure 2-2 shows the RGBHV connectors in more detail:
The projector provided with the DL.1 fixture makes a distinction between inputs and
sources. Table 2-1 shows the relationship between DL.1 inputs and sources:
Table 2-1 DL.1 Inputs and Sources
Input Source
Input 1 Not used by DL.1
Input 2 RGBHV or VGA
Input 3 S-Video
Vertical sync Horizontal sync Blue Green Red
Figure 2-2 RGBHV Connectors
