Heat & Glo LifeStyle Collection • Twilight-II-B • 2108-900 Rev. G • 8/07 35
A
B
C
D
C
F
G
H
I
J
K
L
M
N
O
P
Q
R
E
INDOOR VIEW
ELECTRICAL
ACCESS
GAS LINE
ACCESS
OUTDOOR VIEW
Location Inches Millimeter Location Inches Millimeter
A 2-1/4 57 J 4-1/2 114
B 4-3/4 121 K 32-5/8 829
C 1/2 13 L 36-1/4 919
D 43 1091 M 41-7/8 1062
E 24 609 N 21-1/2 547
F 46-3/4 1187 O 38-5/8 981
G 40-3/4 1035 P 42-1/8 1070
H 3-3/8 86 Q 21-1/2 546
I 2-1/2 64 R 35-5/8 905

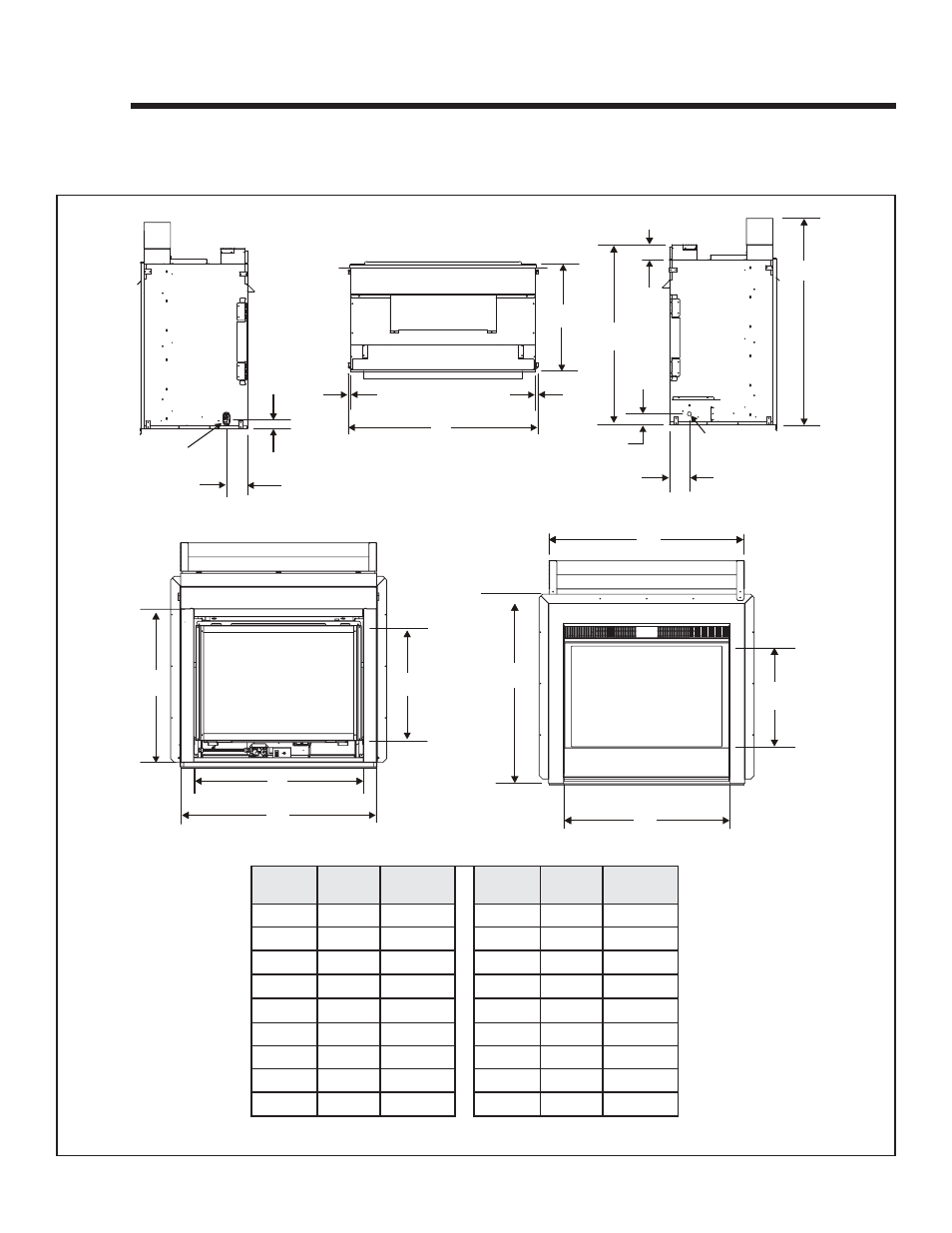

A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 3.
Figure 13.1 Appliance Dimensions
OUTDOOR
OUTDOOR
OUTDOOR
13 13
Reference Materials
