Heat & Glo LifeStyle Collection • Twilight-II-B • 2108-900 Rev. G • 8/07 25

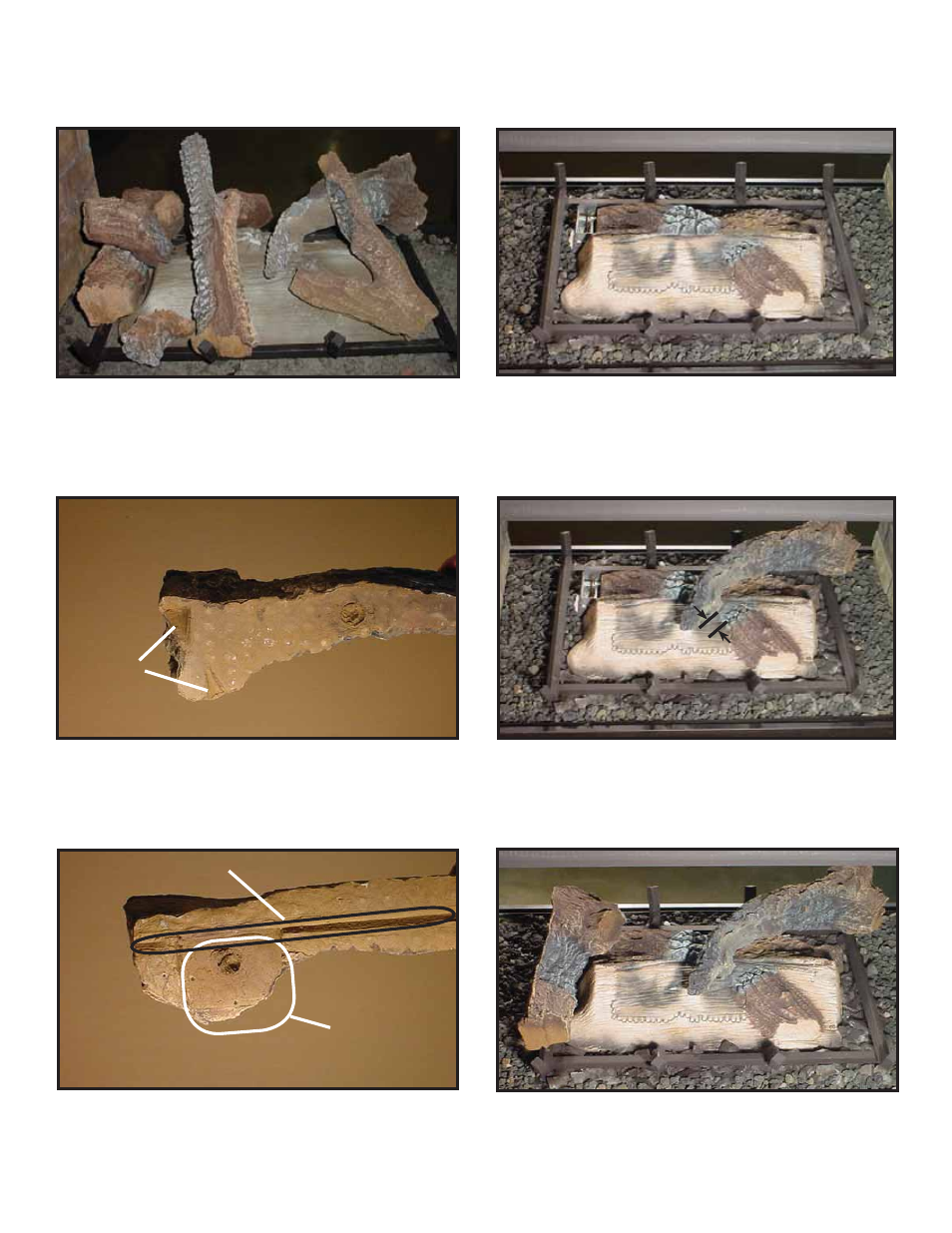

E. Positioning the Logs
Log Set Assembly: LOGS-TWI
1
2
CAUTION: Logs are fragile! Carefully remove the logs
from the packaging. Remove the metal supports which
held the log box in place during shipping.
STEP 2.
LOG #1 (SRV2005-701): Use the indents on the bottom side of the log to position the large end of the log onto
the grate tine as shown. Position the thin end of log #1 one inch from port pattern as shown.
STEP 3.
LOG #2 (SRV2005-700): Position log #2 on the left grate bar and the pilot assembly. Use the cut out notches
on the log to position it as shown.
STEP 1.
Before positioning the logs, refer to the instal-
lation manual for electric ember setup and ember place-
ment.
1
2
4
5
6
7
3
Indents
Pilot
Assembly
Cutout
Grate Bar Cutout
1-inch
1
