1740 SHDSL 2/4-Wire Router User’s Guide
Overload. When the number of private IP addresses is greater than the number of public IP addresses,
private IP addresses must share public IP addresses. The following parameters are used:
Start Private IP address- End Private IP Address: For example, 192.168.1.3- 192.168.1.22
Start Global IP Address- End Global IP Address: For example, 10.1.1.3-10.1.1.10

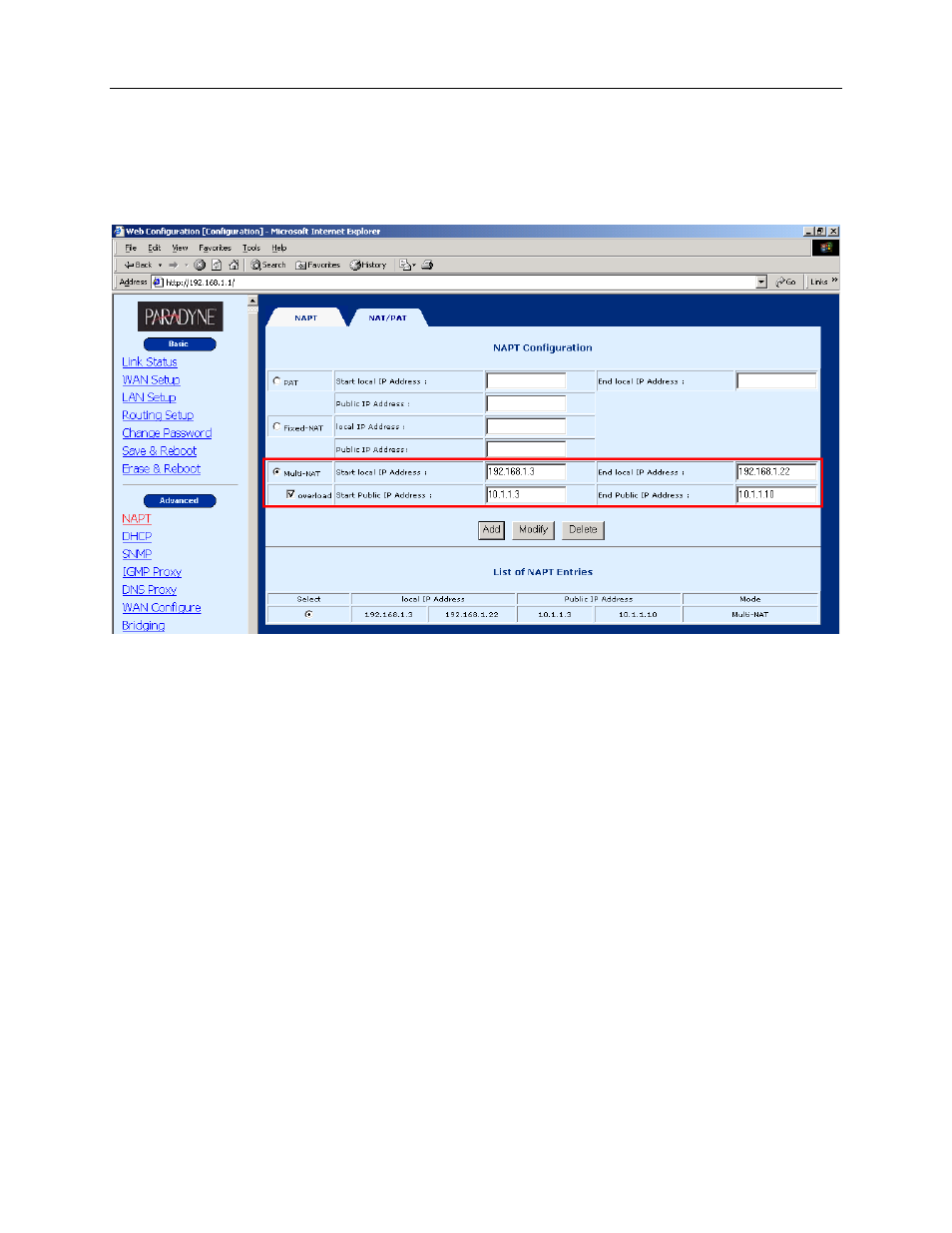

STEP 1: Fill out the above parameters in the relevant fields.
Start Private IP address: For example, 192.168.1.3
End Private IP Address: For example, 192.168.1.22
Start Global IP Address: For example, 10.1.1.3
End Global IP Address: For example, 10.1.1.10
STEP 2: Select Overload and click on the Add button.
1740-A2-GB20-10 September 2004 55
