1740 SHDSL 2/4-Wire Router User’s Guide
STEP 3: You can click on the Change & Reboot button to use the new IP address and reset the device
immediately. This does not require the Save action. Alternatively, you can click on the Change
button to use the new IP address, but you need to save the new setting before you reset the
router. After the IP address is changed, to be able to use the Web browser or Telnet, make sure
your PC’s IP address is set to the same network segment.

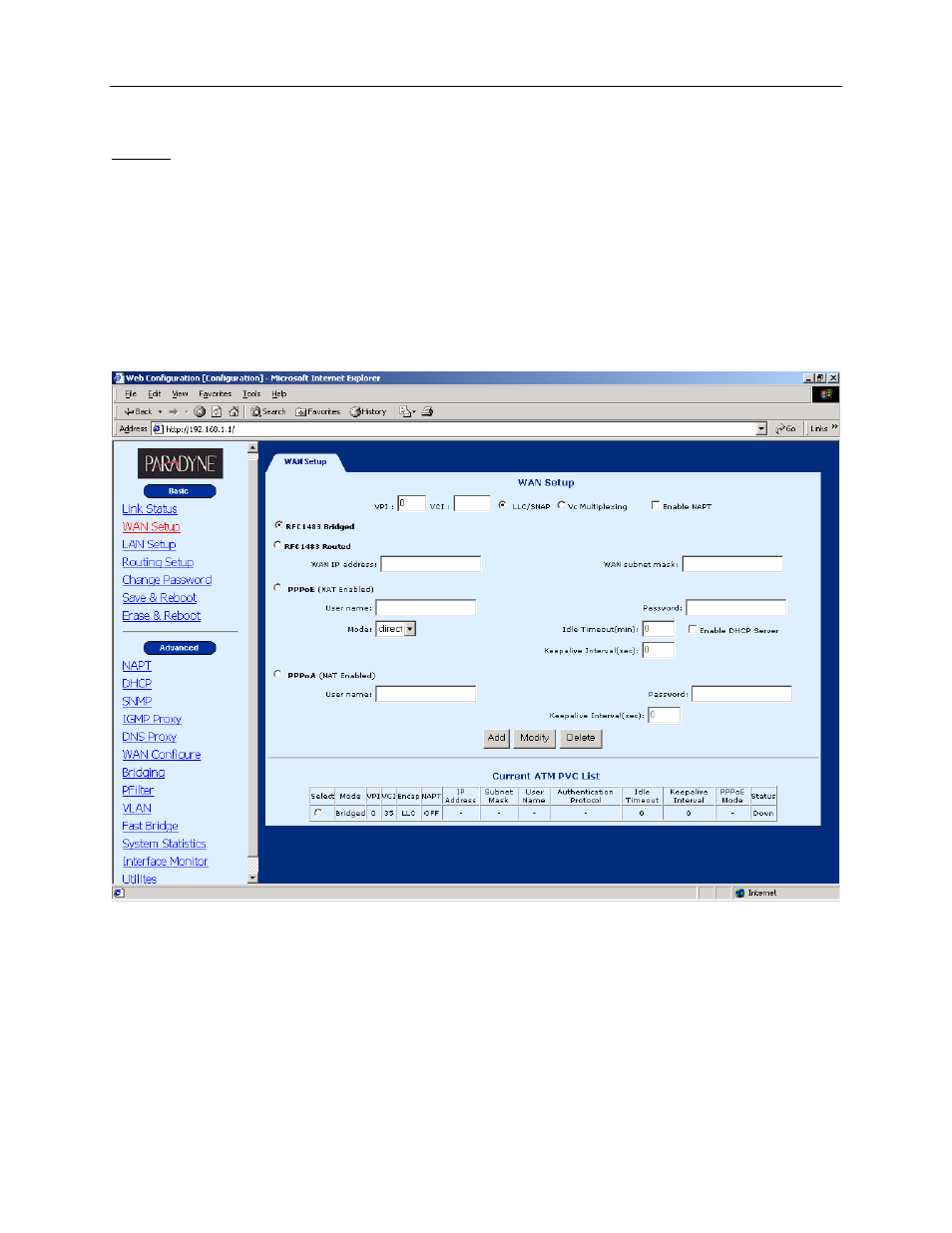

4.2 Configuring the WAN Interface
Click WAN Setup on the Basic menu bar and configure the VC to RFC 1483 Bridged, RFC 1483 Routed,
PPPoE, or PPPoA. To set up these services, refer to Section 3.2.
34 September 2004 1740-A2-GB20-10
