HP 1740 SHDSL - Manual (Page 29)

1740 SHDSL 2/4-Wire Router User’s Guide
Session Timeout: The console or telnet session will be terminated after this idle time. It is calculated in
minutes. Users need to re-log on to the device when the session times out. The default setting is zero,
which means the function is disabled.
3.6 Setting the Bridge
Click on Bridging on the Advanced menu bar to set up the static bridging and Spanning Tree Protocol
(STP) functions.

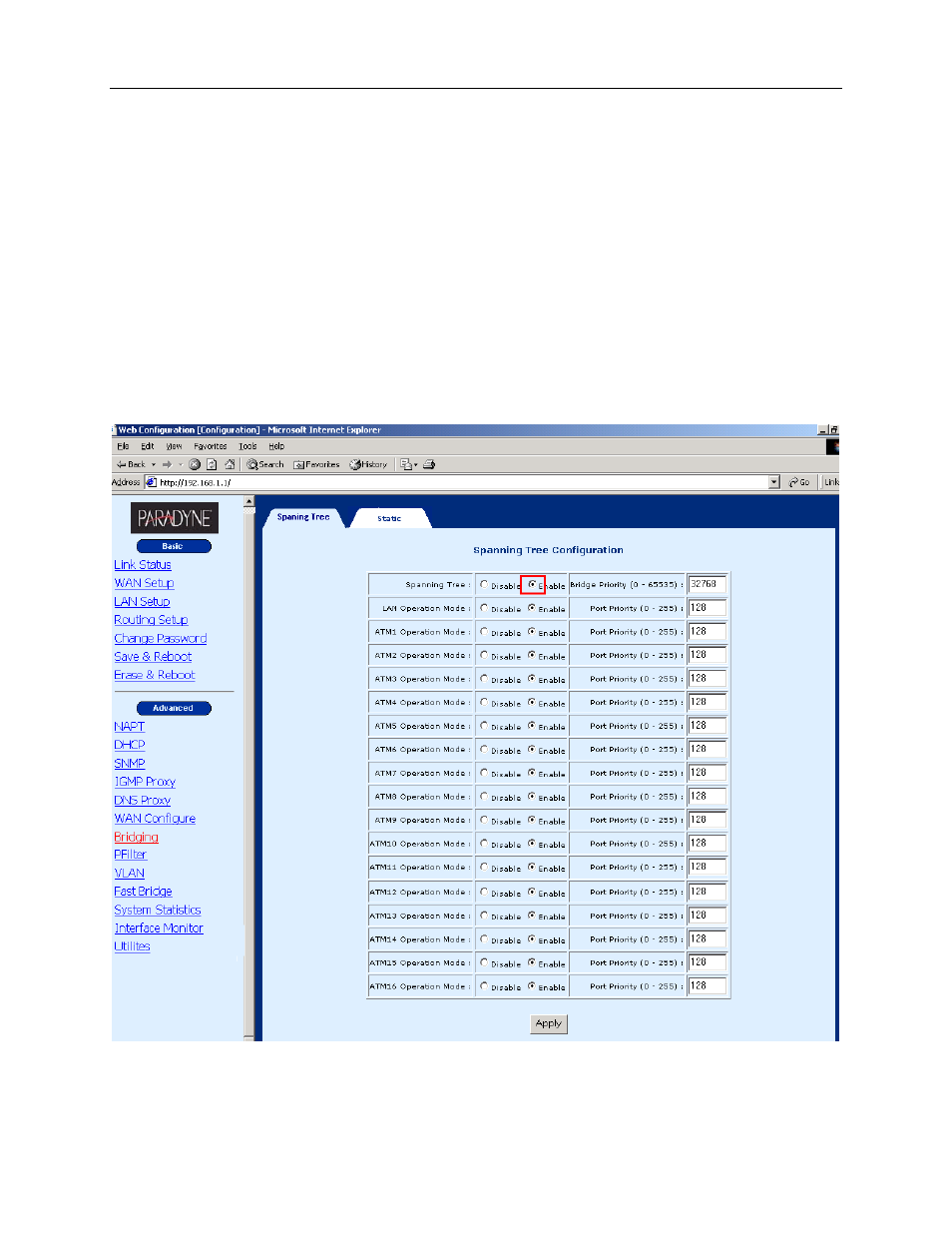

3.6.1 Spanning Tree Protocol
The STP function is disabled by factory default. To enable it, click Enable in the Spanning Tree field and
configure the interfaces on the screen. When the parameters are set up, click Apply to submit the
settings.
1740-A2-GB20-10 September 2004 29
