Component identification 8

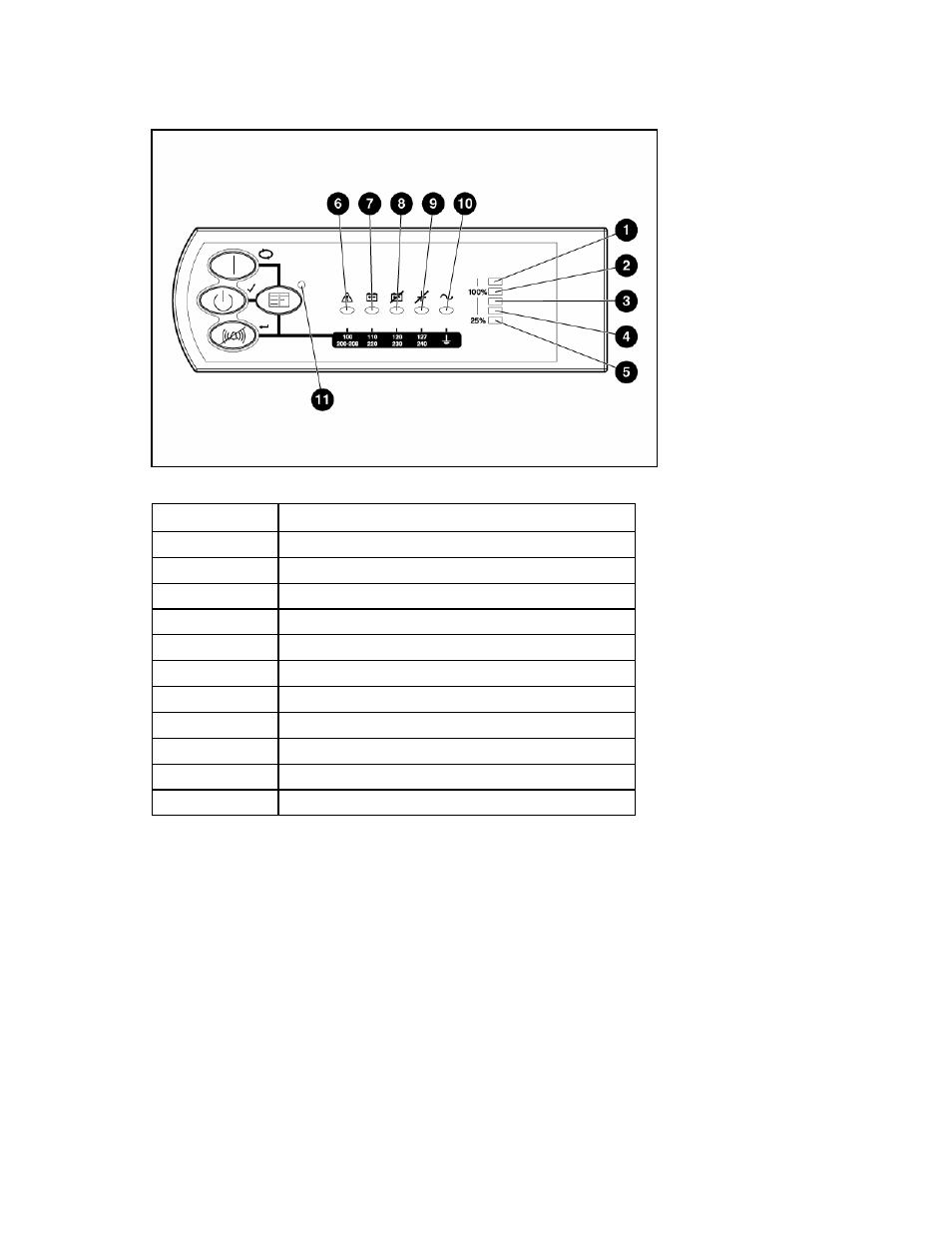

UPS front panel LED indicators

The front panel is shown with the bezel removed.

Item LED

description

1 Overload
2

76% to 100% load

3

51% to 75% load (2 ERMs)

4

26% to 50% load (1 ERM)

5

0% to 25% load (0 ERMs)

6 General

Alarm

7 On

Battery

8 Battery

Fault

9

Site Wiring Fault

10 Utility
11

Configure Mode On

For more information, see "LED and audible alarm troubleshooting (on page
