8

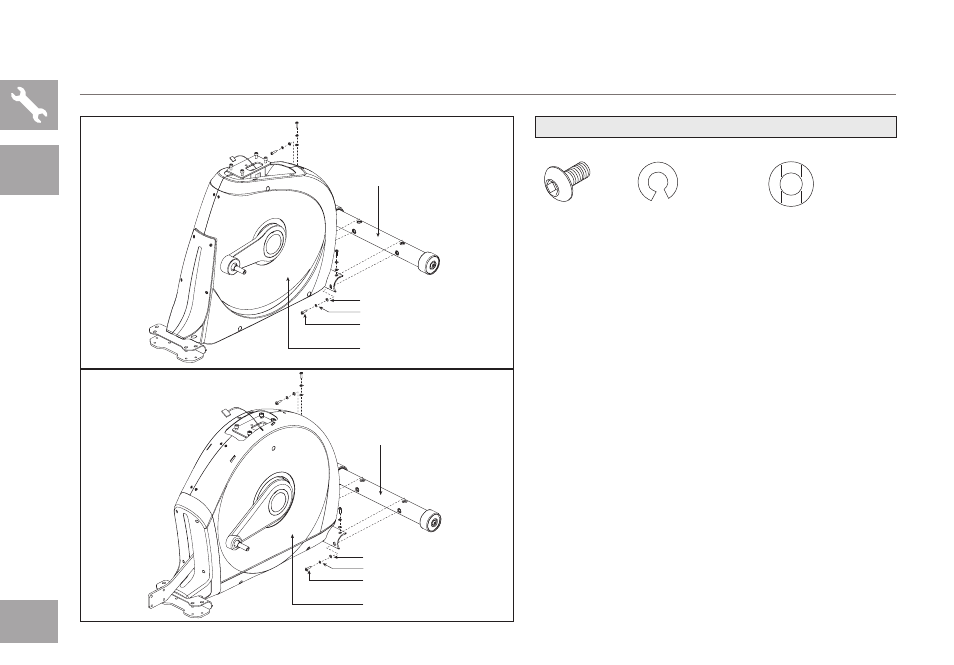

ASSEMBLY Step 1
A Open hardware bag 1.
B Attach the stabilizer tube to the main
frame using 4 bolts (a), 4 spring
washers (b) and 4 arc washers (c).
BOLT (A)
30 mm
Qty: 4 SPRING WASHER (B)
15 mm
Qty: 4 ARC WASHER (C)
17 mm
Qty: 4
HarDWare BaG 1 CONTENTS :
BOLTS (A)
SPRING WASHERS (B)
ARC WASHERS (C)
STABILIZER TUBE
MAIN FRAME
BOLTS (A)
SPRING WASHERS (B)
ARC WASHERS (C)
STABILIZER TUBE
MAIN FRAME
all
MoDelS
eX-58 SHoWn
eX-78 SHoWn
