12

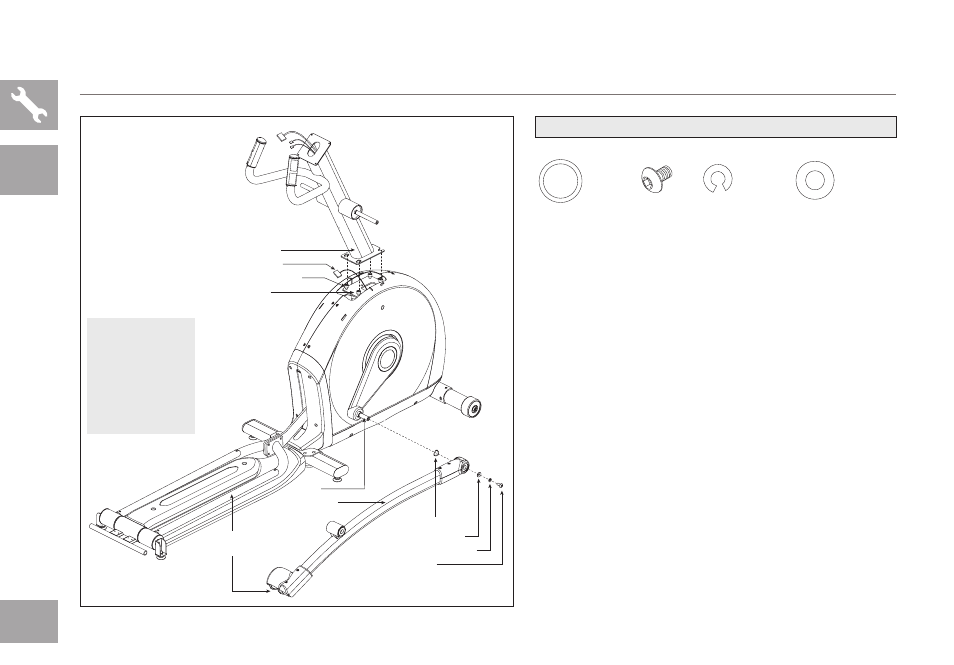

ASSEMBLY Step 3
all
MoDelS
eX-78 SHoWn
BOLT (M)
SPRING WASHER (B)
FLAT WASHER (K)
WAVY WASHER (L)
PEDAL ARM
CRANK
PEDAL ARM WHEEL
GUIDE RAIL
CONSOLE MAST
PRE-INSTALLED BOLTS
CONSOLE CABLE
MAIN FRAME
NOTE: Be
careful not
to pinch any
wires while
attaching the
console mast.
A Open hardware bag 3.
B Carefully pull the console cable through
the console mast using the twist tie located
inside the console mast.
C gently slide the console mast onto the
main frame and attach console mast to
main frame using pre-installed bolts.
D Slide wavy washer (l) over crank
followed by pedal arm as shown. Rest
pedal arm wheel on guide rail.
E Attach the pedal arm to the crank using 1
flat washer (k), 1 spring washer (b)
and 1 bolt (m).
F Repeat steps E–F on the opposite side of the
elliptical.
BOLT (M)
20 mm
Qty: 2 SPRING WASHER (B)
15 mm
Qty: 2 FLAT WASHER (K)
20 mm
Qty: 2 WAVY WASHER (L)
22.5 mm
Qty: 2
HarDWare BaG 3 CONTENTS :
