WATER
BOTTLE
HOLDER
CONSOLE MAST
CONSOLE MAST BOOT
SCREW (S)
SCREWS (S)
TOP CAP
CE5.1
EX-58

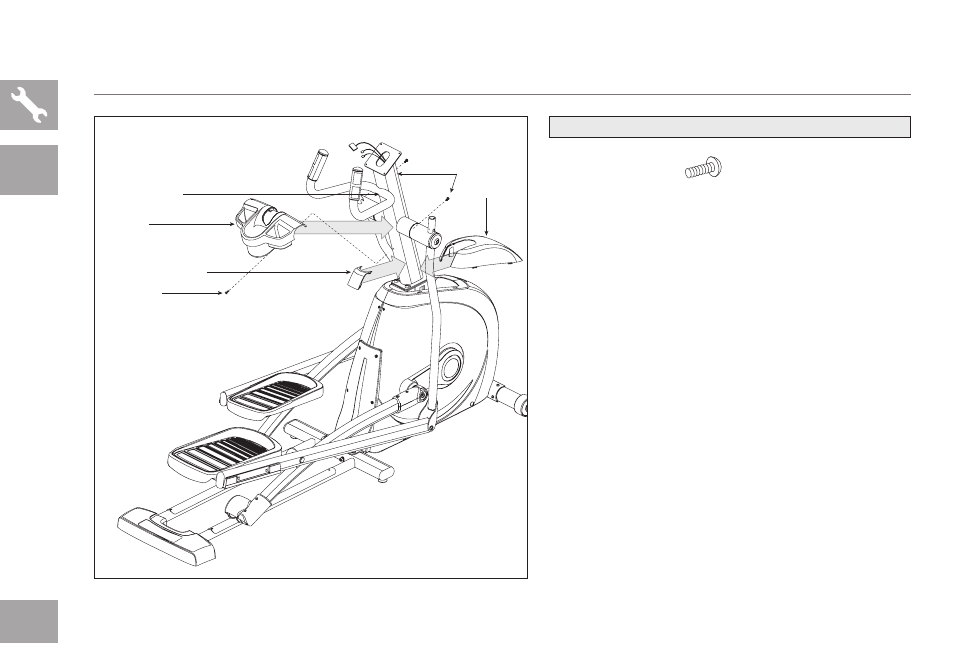

eX-58, ce5.1 ASSEMBLY Step 7
* This step is for CE5.1 and EX-58 models only.
* EX-68, EX-78, gS1050E models skip to next page.
A
Open hardware bag 7.
B
Silde top cap over console mast and
snap into place.
C
Insert console mast boot over top cap
and snap into place.
D
Slide water bottle holder over
console mast and attach using 3
screws (s).
HarDWare BaG 7 CONTENTS :
SCREW (S)
12 mm
Qty: 3
