Horizon Fitness GS1050E - Manual (Page 15)

15
EX-68
EX-78
gS1050E

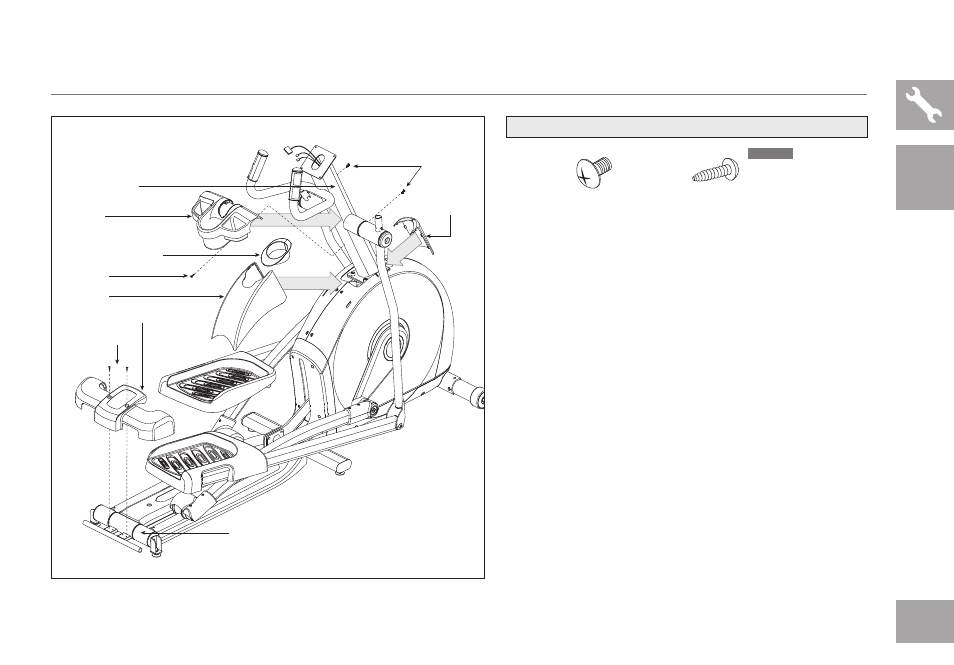

eX-68, eX-78 ASSEMBLY Step 6
* This step is for EX-68, EX-78, gS1050E models only.
* CE5.1 and EX-58 models skip to next page.
A Open hardware bag 6.
B Silde top cap and top cap rear cover
over console mast and snap into place.
C Slide console mast boot around
console mast and insert into top cap.
D Slide water bottle holder over
console mast and attach using 3 bolts
(r).
EX-78 only:
E Slide rear cap over rear stabilizer
and attach using 2 screws (q).
BOLT (R)
12 mm
Qty: 3
EX-78 only:
SCREW (Q)
15 mm
Qty: 2
HarDWare BaG 6 CONTENTS : eX-78 SHoWn
WATER
BOTTLE
HOLDER
CONSOLE MAST
CONSOLE MAST BOOT
TOP CAP
BOLT (R)
SCREWS (Q)
REAR CAP (EX-78 ONLY)
BOLTS (R)
TOP CAP
REAR
COVER
REAR STABILIZER
