LEDs
The RPS LEDs are located on the back of the RPS/EPS. These LEDs are

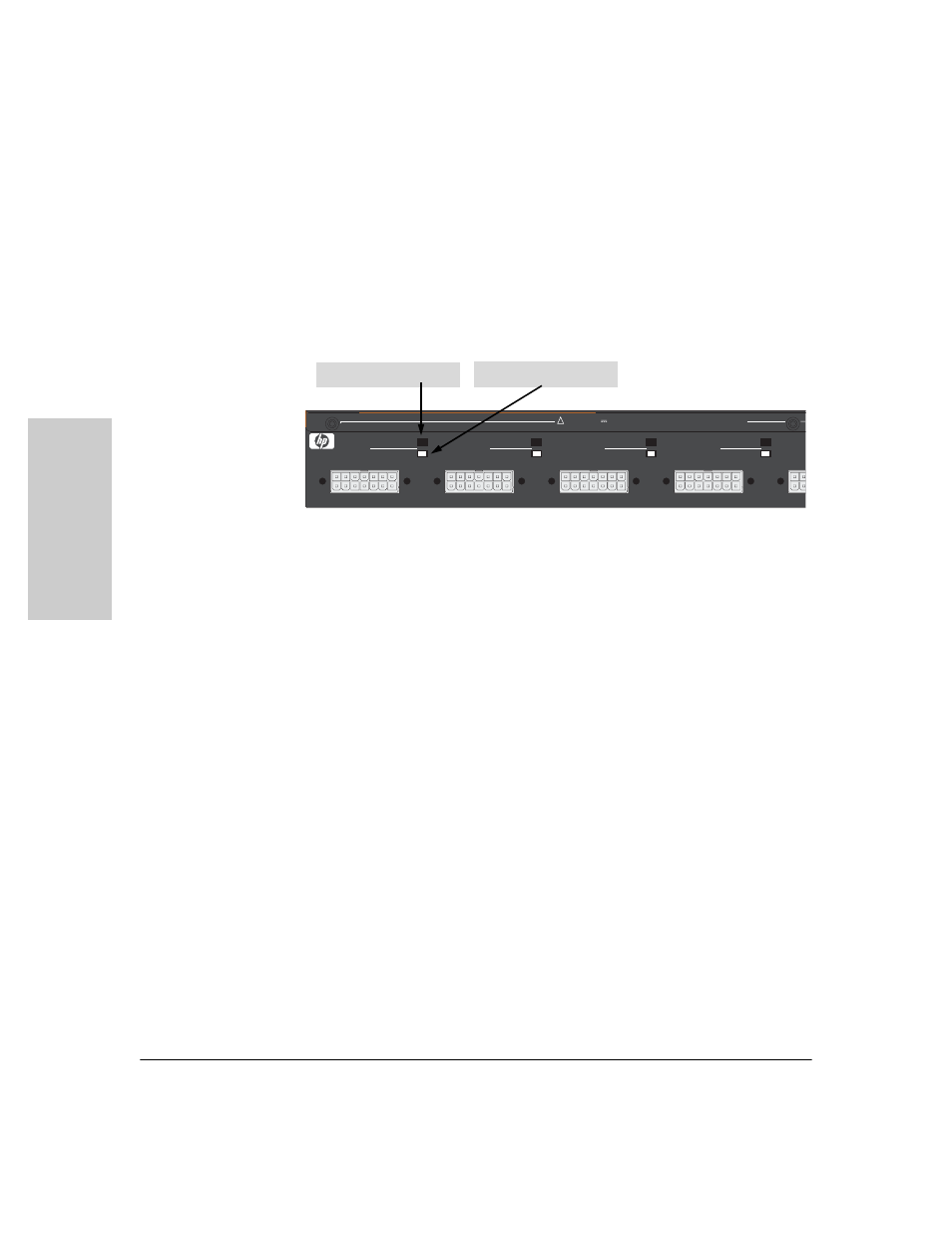

duplicated on the front of the device. The following graphic shows an example
of the back of the RPS/EPS. There are two green LEDs for each RPS port:
■
Device Connected
■
Power Status
The following states provide status of an RPS/EPS port.
Fault Device
Connected
Power
Status
Message
Off
Off
Off
Nothing Connected
On or Off
Off
On
Not a valid state - should never happen
Off
On
Off
Switch is connected, RPS is available but
not required
Off
On
On
RPS is powering the connected device
Blinking
Off
Blinking
RPS port is in fault mode
Off
On
Blinking
Switch is requesting power, RPS can not
provide it
Blinking
On
Off
Switch is unplugged, but RPS is powering
switch
Device Connected LED
Power Status LED
Device Connected
Power Status
R1
R2
R3
R4
RPS 1
RPS 2
RPS 3
RPS 4
RPS Power: 12V backup to one connected device. Lowest-numbered port has priority.
!
ProCurve 600 RPS/EPS
(J8168A)
