3 - Installation
22
Location

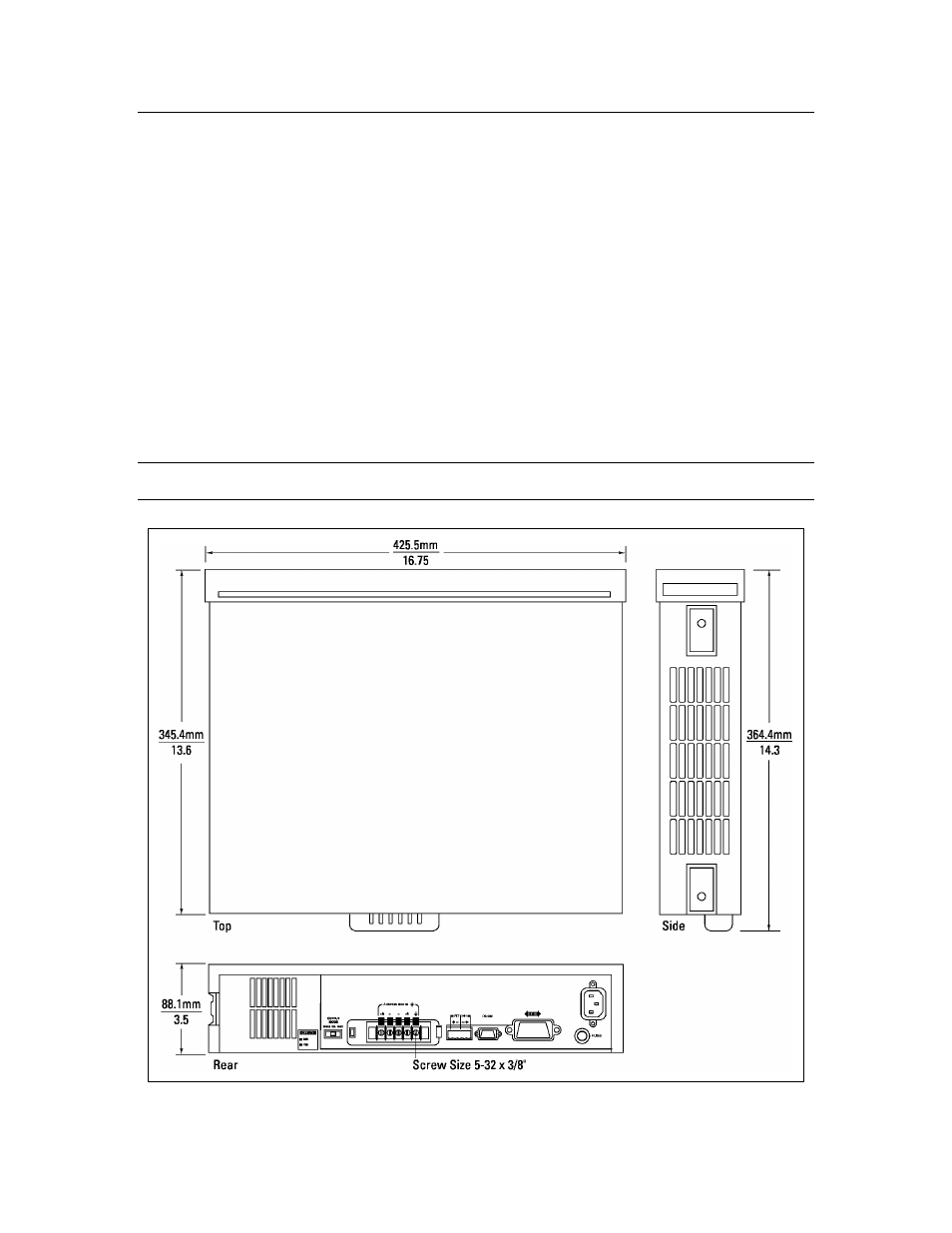

The outline diagram in figure 3-1 gives the dimensions of your dc source. The dc source must be
installed in a location that allows sufficient space at the sides and back of the unit for adequate air
circulation (see Bench Operation).
Bench Operation
A fan cools the dc source by drawing air in through the sides and exhausting it out the back.
Minimum clearances for bench operation are 1 inch (25 mm) along the sides. Do not block the fan
exhaust at the rear of the unit.
Rack Mounting
The dc source can be mounted in a standard 19-inch rack panel or cabinet. Table 2-1 documents
the HP part numbers for the various rack mounting options that are available for the dc source.
Installation instructions are included with each rack mount option.
NOTE:
Support rails or an instrument shelf is required when rack mounting units.
Figure 3-1. Outline Diagram
