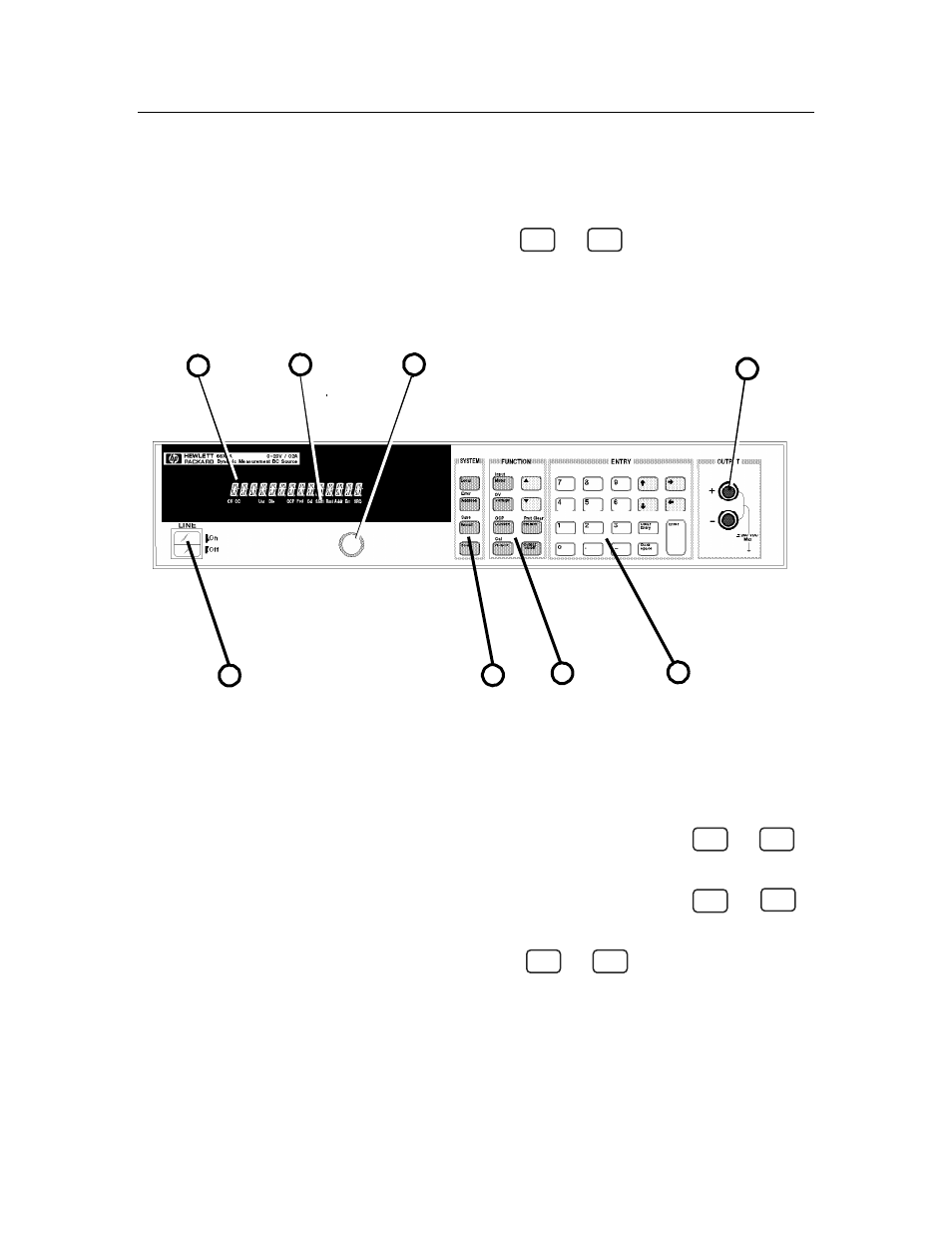

The Front Panel - At a Glance
j
14-character
display shows output
measurements and
programmed values.
k
Annunciators
indicate operating
modes and status
conditions.
l
Rotary control
sets voltage, current,
and menu parameters.
Use and
to set the resolution;
then adjust the value
with the knob.
m
Optional front panel
output connectors.
5 6 7 8
1 2 3
4
n
Turns the dc source
on and off.
o
System keys:
♦
return to Local
mode
♦
set the HP-IB
address
♦
set the RS-232
interface
♦
display SCPI
error codes
♦
save and recall
instrument states.
p
Function keys:
♦
enable/disable
output
♦
select metering
functions
♦
program voltage
and current
♦
set and clear
protection
functions
♦
and
scroll through the
front panel menu
commands.
q
Entry keys:
♦
enter values
♦
increment or
decrement values
♦
and
select front panel
menu parameters.
♦
and
select a digit in
the numeric entry
field.
