Specifications

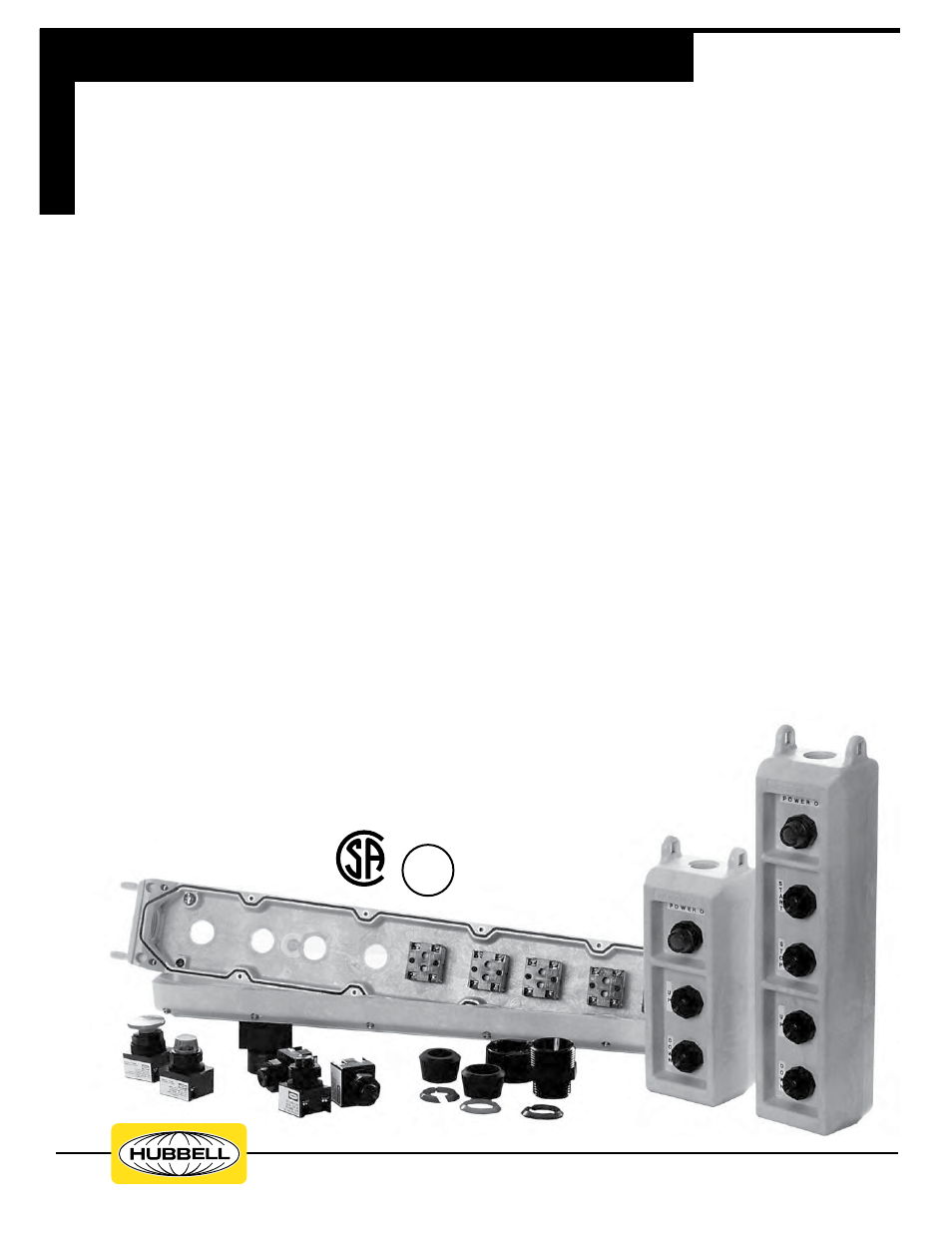

Euclid ™ PBM Pendant Pushbutton Stations
440/428-1161 • Fax 440/428-7635
The Multi-Purpose PBM Pen-
dant Pushbutton Stations have
been designed to use 22mm
NEMA 4X pushbutton ele-
ments to provide full flexibility.
Spacing of the mounting holes
will permit enlarging the hole
to install the larger 30mm
pushbutton elements if de-
sired. Each enclosure is pro-
vided with a full complement
of standard self-adhesive
nameplates to meet most pen-
dant pushbutton applications.
The multiple screws used for
fastening the front and back
portions of the enclosures pro-
vide rigidity to the enclosures
for added strength to with-
stand operational abuse and
provide a watertight seal.
• Light Weight, Rugged
Molded Enclosures,
“Safety Yellow.”
• Molded-in Stainless Steel
hanger brackets for exter-
nal strain-relief cable. Pro-
visions for internal strain
relief are also provided.
• Five Enclosure sizes, 3 to
11 button with provision
for single function option
— pilot light, selector
switch, push-pull unit, etc.
• Enclosures gasketed for
NEMA 4X rating; Water-
tight, Dust-tight, Corrosion
Resistant.
• Enclosure arranged for
internal grounding screw.
• Optional Connector Kits:
3 ⁄
4
" NPT (19mm) for 2
and 4-button enclosures
1" NPT (25mm) for 6, 8,
and 10-button enclosures
• 22mm NEMA 4X push-
button elements available
from stock.
• Optional Mechanical
Interlocks
Application
PBM Pendant Pushbutton Stations
are designed for control of electri-
cally powered industrial equip-
ment such as electric overhead
traveling (E.O.T.) cranes or hoists
where one to five speed motors
are used. The lightweight ergo-
nomically designed enclosures fit
comfortably into an operators
hand and yet are built using a
polymer selected to resist shock.
Standard indicator plate mark-
ings (self-adhesive) are included
with each enclosure, but spe-
cial nameplates or markings
can be provided.
Select standard 22mm
NEMA 4X contact elements
from tables or specify the type
required for your completed
control station.
Specifications
Enclosures:
• Enclosures are rated
NEMA 3, 3R, 4, 4X
when equipped with
Hubbell PBM NEMA 4X
inserts and Hubbell Cord
Connector Kits or compa-
rable approved devices.
Contact Ratings:
• NEMA A600 & A300 AC
• NEMA P300 &
R300 DC
HUBBELL
Cord Connector Kits:
• 3 ⁄
4
" NPT Corrosion Resistant
Nylon for cable diameter 5 ⁄
8
"
to 7 ⁄
8
" (15.7mm to 22.2mm)
• 1" NPT Corrosion Resistant
Nylon for cable diameters 7 ⁄
8
"
to 1 1 ⁄
8
" (22.2mm to 28.6mm)
Operators:
• 22mm NEMA 4X Elements
• Neon Pilot Lights, 120V,
60 Hz, Red, Green, Amber
• Incandescent Pilot Lights,
120VAC/DC; 250VDC;
Red, Green, Amber
• Extended Pushbuttons,
1 speed, NO/NC con-
tacts, Red, Green, Black
• Extended Pushbuttons,
2 speed, Black
• Mushroom Head
Pushbuttons, 1 speed,
NO/NC contacts, Red,
Green, Black
• 2 and 3 position Selector
Switches
UL
®
