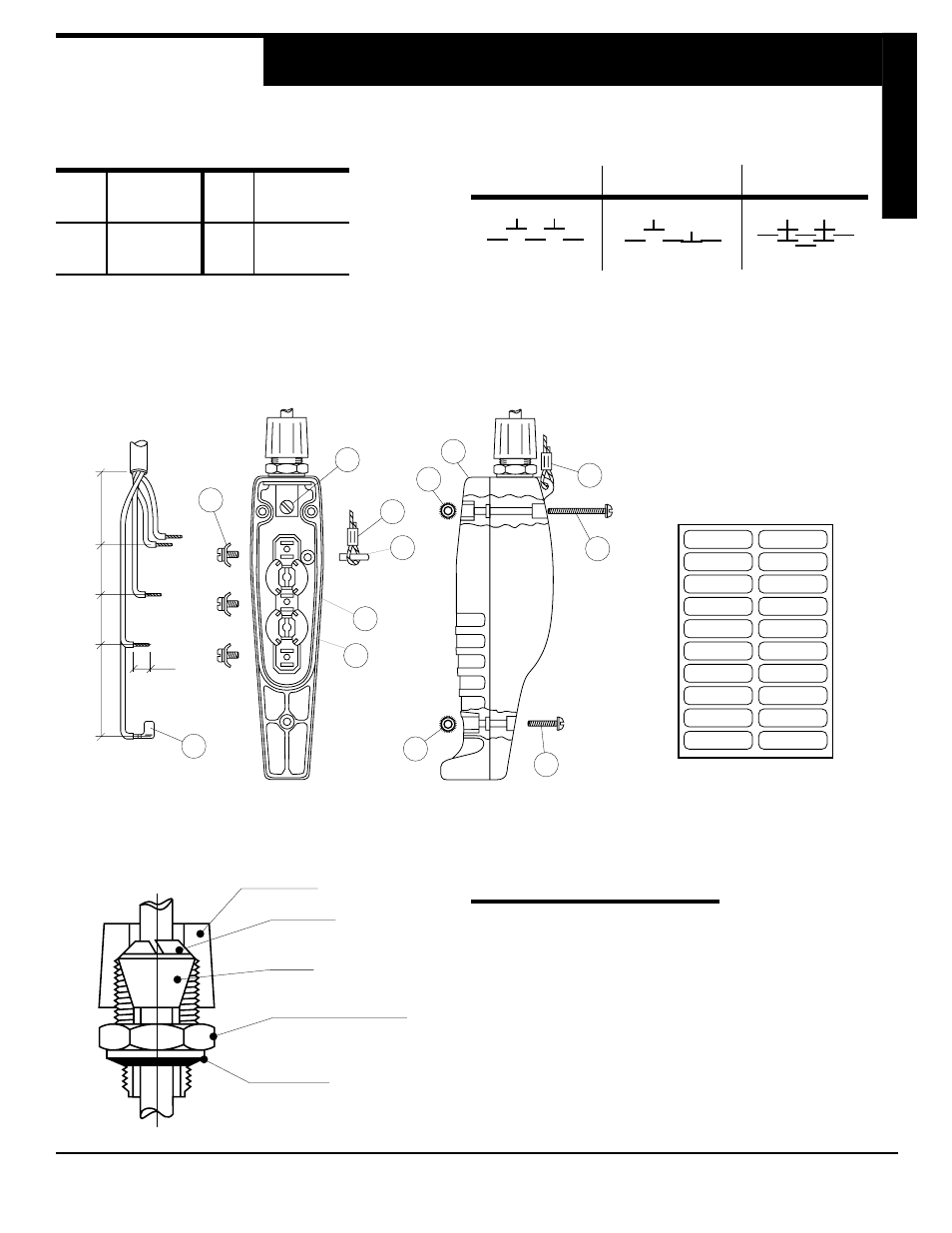

Compact Assembly Parts List
Part
No. Qty. Assembly Parts Listing
1 1 Front Housing
2 1 1 ⁄
2
" NPT Locknut Gnd. Brkt.
3 3 Terminal Clamps
4 1 Pin *
5 1 Crimp Sleeve *
6 1 Gasket
7 1 Rear Housing
8 3 #8-32 Hex Nut
9 2 #8-32 x 1 3 ⁄
4
" Lg. R.H.M.S.
10 1 #8-32 x 1" Lg. R.H.M.S.
11 1 Button Labels (not shown)
12 1 90° Terminal (Two-Speed Only)
* Discard items no. 4 and 5 if not used as shown.
N/O 1 2nd
Speed
N/O 2
Ta
b
Bott. To
p
N/O 1 Com. N/O 2
Ctr
.
Bott. To
p
N/O 1 Com. N/C 1
Ctr
.
Bott. To
p
1⁄2" NPT Connector Housing
(Max. Torque 50 In.-Lbs.)
Bushing
(0.37"–0.50" or 0.50"–0.62")
Sealing Washer
(UL Listed for hand tightening)
Gotcha Ring
(Blue: 0.37"–0.50" or
Brown: 0.50"–0.62")
Connector Cap
Cord Connector Kit Assembly
Wiring Diagrams
Single – Speed † Momentary (on/off) Two – Speed †
† Single-speed and two-speed stations are mechanically interlocked to
prevent actuating both buttons simultaneously.
Compact
Pendant
Assembly
6
8
8
9
5
10
12
3
4
5
2
1
Internal Strain
Relief
External Strain
Relief
Ground Screw
(green)
Insure gasket is
seated properly.
Crimp
7
Cord Connector Kit
not included.
2.5"
1.5"
1.5"
2.0"
.4"
Cable Stripped Length
Contact Ratings –
Single Break
Single Speed Two Speed
AC
DC
NEMA
A300
NEMA
P300
* OSHA limits pendant voltage to 150VAC or 300VDC
120V
240V* 6A
3A
125V
250V 1.1A
0.55A
AC
DC
NEMA
B300
120V
240V* 3A
1.5A
125V
250V —
—
Label Pack
UP
ON
IN
FWD
RIGHT
RAISE
START
OPEN
NORTH
EAST
DOWN
OFF
OUT
REV
LEFT
LOWER
STOP
CLOSE
SOUTH
WEST
