Hubbell Industrial Controls, Inc.
4225
Specification
February 2006
Repl.: Nov. 1986
Schedule E5

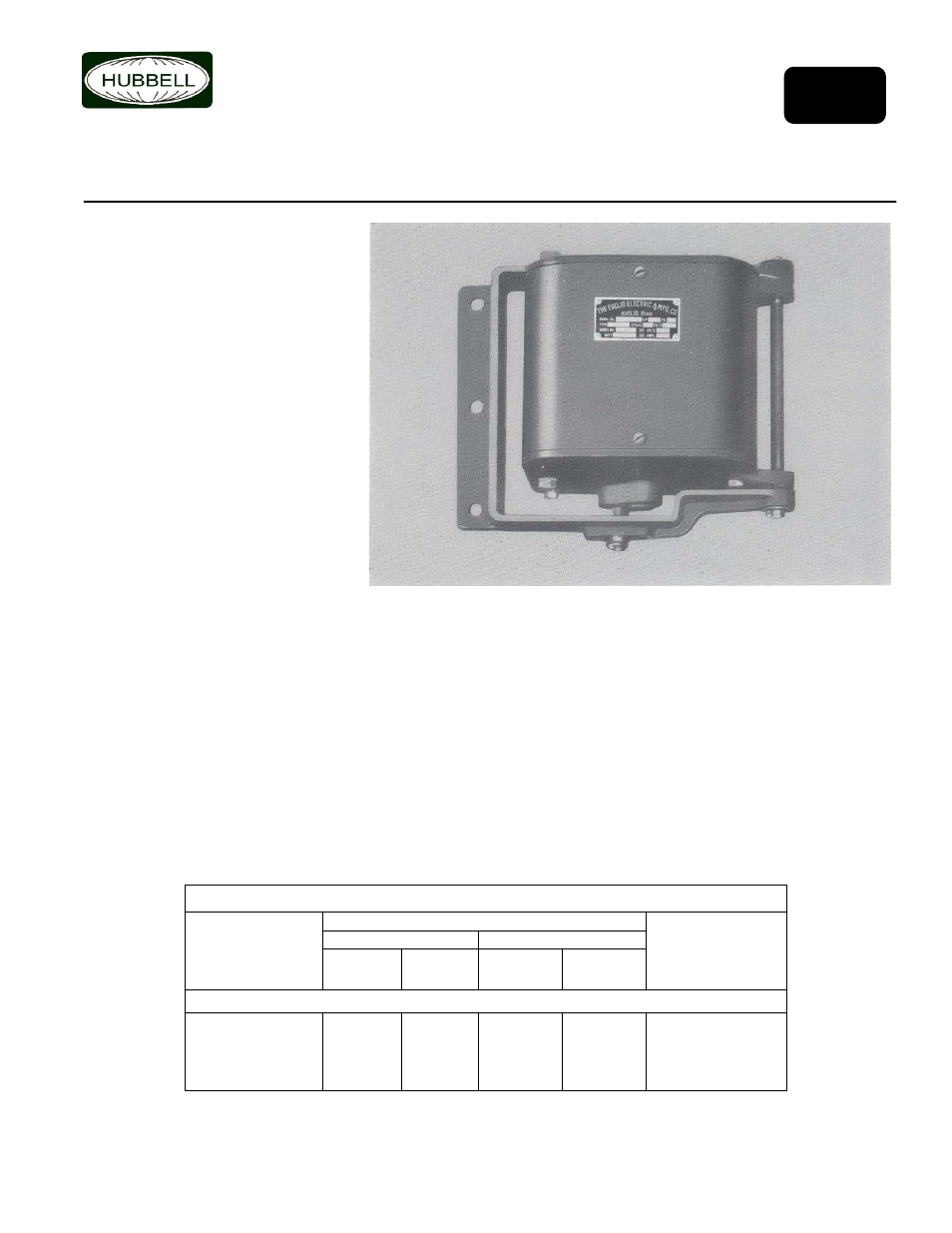

QUICK BREAK POWER LIMIT SWITCH
General Information
Euclid quick break limit switches for
hoists are normally closed by the
weight of the striking lever. The
movement of the lever on its upward
travel, when engaged by the hoist
hook block on its upward travel,
causes the switch to quickly break the
circuit to the motor with very little up-
ward movement of the crane hook.
The switch is automatically reset by
the weight of the striking lever when
the hook is lowered.
♦ NEMA & CEMA ratings 1, 3, 4, 9
general purpose, weather proof, wa-
tertight, explosion-proof enclosures.
♦ Mill duty construction.
♦ Reversible finger tips and seg-
ments for longer life.
♦ Easy maintenance and access to
fingers, contact tips, drum segments
and tension springs.
♦ Moving and stationary contacts
are made from hard drawn copper.
♦ Automatic reset.
Application
Euclid quick break hoist limit switches
are used with reversing drum and
magnetic controllers on cranes and
hoists, either as a main line limit
switch or as a pilot circuit limit switch
to operate magnetic contactors in
main line motor circuits.
Description
There are two general types of main
line limit switches - - - the standard
and the plugging type. The plugging
limit switch utilizes the motor to stop
the upward travel by plugging the mo-
tor when the limit switch is tripped.
This is accomplished by the switch
quickly reversing two lines of the mo-
tor, plugging it to a stop and then low-
ering the hook until the limit switch
resets. Some motors require plugging
resistors when such a limit switch is
used. Consult our representative or
the factory for recommendations on
such applications.
All switches in the line are furnished
with reversible finger tips that can be
easily replaced. The drum segments
are easily replaced. Both the finger
tips and segments are made of hard-
drawn copper. Tension is maintained
on the fingers by means of high quality
tension springs that are easily re-
placed.
AC & DC HOIST MOTOR APPLICATIONS
MAXIMUM HORSEPOWER RATINGS
AC DC CATALOG
NUMBER 220
VOLTS
440-550
VOLTS
115
VOLTS
230
VOLTS
NO.
OF
POLES
NON-PLUGGING DUTY
4225-LS-900
4225-LS-1950B
4225-LS-312
3
10
25
3
10
25
1
2.5
5
2
5
10
3
3
3
