Euclid™ pbp pendant pushbutton stations

background image

INSTRUCTIONS

2020

Publication No. 132

January 1985

Hubbell Industrial Controls, Inc.

Repl.: January 1984

EUCLID™ PBP PENDANT

PUSHBUTTON STATIONS

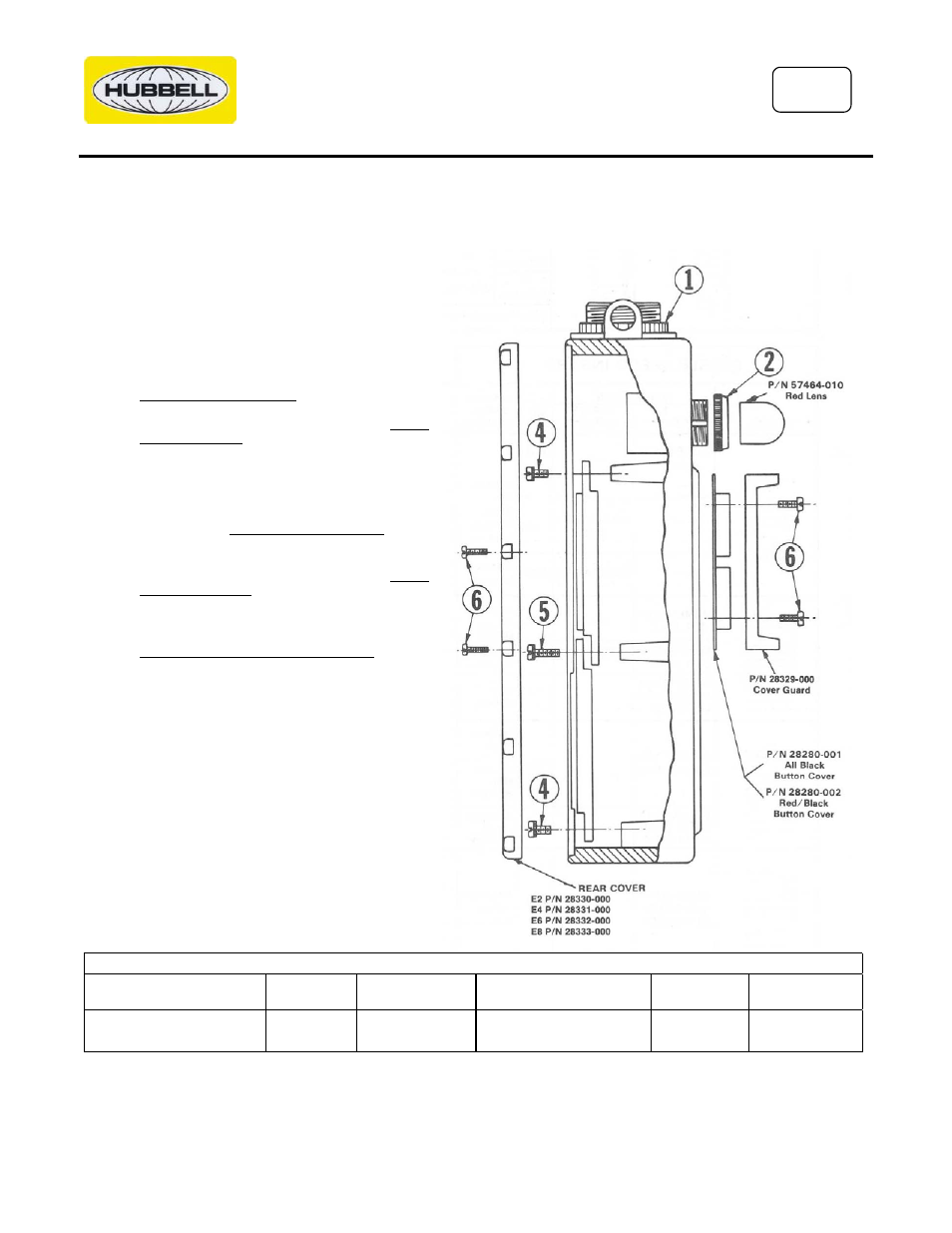

ASSEMBLY AND PARTS INFORMATION

Step #1 Position hanger bracket (Item 1) as required and

tighten locking nut 1/3 turn past finger tight.

Step #2 Pilot light assembly (Item 2) if used -- push out plug

(P/N 28338) from rear. Insert light assembly. Insert
pilot light legend plate. Install locking ring.

Step #3 *Install button assembly (not Pictorially shown).

Align keying tabs and holes and press push button
assembly into terminal boards. Tighten hold down
screws. (Not used on MS2 & MS5). AVOID
OVERTIGTENING

Step #4 *Install terminal board with button assembly working

from top to bottom. Use 8-32 x 1/2" (P/N 47661-
098) "sems" screws (Item 4) where single thickness
terminal board is fastened. Observe "Top" marking
on each board. AVOID OVERTIGHTENING

Step #5 *Use 8-32 x 5/8" (P/N 47661-100) "sems" screws

(Item 5) where two terminal boards overlap. AVOID
OVERTIGHTENING

Step #6 Use 8-32 x 1/2" (P/N 47243-059) pan head screws

(Item 6) to install button guards and back cover.
CAUTION: DO NOT OVERTIGHTEN THESE
SCREWS. Recommended torque is 10 in. lbs. To
12 in. lbs. Maximum. A slight rubber bulging is
allowed.

* Where direct wired push buttons are used,
Steps #3, #4, & #5 do not apply.

PILOT LIGHTS

DESCRIPTION

CATALOG

NUMBER

LAMP

PART NO.

DESCRIPTION

CATALOG

NUMBER

LAMP

PART NO.

Pilot Light 120v 60 Hz AC
Pilot Light 240v 60 Hz AC

PL1
PL2

57465-015
57465-015

Pilot Light 120V DC
Pilot Light 240v DC

PL3
PL4

57465-043
57465-007
