Replacement Parts
Hubbell Industrial Controls, Inc. • 4301 Cheyenne Drive, Archdale, NC 27263 • (336) 434-2800 • FAX (336) 434-2803
58-GC5027
Cam Switch
Non-Reversing - 2 Speed - 3 Phase
Single Winding, Constant, Or Variable Torque
C5027 & C5027B
January, 2000
Supersedes Issue of
July, 1982

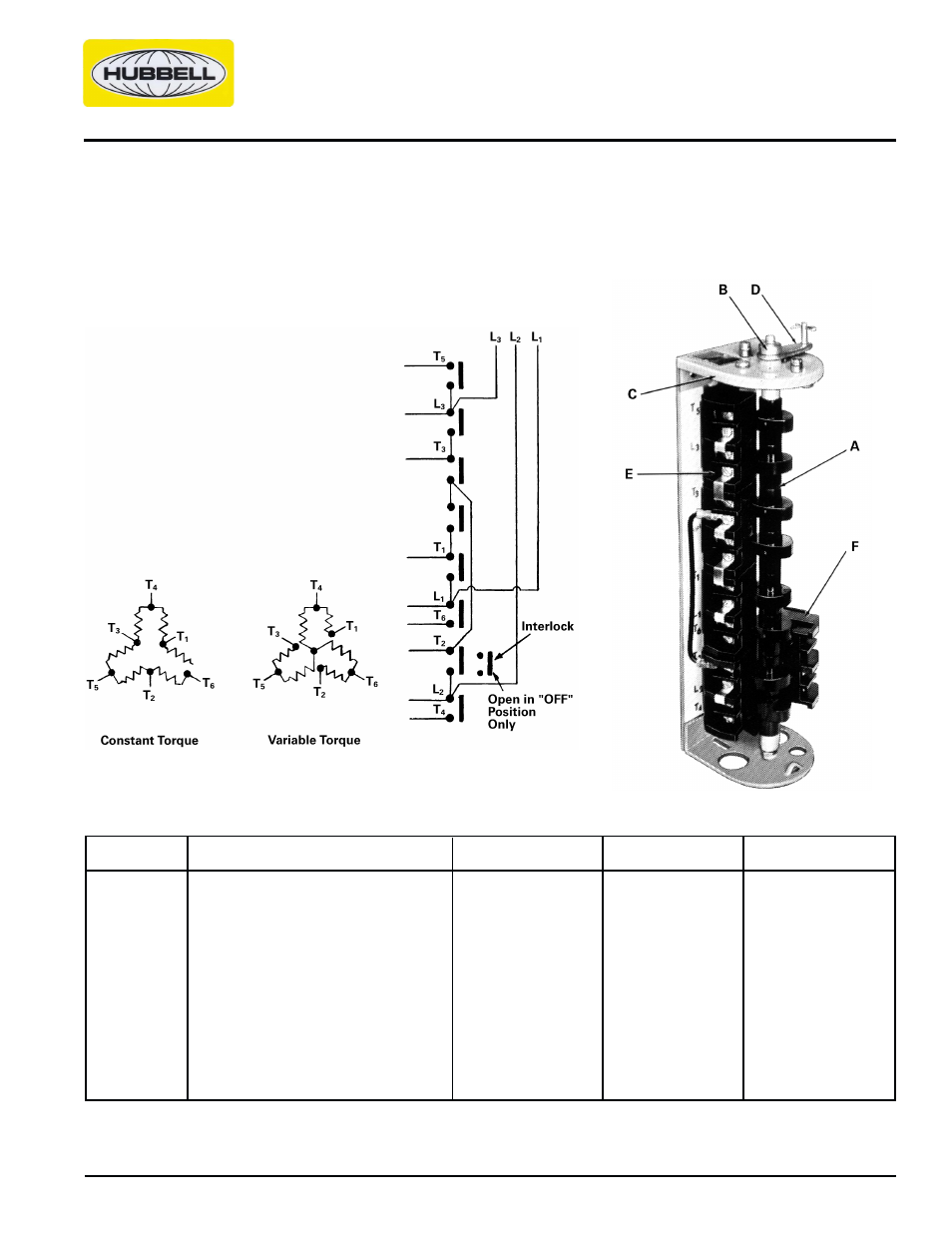

INTERNAL CONNECTIONS
Low SpeedHigh Speed
Interlock ClosedInterlock Closed
L1 - T1 L1 - T6
L2 - T2 L2 - T4
L3 - T3 L3 - T5
Together
T1 - T2 - T3
NOTE: When ordering replacement parts, give catalog number of control and part number.
Item Part Name Cat. No. No. Req’dPart Number
A Rotor Assembly C5027 1 D50073001
C5027B 1 D51902001
B Roller Lever Assembly 1 D10288001
C Index Spring 1 D06171002
D Lever Assembly 1 D17811001
E Contact Board - 2 Pole 4 D50542001
F Contact Board - 1 Pole 1 D72145010
(For Engineering Reference Only - Rev. B)
