Loading Paper
73
5
F

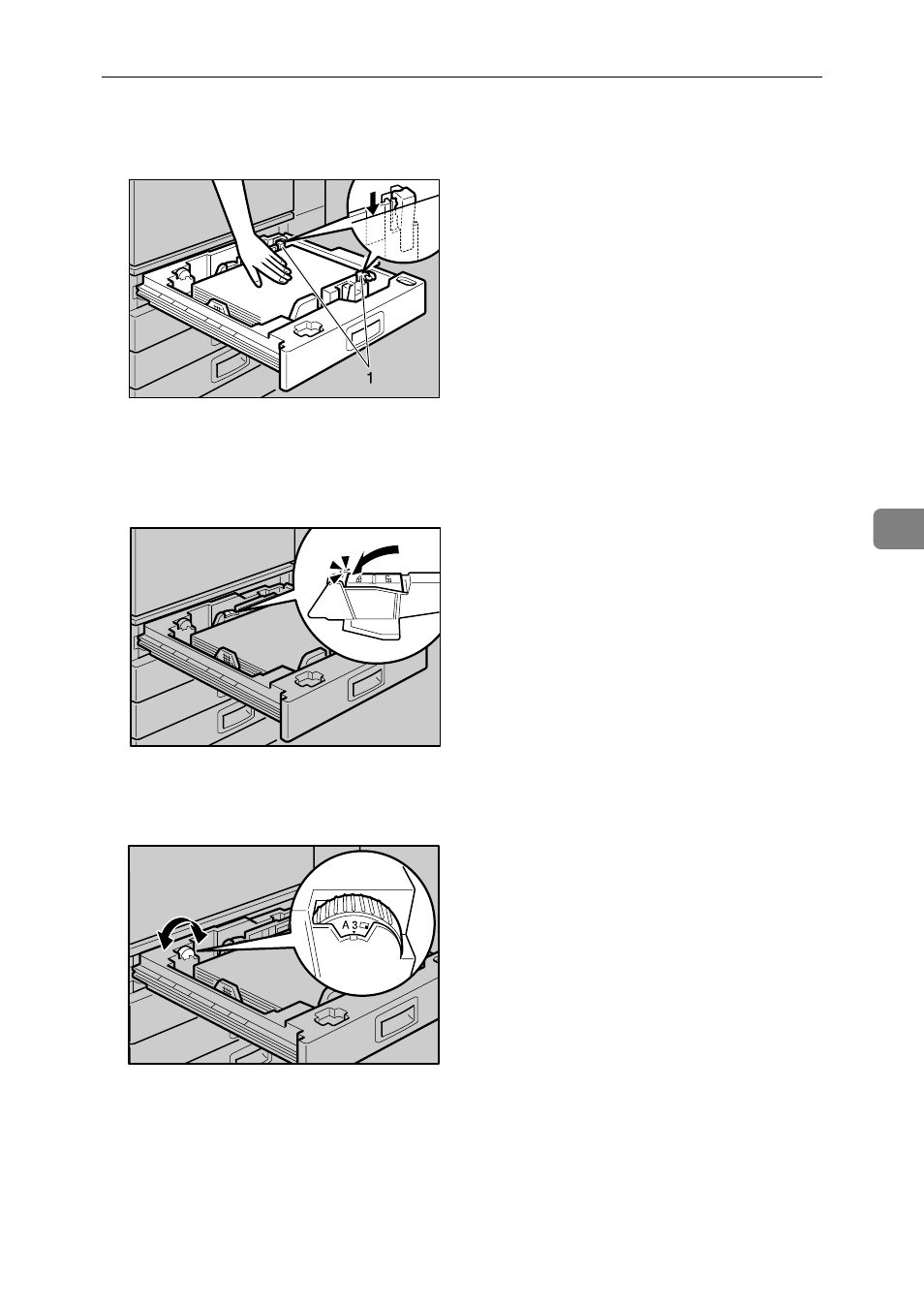

After loading, make sure that on either side, the paper does not catch (on 1).
Push down the paper stack.
The rear guide is not necessary when 11 × 17 inch paper is loaded in the tray.
Put it in the holder in the tray.
G
Lock the side lever.
H
Adjust the paper size dial to match the size and feed direction of the paper
in the paper tray.
Be sure to set the dial to the correct direction to avoid paper misfeeds.
If a paper size and feed direction that are not indicated on the paper size dial,
set the dial to “p”. In this case, you should specify the paper size using the
control panel.
AQV589S
AQV587S
AQV588S
