Removing Misfed Paper
129
9
When “Remove Misfeed Z:Duplex Unit” Appears

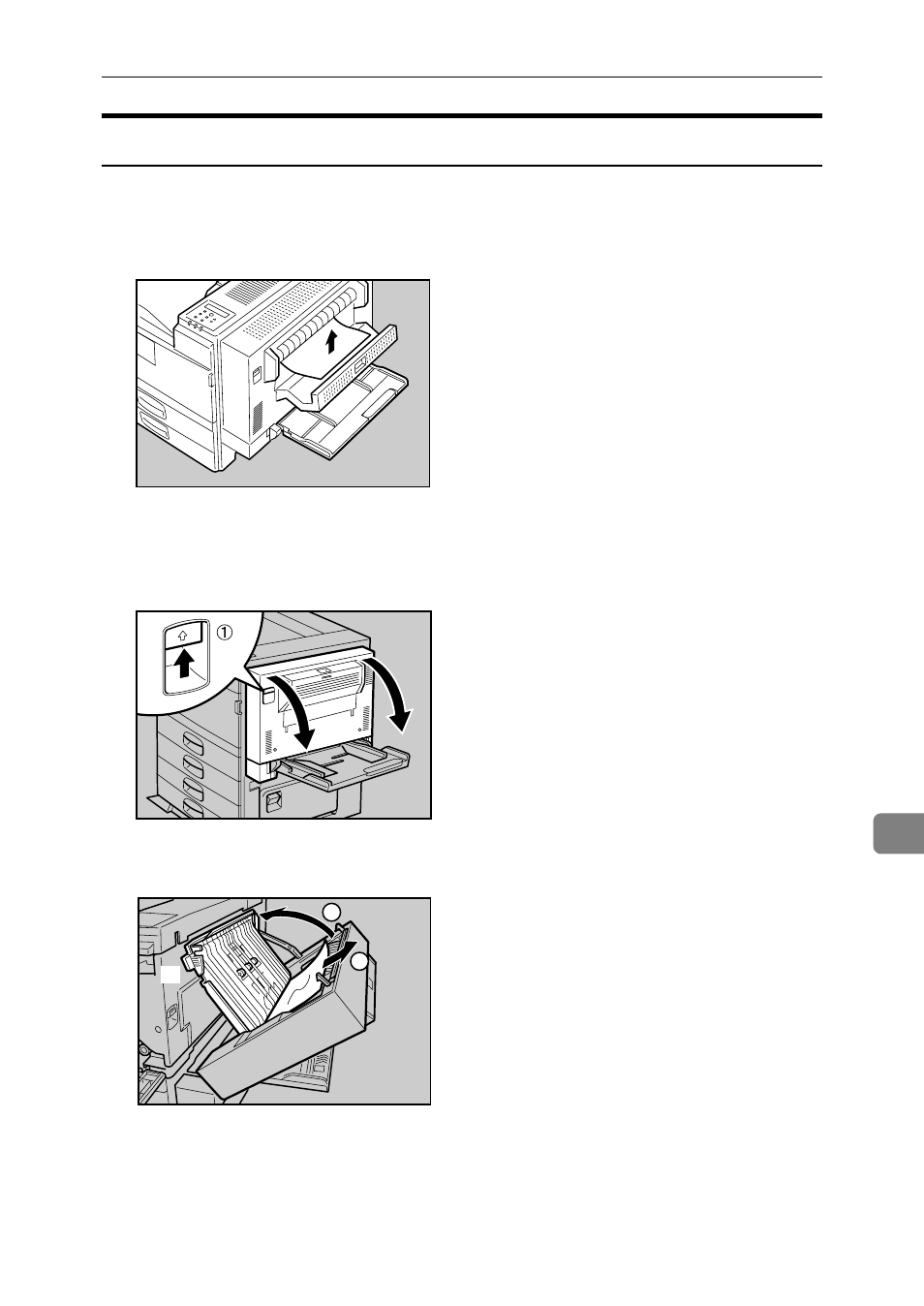

When the “Remove Misfeed Z:Duplex Unit” message appears, do the followings:
A
Open the Bypass Tray and the Duplex Unit right cover, and then remove
the misfed paper.
B
Close the Duplex Unit right cover.
C
Open the Duplex Unit by pushing the catch upwards (1).
D
Open the cover Z to the left (1), and then remove the misfed paper (2).
E
Close the covers in the following order:
• The cover Z
• The Duplex Unit
• The Bypass Tray
AQV122S
AQV146S
AQV157S
1
2
Z
