1
1. Guide to the Printer

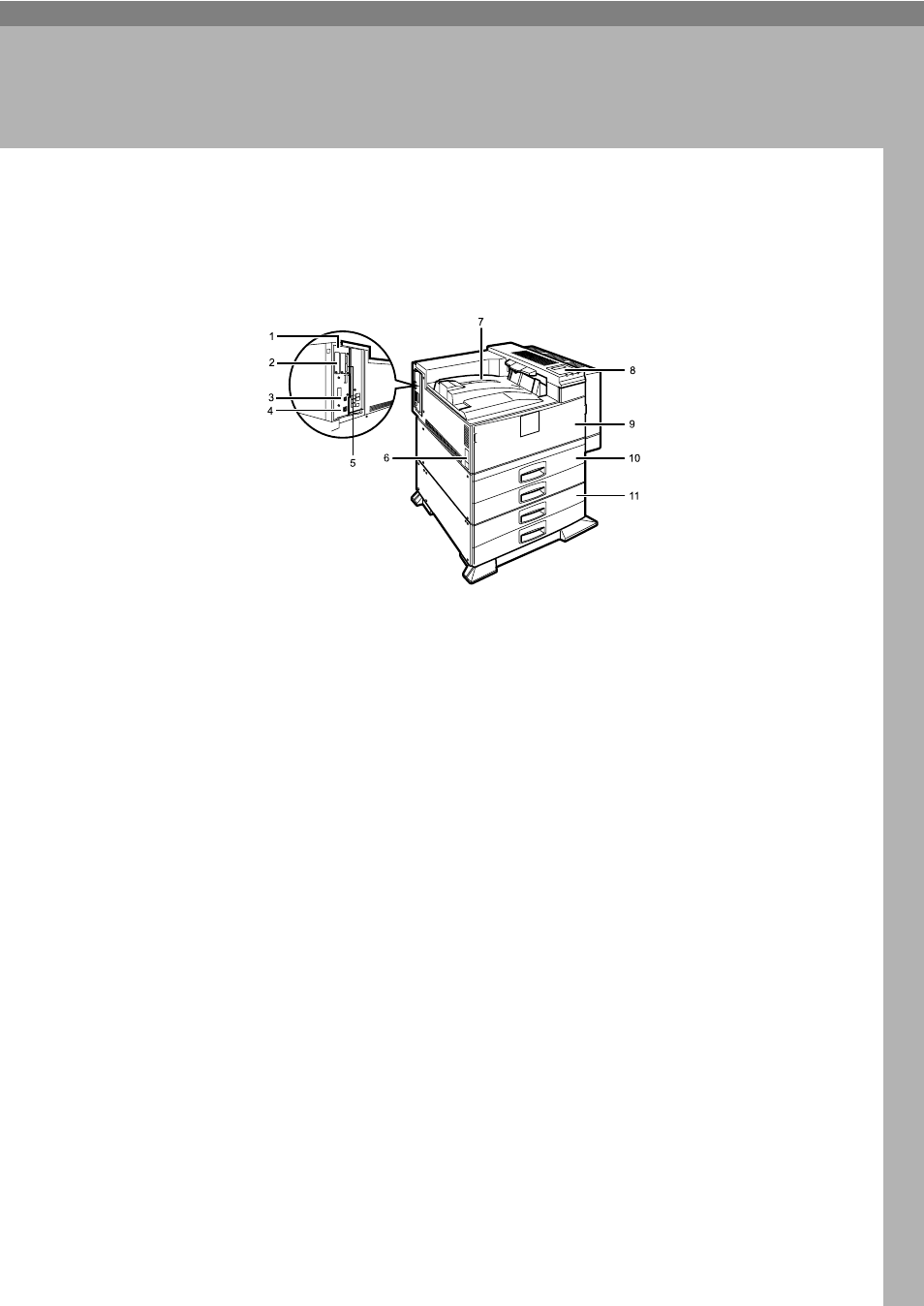

Exterior: Front View
1.
Controller Board
Remove this board when installing the
hard disk unit, SDRAM modules, or User
Account Enhance unit.
2. Optional board slots
Remove the cover when installing the op-
tional board.
3. USB port
Use a USB cable to connect the printer to
the host computer.
4. Ethernet Port
Use a network interface cable to connect
the printer to the network.
5. Expansion card slot
Insert an optional unit into a slot.
6. Power Switch
Use this switch to turn the printer power
on and off.
7.
Output Tray
Printed output is stacked here with the
print side face down.
8.
Control Panel
Contains keys for printing operation and
a panel display that shows the printer
status.
9. Front Cover
Open this cover if you replace some parts
or if a paper misfeed occurs.
10. Paper Tray
Holds up to 550 sheets of plain paper per
tray and 1100 sheets in total. (80 g/m
2 , 20 lb.)
11. Paper Feed Unit PB 3020 (Op-
tion)
Holds up to 550 sheets of plain paper per
tray and 1100 sheets in total. (80 g/m
2 , 20 lb.)
AQV002S
