To perform the self-tests
The self-tests verify the correct operation of the logic analysis system. Self-tests can
be performed all at once or one at a time. While testing the performance of the logic
analysis system, run the self-tests all at once.
1 If you just did the power-up self-tests, go to step 2.
If you did not just do the power-up self-tests, disconnect all inputs, then turn on the
power switch. Wait until the power-up tests are complete.

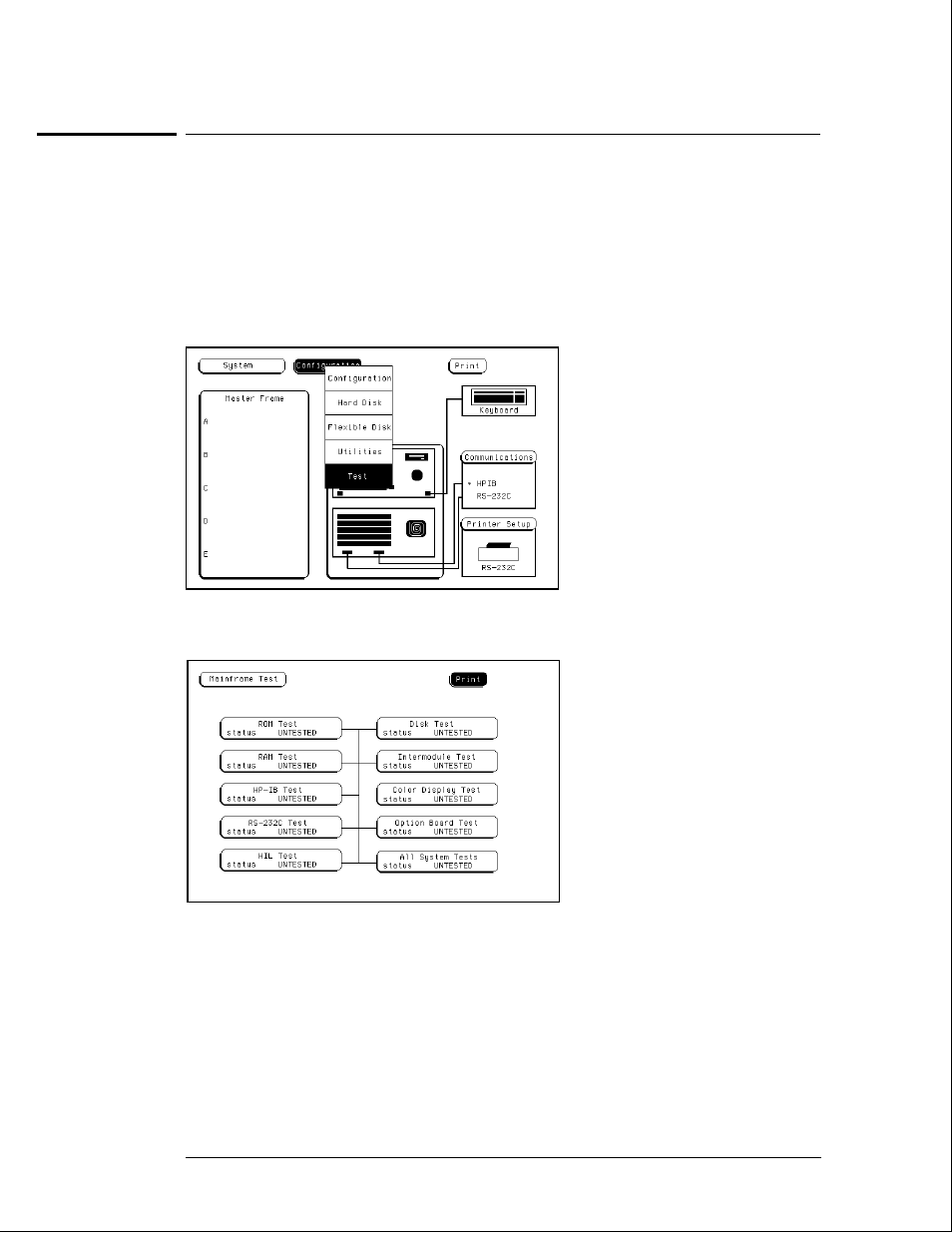

2 In the System Configuration menu, select Configuration, then select Test.
3 Select the box labeled Load Test System.
4 Select Test System, then select Mainframe Test from the pop-up menu.
Testing Performance
To perform the self-tests
3–4
