Front Panel Components 13
Front Panel Components
xw4200 Front Panel Components

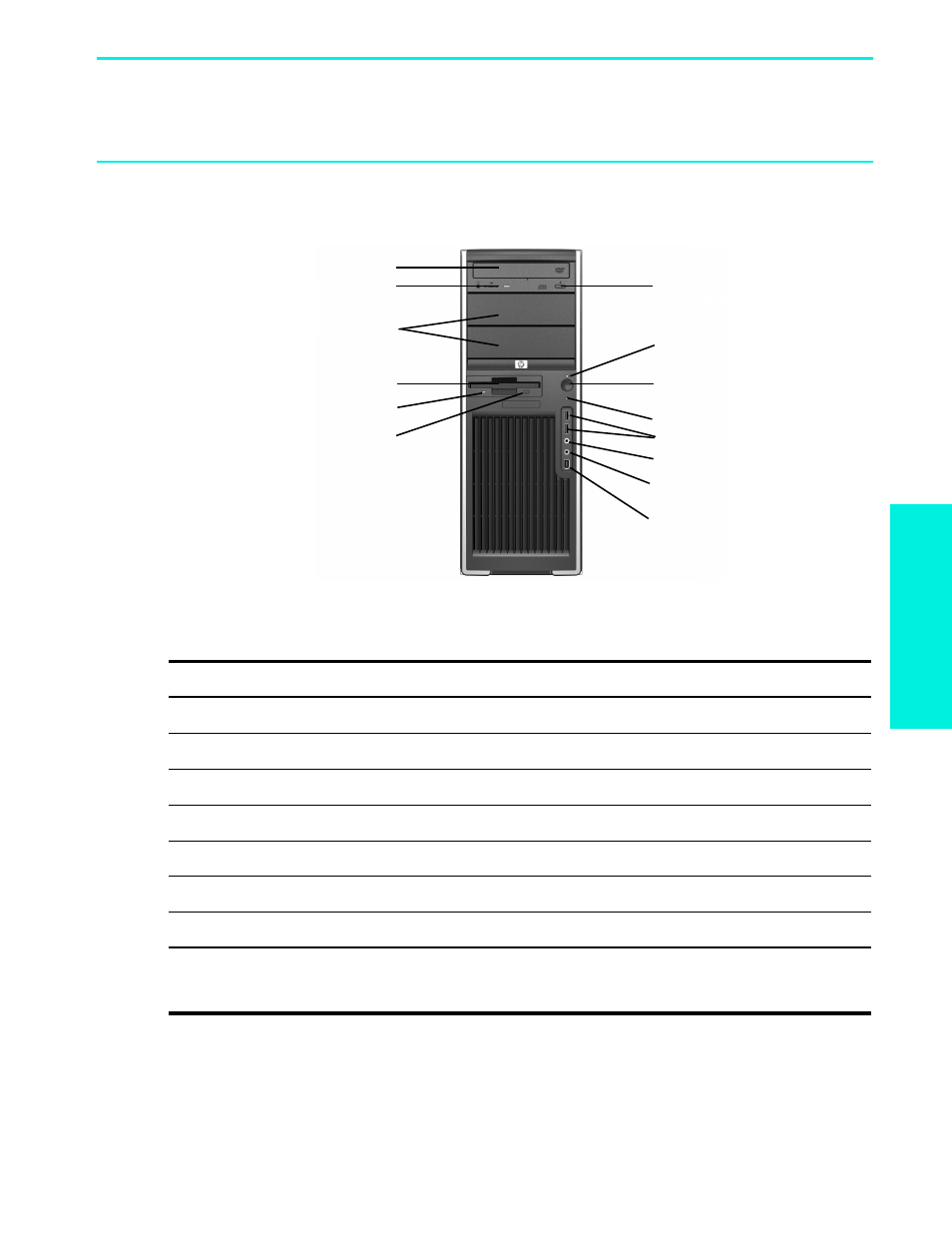

Figure 2-3 xw4200 Front Panel Components
Table 2-2 xw4200 Front Panel Components
Item Description Item Description
1 Optical Drive* 8 Power On Light
2 Optical Drive Activity Lights 9 Power Button
3 5.25 Inch Drive Bays 10 Hard Drive Activity Light
4 Diskette Drive (optional) 11 USB (Universal Serial Bus) Ports
5 Diskette Drive Activity Light 12 Headphone Connector
6 Diskette Eject Button 13 Microphone Connector
7 Optical Drive Eject Button 14 I EEE-1394a Connector**
NOTE: * An optical drive is a CD-ROM, CD-R/RW, DVD-ROM, DVD+R/RW, or CD-RW/DVD combo drive.
NOTE: ** IEEE-1394a is an optional feature. If the unit was purchased without this option, then this connector will be covered with
a black label.
