VIPER Technical Manual
Connectors, LEDs and jumpers
© 2007 Eurotech Ltd Issue E
93

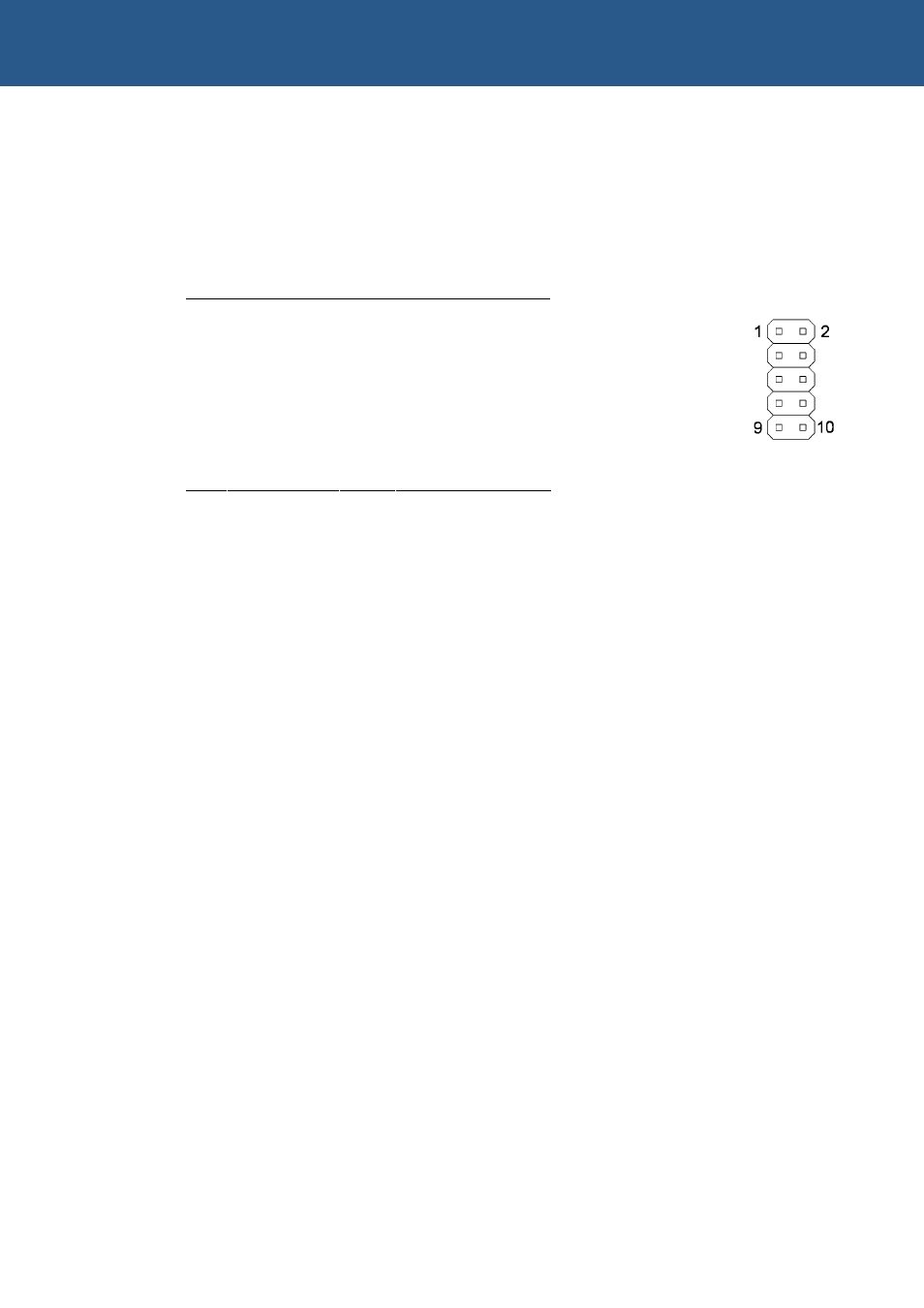

PL10 – JTAG connector
Connector: Oupiin 2011-2x5GSB/SN, 10-way, 2.54mm (0.1”) x 2.54mm (0.1”) dual row
header
Mating connector: FCI 71600-010LF
Pin Signal name
Pin
Signal name
1 VCC3
2 NC
3 GND
4 nTRST
5 NC
6 TDI
7 TDO
8 TMS
9 TCLK
10 SRST
