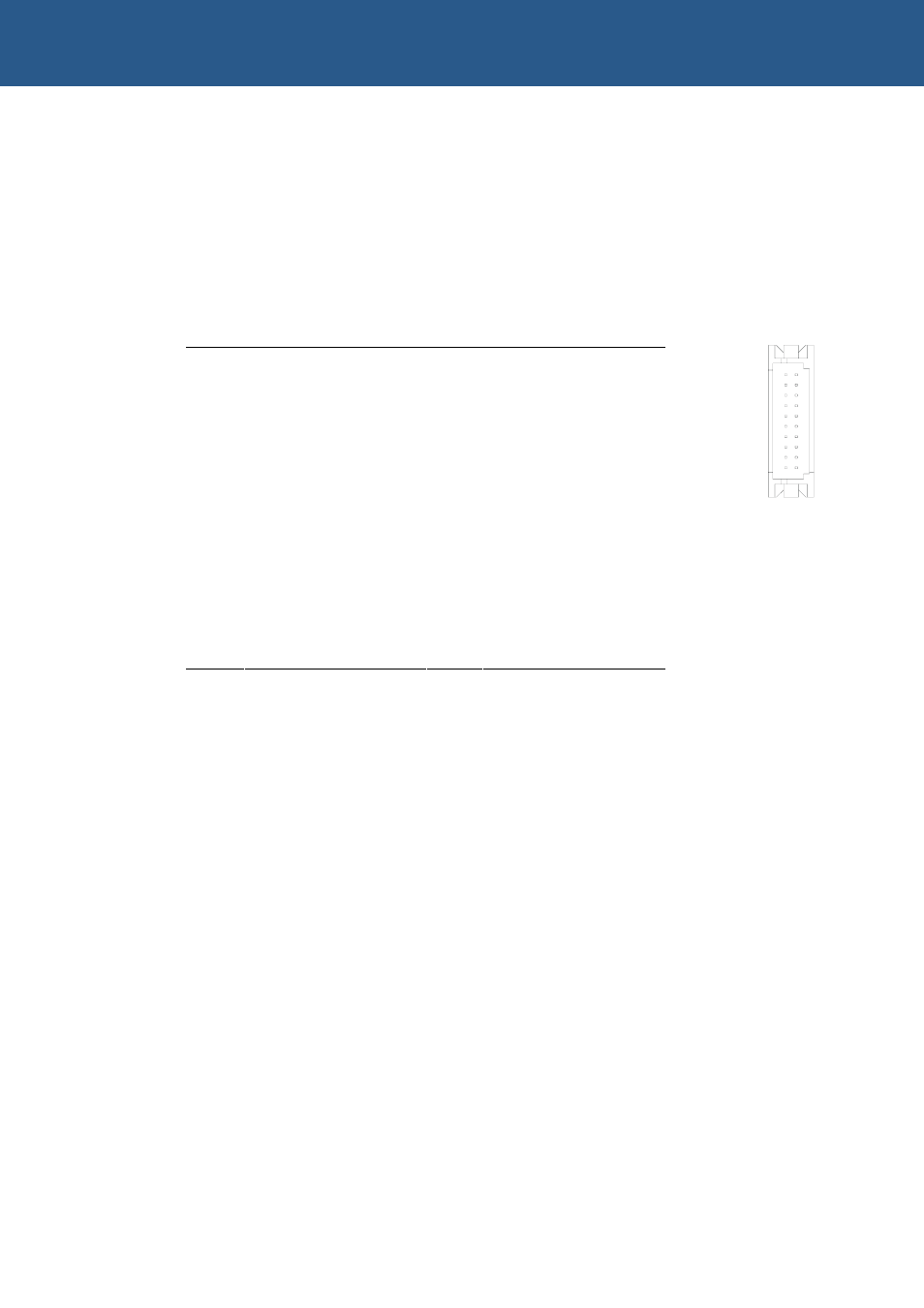

J2 – LVDS Hirose connector
Connector: DF13-20DP-1.25V(55), 20-way, 1.27mm (0.05”) double row straight pin
header
FPIF-LVDS-RX Hirose mating connector: Hirose DF13-20DS-1.25C
FPIF-LVDS-RX Hirose mating connector crimps: Hirose DF13-2630SCF
Eurotech Ltd recommended cable
:
Amphenol 165-2899-941 through to 165-2899-960
Pin
Signal name
Pin
Signal name
19 GND
20 NC
17 NC
18 NC
15 LVDS_CLK+
16 GND
13 GND
14 LVDS_CLK-
11 LVDS_D2-
12 LVDS_D2+
9 LVDS_D1+
10
GND
7 GND
8
LVDS_D1-
5 LVDS_D0-
6 LVDS_D0+
3 GND
4 GND
1 LCD_EN
2 LCD_EN
20
2
19
1
