VIPER Technical Manual Detailed hardware description
© 2007 Eurotech Ltd Issue E 61
USB client interface
The VIPER provides one USB 1.1 client interface.

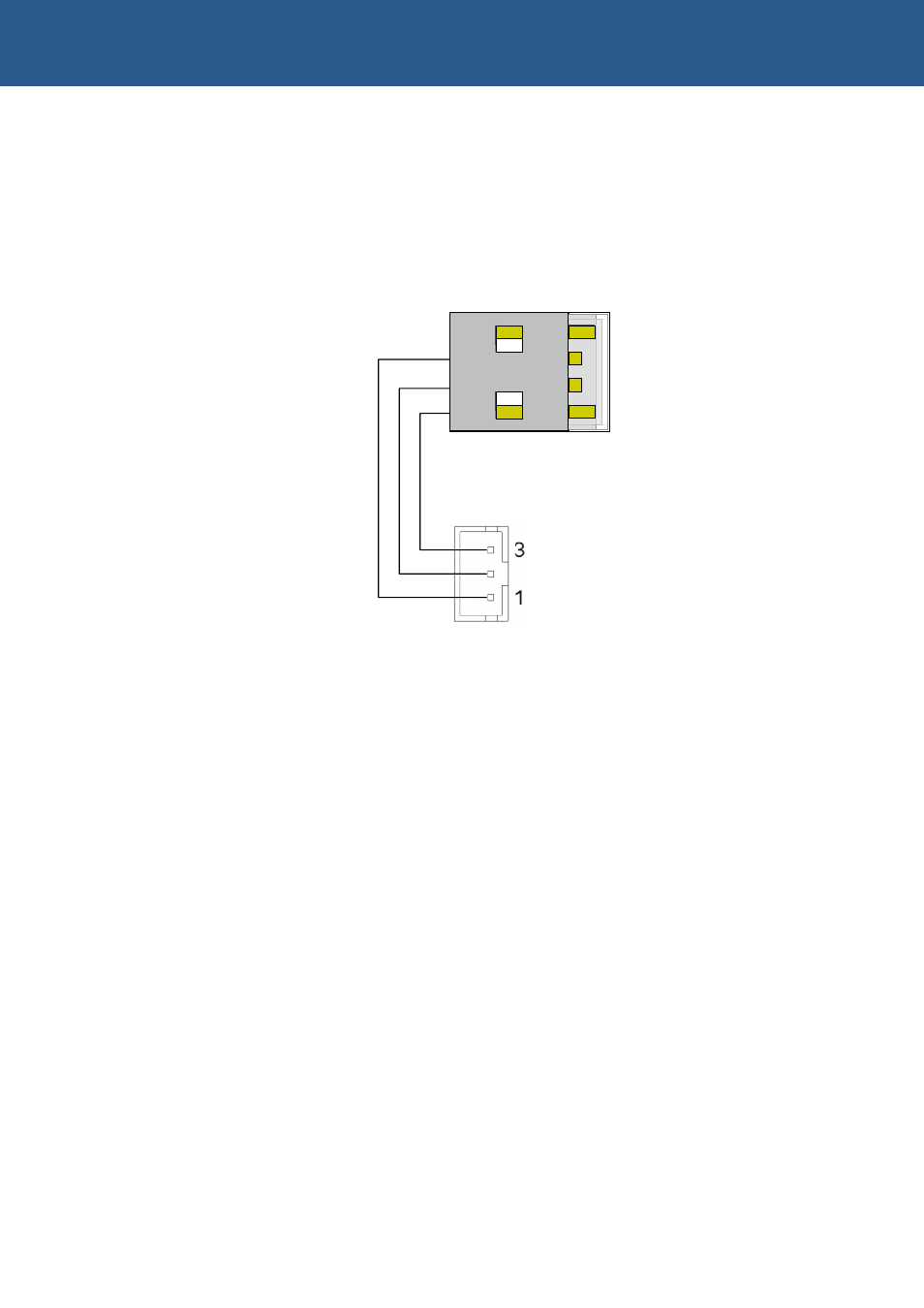

The connection between PL17 and a USB Type A connector is detailed in the following
illustration:
1
2
3
4
GND (BLACK
)
USBC+ (
G
RE
EN)
US
B
C
- (
W
HITE)
USBC -
USBC +
GND
VCC
PL17
USB Type A Plug
