VIPER Technical Manual
Connectors, LEDs and jumpers
© 2007 Eurotech Ltd Issue E
88
PL3 – LCD connector
Connector: Oupiin 3214-40C00RBA/SN, 40-way, 1.27mm (0.05”) x 2.54mm (0.1”) right
angled boxed header
Mating connector: Oupiin 1203-40GB/SN
Pin Signal name
Pin Signal name
1 BLKEN#
2 BLKSAFE
3 GND
4 GND
5 NEGBIAS
6 LCDSAFE
7 GPIO16/PWM0 8 POSBIAS
9 GND
10 GND
11 FPD0
12 FPD1
13 FPD2
14 FPD3
15 GND
16 GND
17 FPD4
18 FPD5
19 FPD6
20 FPD7
21 GND
22 GND
23 FPD8
24 FPD9
25 FPD10
26 FPD11
27 GND
28 GND
29 FPD12
30 FPD13
31 FPD14
32 FPD15
33 GND
34 GND
35 FCLK / VSYNC
36
BIAS / DE
37 GND
38 GND
39 PCLK / CLOCK
40
LCLK / HSYNC

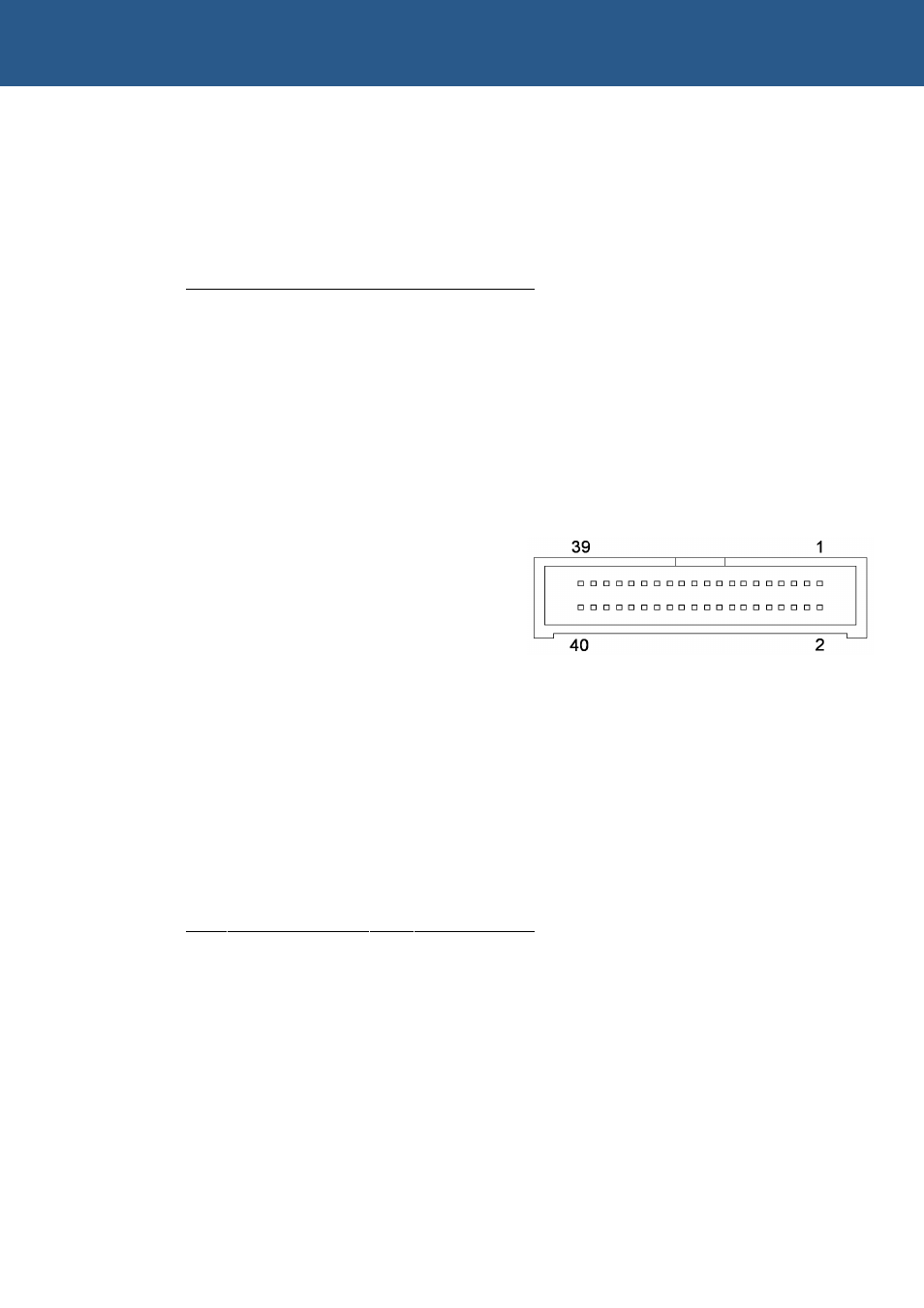

As viewed from the connector pins
