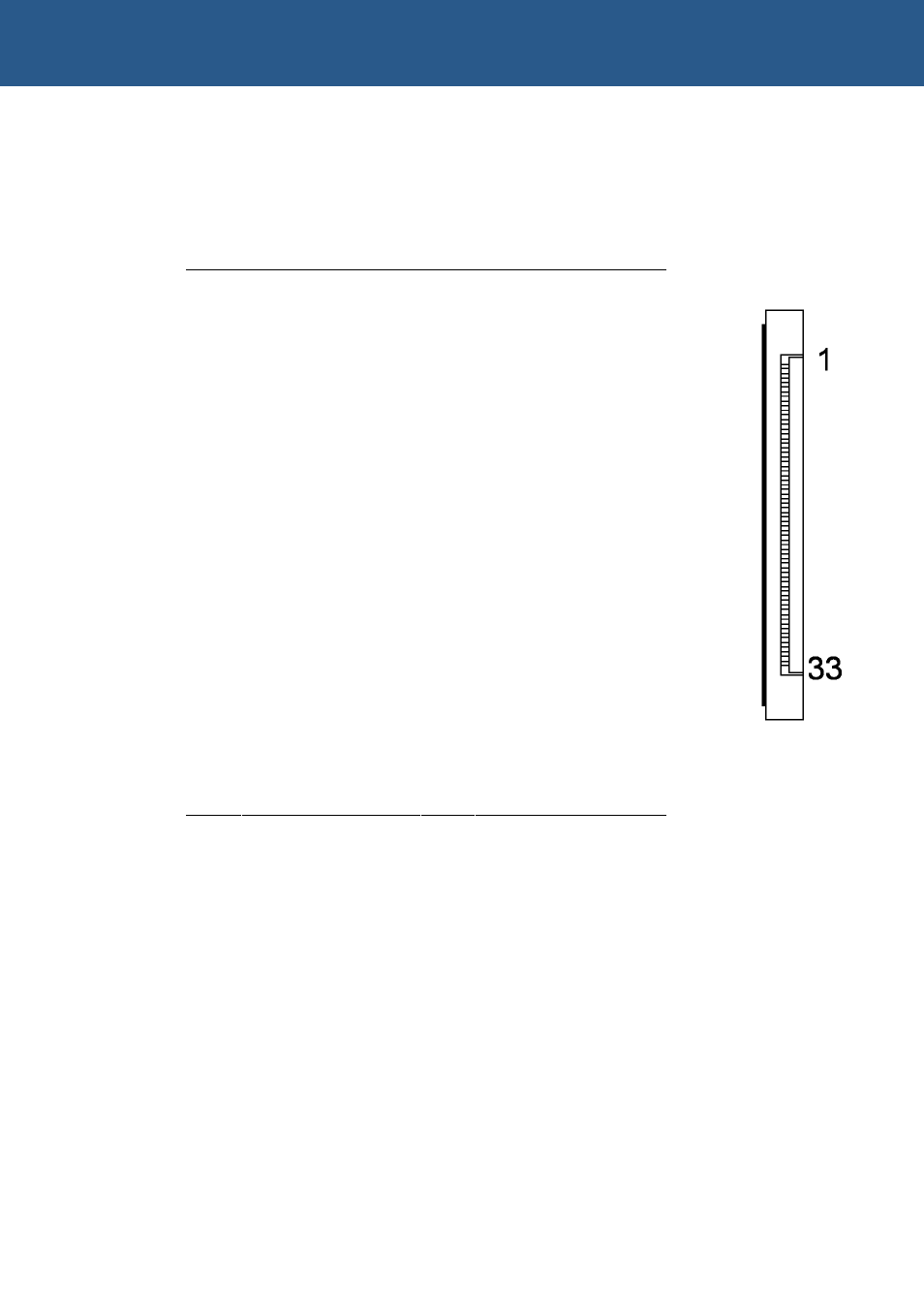

PL3 – Direct connection to a NEC NL3224BC35-20 5.5inch 320x240 TFT display
Connector: Oupiin 2345-33TD2/SN
Mating cable: Eunsung 0.5x33x190xAx0.035x0.3x5x5x10x10
Pin Signal name Pin Signal name
1 GND 18 FPD 10
2 PCLK 19 GND
3 LCLK (HSYNC) 20 GND
4 FCLK (VSYNC) 21 FPD 0
5 GND 22 FPD 1
6 GND 23 FPD 2
7 FPD 11 24 FPD 3
8 FPD 12 25 FPD 4
9 FPD 13 26 GND
10 FPD 14 27 LBIAS
11 FPD 15 28 LCDSAFE
12 GND 29 LCDSAFE
13 FPD 5 30 GND
14 FPD 6 31 GND
15 FPD 7 32 GND
16 FPD 8 33 GND
17 FPD 9
