J3 – LVDS MDR connector
Connector: 3M 10220-55G3PL, 20-way, 1.27mm (0.05”) Board mount Through-Hole
Right Angle Receptacle – Shielded
Mating cable: 3M 14520-EZAB-XXX-0EX, 3M™ Mini D Ribbon (MDR) Cable
Assembly)
Pin
Signal name
Pin Signal name
1 LVDS_D1+
11
LVDS_D2+
2 LVDS_D1-
12
LVDS_D2-
3 GND
13
GND
4 GND
14
GND
5 LVDS_CLK+
15
LVDS_D0+
6 LVDS_CLK-
16 LVDS_D0-
7 GND
17
NC
8 CABLE_POWER 18
NC
9 NC
19
NC
10 NC
20 NC

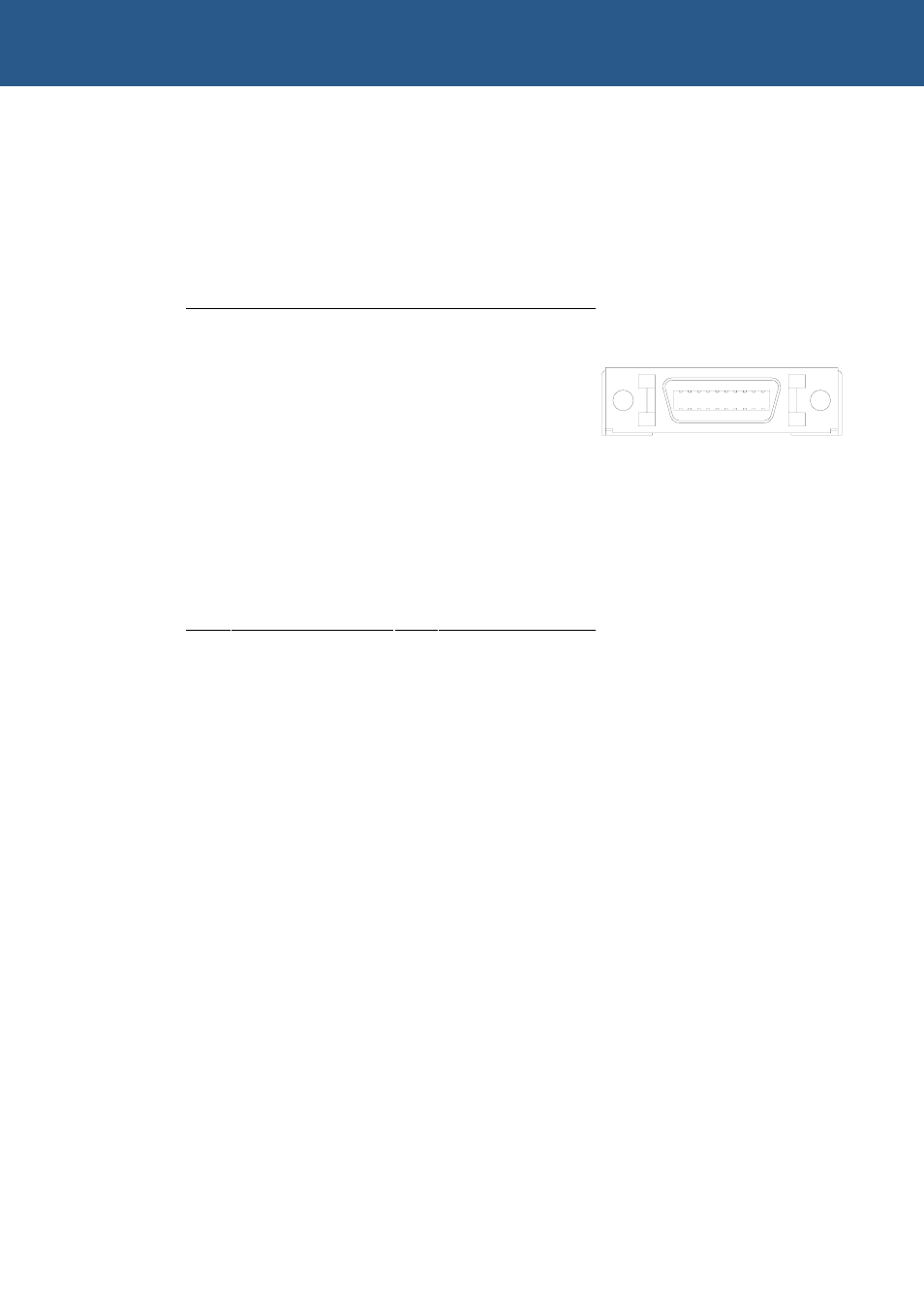

1
10
20
11
As viewed from the connector pins
