3. Remove the base cover .
4. Remove the wireless card .
5. Remove the display assembly .
6. Remove the display bezel .
7. Remove the display panel .
8. Remove the display hinges .
About this task

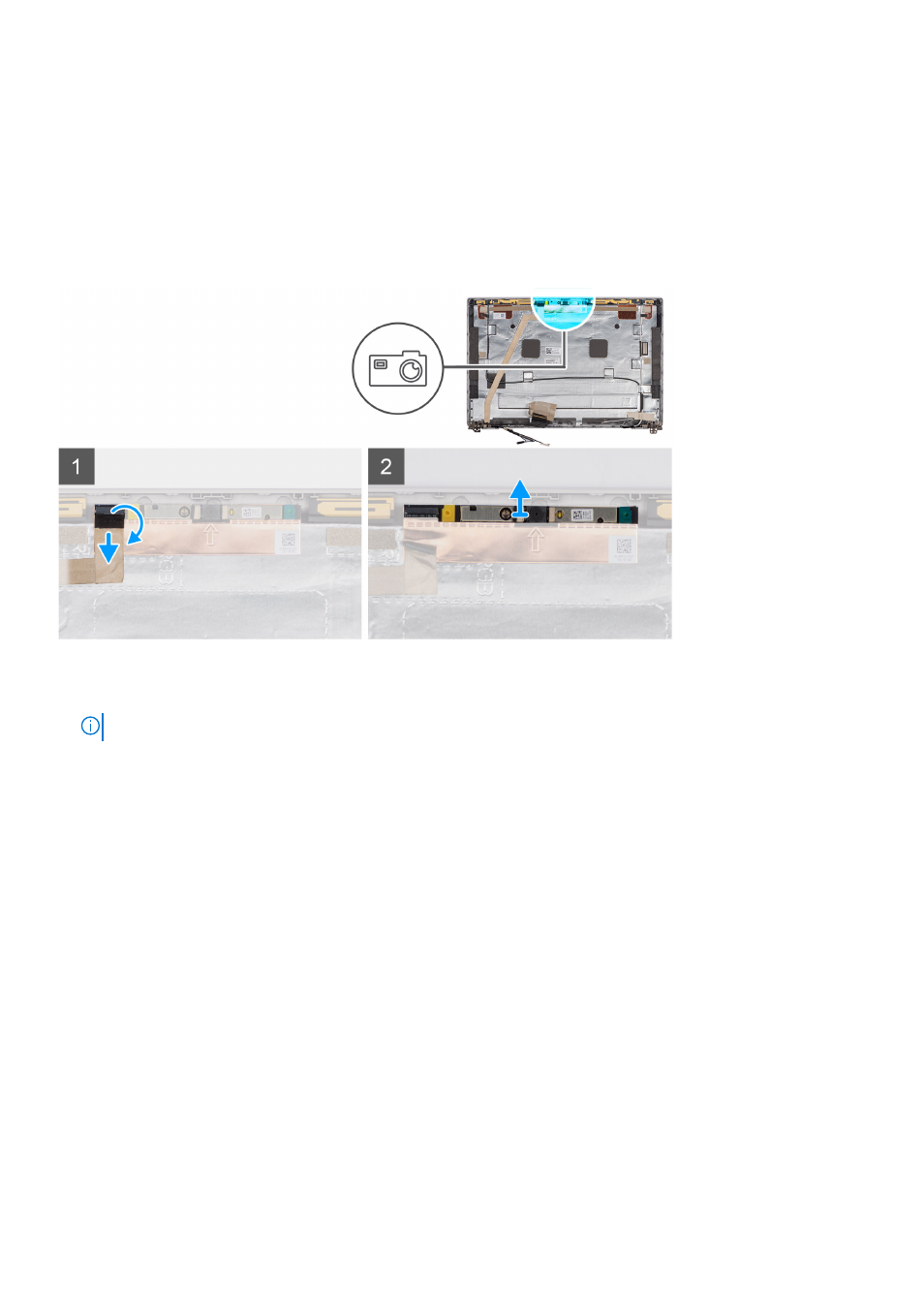

The following images indicate the location of the camera module and provide a visual representation of the removal procedure.
Steps
1. Peel the tape that secures the camera cable.
NOTE: An abrupt peeling may also remove the camera shutter from the display bezel and damage the camera shutter.
2. Lift the latch and disconnect the camera cable from the connector on the camera module.
3. Carefully pry up the camera module starting from the prying point indicated by an etched arrow at the bottom edge of the
camera module.
Removing and installing components 77
