SETTING UP
ENGLISH
r
Connecting to the unit having the analog RGB output terminal
Connect the analog RGB cable to the [RGB IN] terminal on the rear panel.

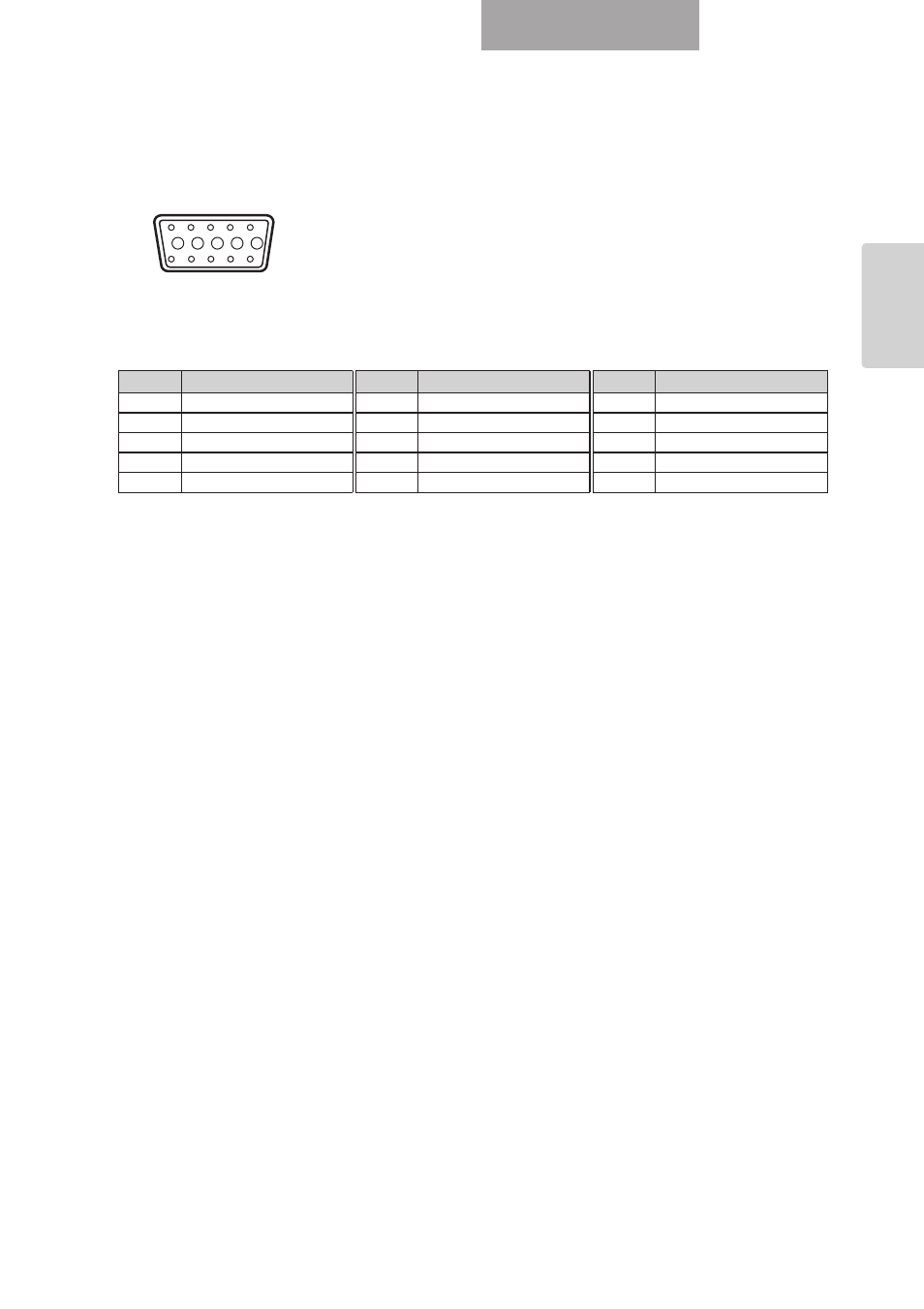

• Specifications of the analog RGB input terminal of this product
Signal allocation
Pin assignment
t
Connecting to the unit having the composite video input terminal
Connect the video cable with RCA pin plug to the [VIDEO OUT] terminal on the rear panel.
10
9
8
7
6
5
4
3
2
1
15 14 13
DSUB 15P shrink terminal (Female)
12 11
Video signal :
Analog 0.7V(p-p) 75
Ω terminated
Horizontal synchronized signal : TTL level (Positive/negative polarity)
Vertical synchronized signal :
TTL level (Positive/negative polarity)
Pin No.
Name
1
Video signal (Red)
2
Video signal (Green)
3
Video signal (Blue)
4
N.C
5
GND
Pin No.
Name
6
GND (Red)
7
GND (Green)
8
GND (Blue)
9
N.C
10
GND
Pin No.
Name
11
GND
12
N.C
13
Horizontal synchronized signal
14
Vertical synchronized signal
15
N.C
