PART NAMES
AND
FUNCTIONS
61

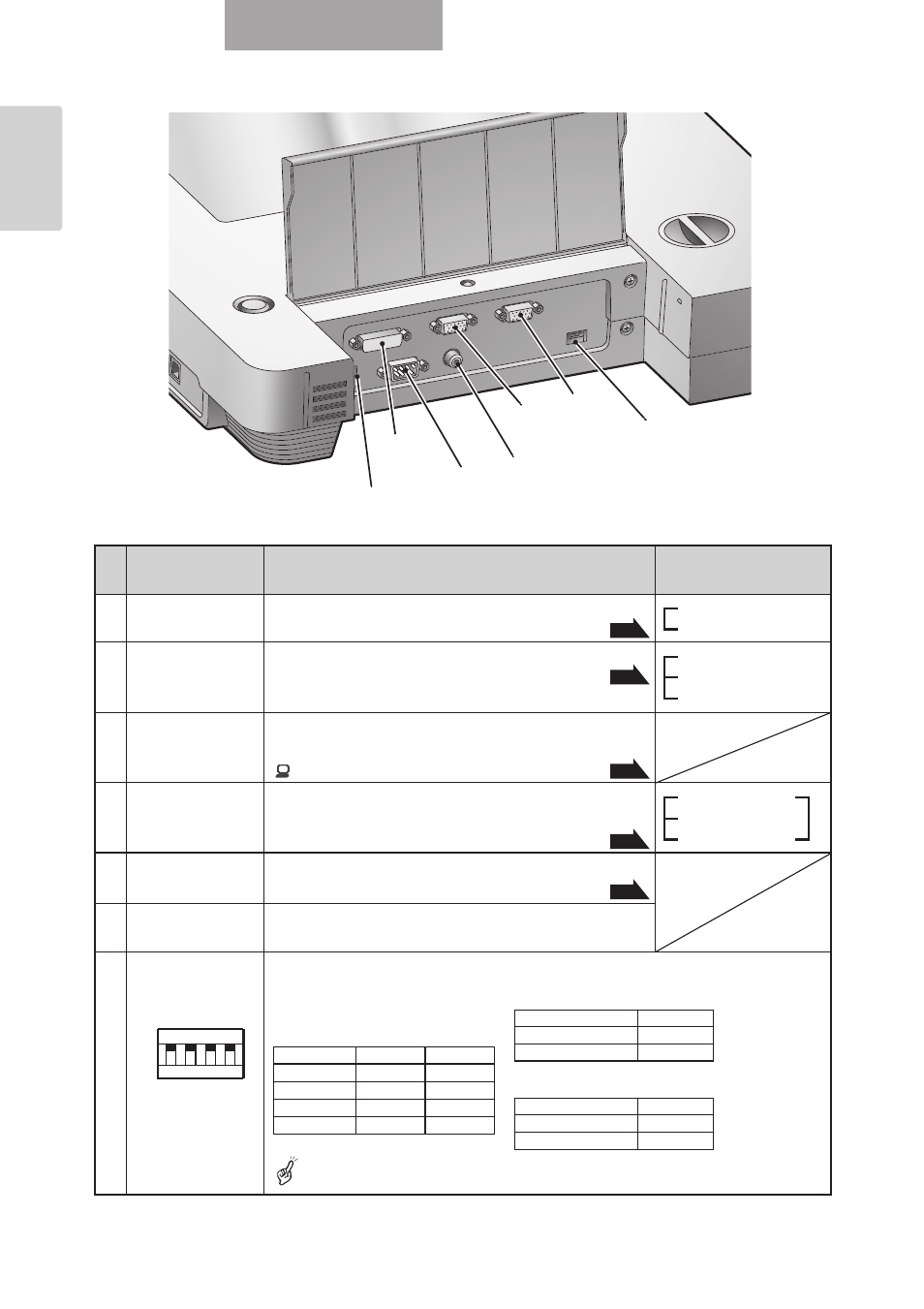

■ Rear Panel
Name Function
q DVI OUT To output digital video signal to the projector, the Camera image
(DVI Output Terminal) PC monitor or other DVI input device SD mode
w RGB OUT To output analog video signal to the projector, the Camera image
(Analog RGB PC monitor or other RGB input device [RGB IN] image
Output Terminal) SD mode
e RGB IN Input image is output from the analog RGB output
(Analog RGB terminal or the video out terminal when RGB IN
Input Terminal) ( ) is selected with image select button
r VIDEO OUT To output image from the RCA pin-jack terminal to Camera image
(Composite Video the NTSC/PAL-system monitor (e.g., TV monitor) [RGB IN] image *
Output Terminal) SD mode
t RS-232C To control the main unit from a PC through the
(RS-232C Terminal) RS-232C cable
y 12VDC IN Socket for the AC adapter
(Power Socket)
u (DIP Switch) To execute the following switching:
When switching the DIP switch key settings, be sure
to turn OFF the power supply to the main unit.
* [Video Out] → [Camera & SD] on the OSD skips [RGB IN] image.
Image whose display
is selectable with
image select button
P.71
P.71
P.72
P.72
P.89
0
1
A B C D
[A] and [B] keys:
Switch the resolution of the
DVI and analog RGB output [C] key: Switches the VIDEO output type
[D] key: Switches the VIDEO screen size
Settings
SXGA
XGA
720p
(SXGA)
[A] key
0
1
0
1
[B] key
0
0
1
1
Settings
NTSC
PAL
[C] key
0
1
Settings
Over scan
Under scan
[D] key
0
1
Display of Rear Panel
y y y
t t t r
r r
w w w
u u u
e e e
q q q
