en | Fiber Optic Module with an RS232/RS422 Controller (AUTODOME
VG5-600 Camera Models ONLY) Power Supply Units (AUTODOME7000, MIC7000
cameras)
2020-10 | | Installation Manual Bosch Security Systems, Inc.
– Ensure that the protocol switch is in the left position for RS-232 operation.

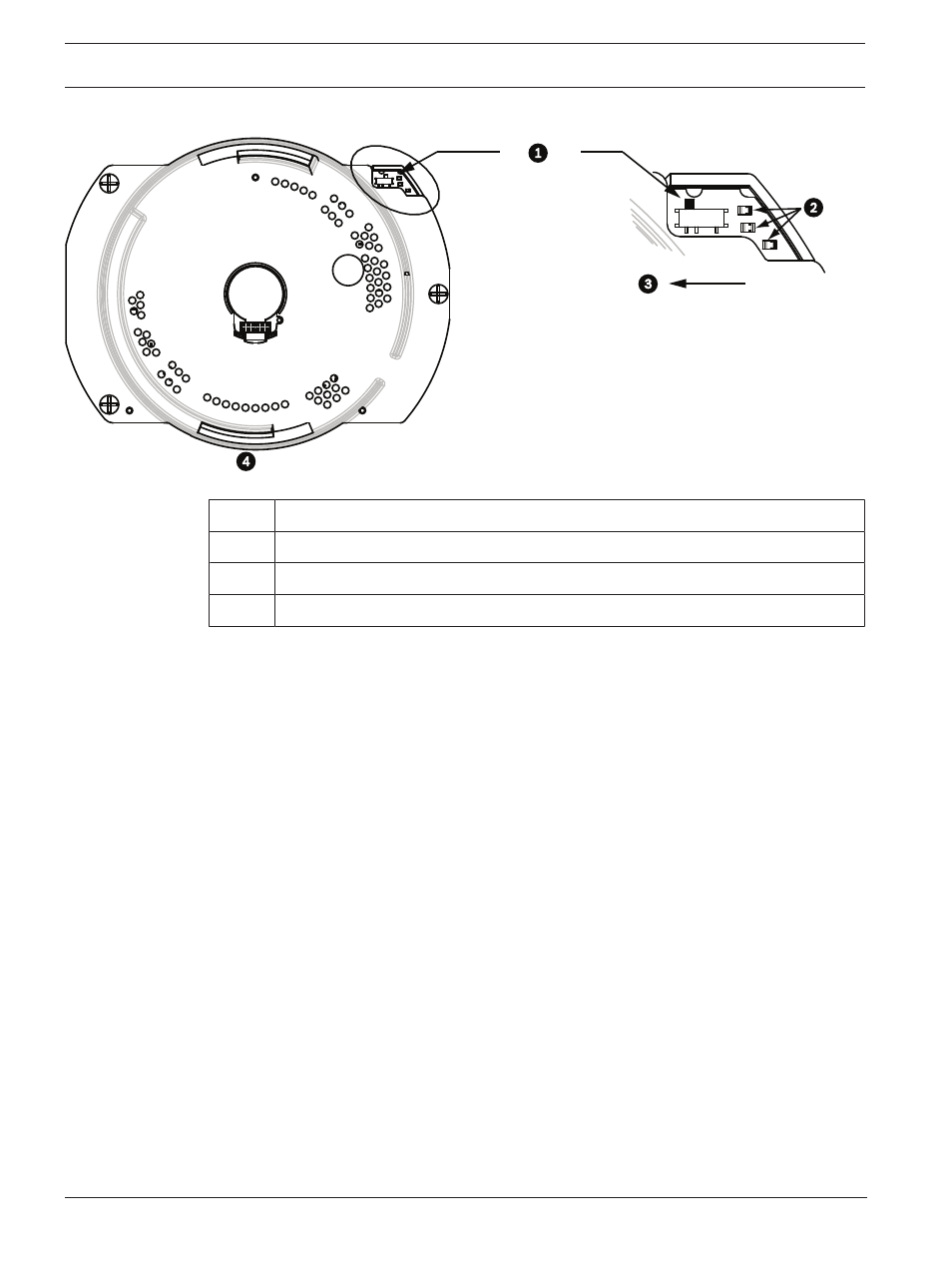

Figure 10.2: Position of CPU Switch for RS-232 Operation
1 Switch Location
2 LEDs
3 Move Switch to the left for RS-232 Operation
4 CPU Module
11. Return the bubble to the camera housing.
12. Return power to the power supply box.
