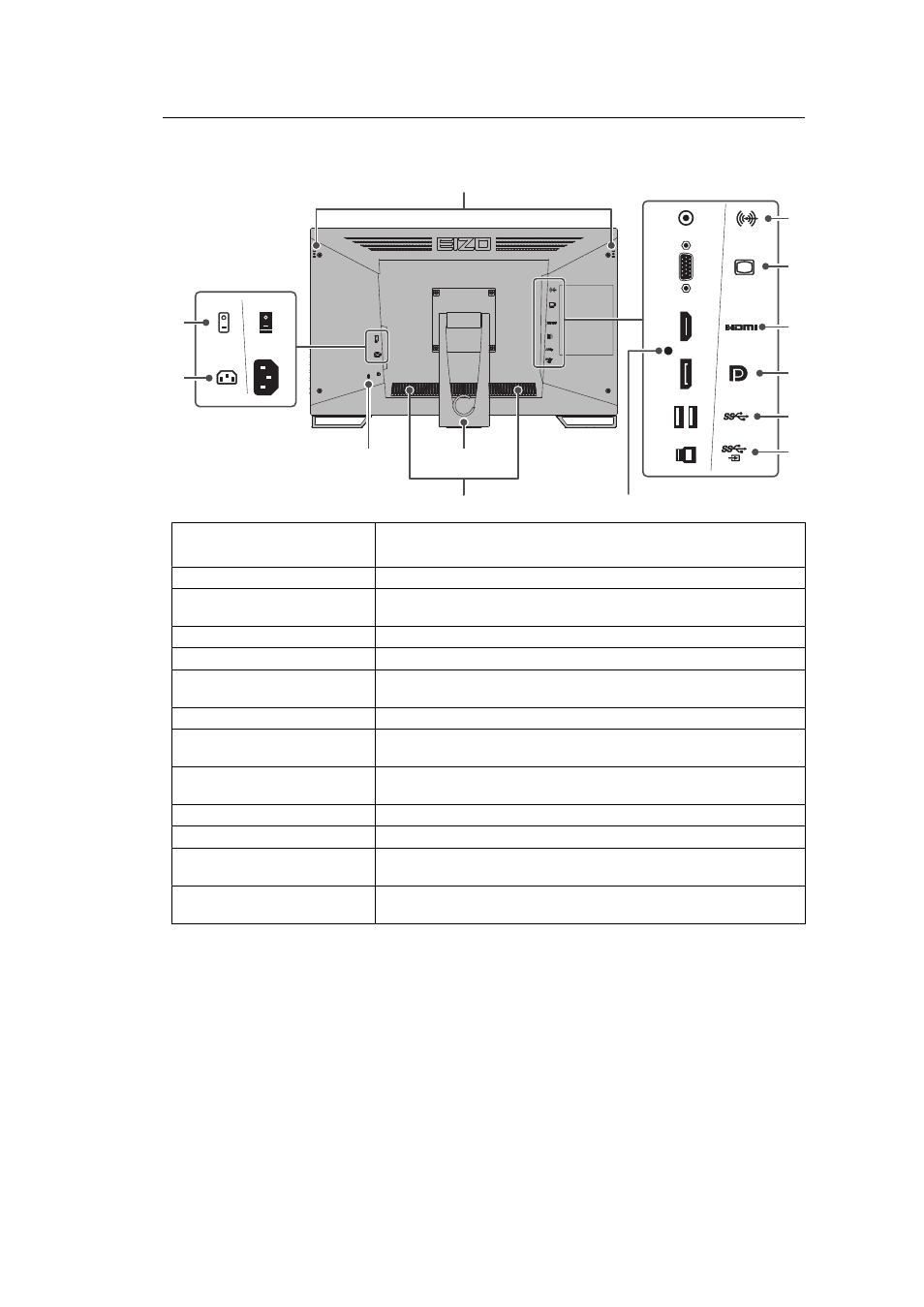

1.2.2 Rear

1

2

3

4

6

7

5

8

9

10

11

12

13

1. Main power switch

Turns the main power on or off.

: On, ○: Off

2. Power connector

Connects the power cord.

3. Touch pen holder

mounting hole

For mounting the touch pen holder. (see

1.3 Mounting the Touch

Pen Holder [

}

 10]

)

4. Security lock slot

Complies with Kensington’s MicroSaver security system.

5. Speakers

Outputs audio.

6. Stand

(with cable holder)

Allows adjustment of the angle.

7. Tie band mounting hole

Attach a tie band to prevent the HDMI cable from disconnecting.

8. Stereo mini jack

By connecting an external device using a stereo mini jack cable,
external audio can be output from the monitor.

9. D-Sub15 pin (mini)

connector

Connects to a PC with D-Sub output.

10. HDMI connector

Connects to a PC with HDMI output.

11. DisplayPort connector

Connects to a PC with DisplayPort output.

12. USB-A connector

(downstream)

Connects to a peripheral USB device.

13. USB-B connector

(upstream)

Connects to a USB cable if using the monitor as a touch panel
monitor, or if using the USB hub function.
