PLANET ISG-101 Internet Subscriber Gateway
Pass through IP and MAC Address
Some network devices might be constructed under the Internet Subscriber Gateway.
However these devices needn’t be checked and authorized. The ISG-101 provides a pass
through table and the administrator can control which devices can be pass through with
authentication.
3 Installation
This section describes equipments unpacking, pre-installation considerations and different
applications.
3-1 Package Contents
Carefully unpack the contents of the package and verify them against the checklist below

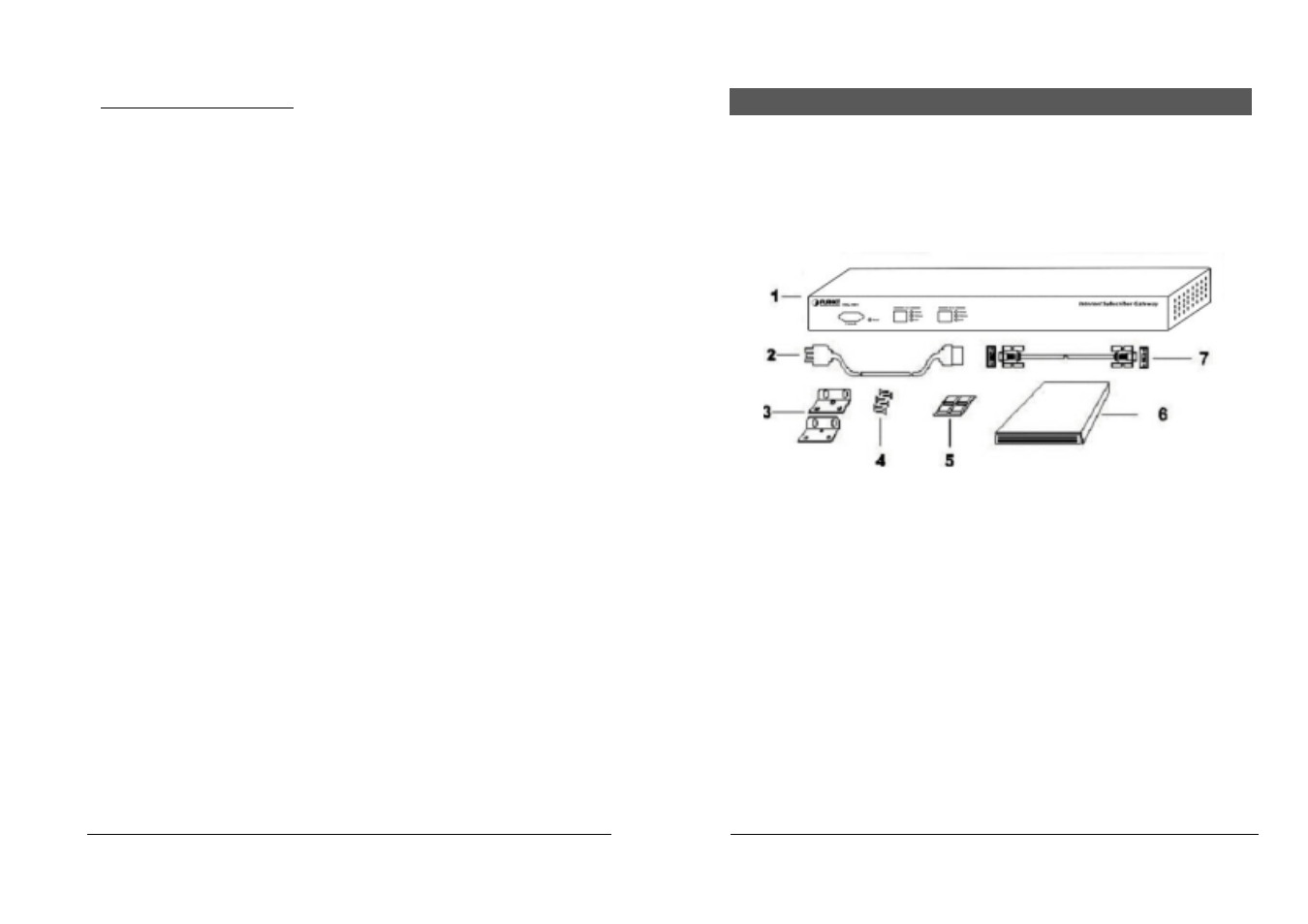

Figure 3-1 Package Contents
1. One ISG-101 Internet Subscriber Gateway body
2. One Power Code
3. Two rack-mounting brackets
4. Six screws
5. Four rubber feet
6. One User’s Manual
7. One DB-9 male/Female serial cable (RS-232 console cable)
3-2 Installation Requirements
Before installing the ISG-101 Internet Subscriber Gateway, make sure your network meets the
following requirements.
Mechanical Requirements
The ISG-101 is to be installed only in a restricted access area per National Electrical Code
Articles 110-16, 110-17, and 110-18. It is suitable for mounting over a noncombustible surface
only. The ISG-101 can be mounted in a rack, or on the table or shelf. Locate the unit near the
outlet. And the ISG-101 ships with two brackets and six screws for mounting in a 19” rack.
