User’s Manual of GS-4210-8P2T2S

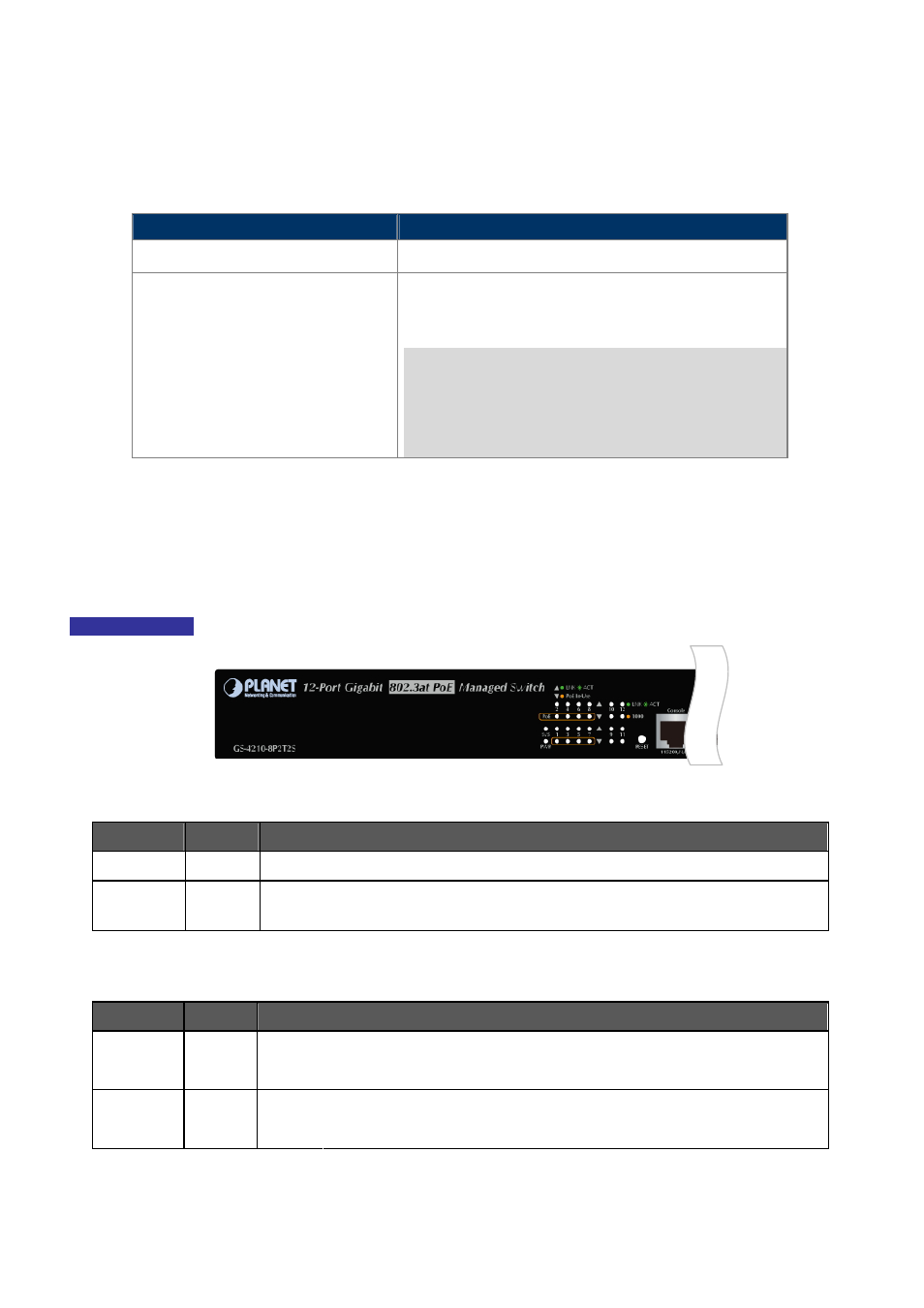

■ Reset Button
On the left of the front panel, the reset button is designed to reboot the Managed Switch without turning off and on the
power. The following is the summary table of Reset button functions :
Reset Button Pressed and Released Function
< 5 sec: System Reboot Reboot the Managed Switch.
> 5 sec: Factory Default
Reset the Managed Switch to Factory Default configuration.
The Managed Switch will then reboot and load the default
settings as below:
。 Default Username: admin
。 Default Password: admin
。 Default IP address: 192.168.0.100
。 Subnet mask: 255.255.255.0
。 Default Gateway: 192.168.0.254
2.1.2 LED Indications
The front panel LEDs indicates instant status of port links, data activity and system power; it helps monitor and troubleshoot
when needed. Figure 2-1-2 shows the LED indications of these Managed Switches.
LED Indication
Figure 2-1-2 GS-4210-8P2T2S LED Panel
■ System
LED Color Function
PWR Green Lights to indicate that the Switch has power.
SYS Green
Lights to indicate the system is working.
Off to indicate the system is booting.
■ 10/100/1000Base-T interfaces(Port-1 to Port-8)
LED Color Function
Lights: To indicate the link through that port is successfully established.
LNK/ACT Green
Blinks: To indicate that the switch is actively sending or receiving data over that port.
Lights: To indicate the port is providing 56V DC in-line power.
PoE Orange
Off: To indicate the connected device is not a PoE Powered Device (PD)
