MODULAR

CONFIGURATIONS

The unique modular design of the

dual inlet side- and down-draft

models are easy to reconfigure for

difficult or customized

installations.

1. CONSTRUCTION

Heavy gauge galvanized steel is

used for cabinet panels and other load bearing components. Vacuum-

formed ABS plastic water reservoirs and thick polystyrene

evaporative media shields keep water from coming into contact with

the steel cabinet for long-lasting durability.

2. EVAPORATIVE MEDIA

The cellulose paper of the

evaporative media is treated to ensure a high water absorption rate

and to resist biological degradation.

3. FINISH

All steel components (excluding the blower wheel,

shaft, and pulley) are chemically treated and covered with an

electrostatically-applied polyester finish at a thickness of 1 to 1.5

mil to protect the cooler from scratches and corrosion. This finish

meets or exceeds requirements for the following tests:

1000-Hour Salt Spray Test-ASTM B117

Abrasion Resistance Test-ASTM 4060-84

Impact Resistance Test-ASTM D2794

2400-Hour Imersion Test-ASTM D870

Adhesion Test-ASTM D3359

OINTS

DVANTAGE

SAS/SAD 100
SAS/SAD 10012
SAS/SAD 150

AS/AD 150
AS/AD 15012
AS/AD/AU 20012

SAS/SAD 15012
AS/AD 100
AS/AD 10012

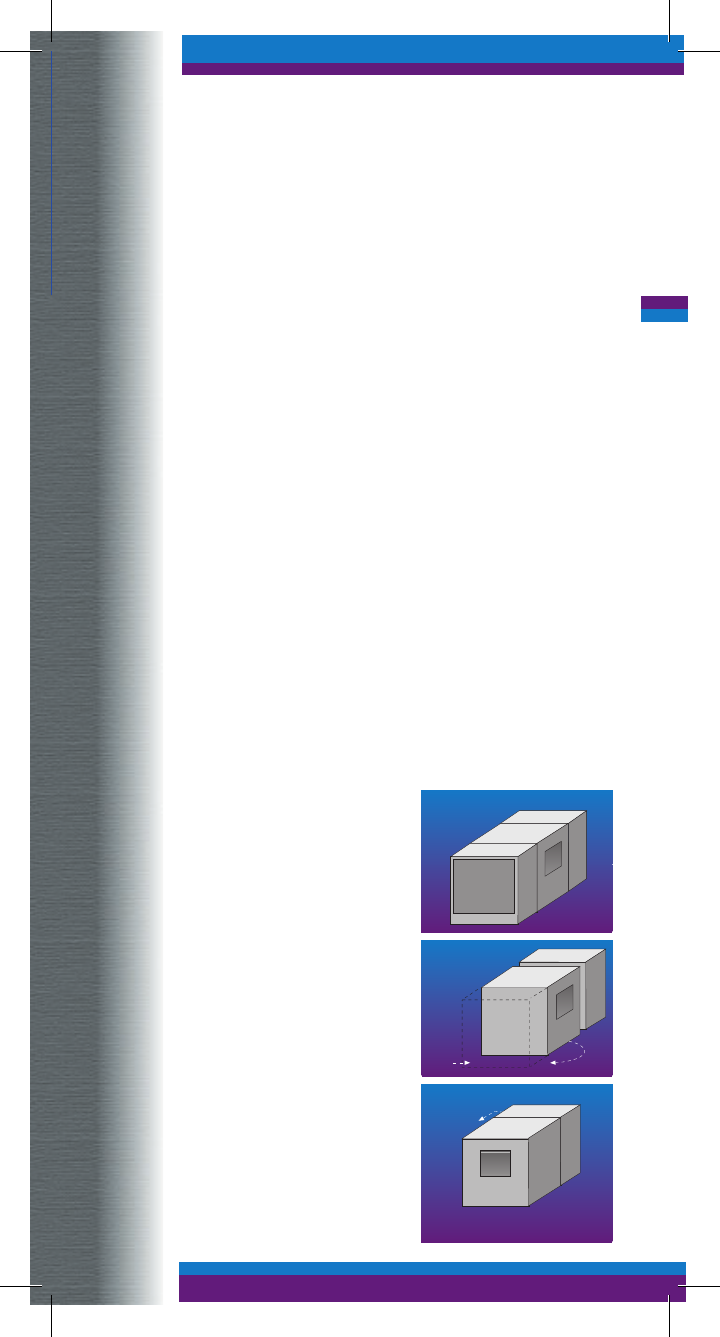

SPECIFICATION GUIDE FOR MODELS:

Double Inlet Configuration

Single Inlet Configuration

connect

BLOWER UNIT

BLOWER UNIT

INLET UNIT

INLET UNIT

INLET UNIT

rotate

remove

BLOWER UNIT

INLET UNIT

P

A
