(3) Preset zoom mode
With this mode, the magnification ratio can be set to one of the pre-
set ratios:
[Available magnification ratios]
Inch specification
Reduction
25%
50% (11" x 17"
R 5
1/2
" x 8
1/2
")
64% (11" x 17"
R 8
1/2
" x 11")
77% (11" x 17"
R 8
1/2
" x 14")
78% (8
1/2
" x 14"
R 8
1/2
" x 11")
Enlargement 121% (8
1/2
" x 14"
R 11" x 17")
129% (8
1/2
" x 11"
R 11" x 17")
154% (5
1/2
" x 8
1/2
"
R 8
1/2
" x 14")
200% (5
1/2
" x 8
1/2
"
R 11" x 17")
400%
Metric specification
Reduction
25%
50%
70% (A3
R A4, A4 R A5)
75% (11" x 15"
R A4)
90% (Folio
R A4)
Enlargement 106% (11" x 15"
R A3)
127% (Folio
R A3)
141% (A4
R A3, A5 R A4)
200% (A5
R A3)
400%
Metric specification (Asia Pacific)
Reduction
25%
50%
70% (A3
R A4, B4 R B5)
81% (B4
R A4, B5 R A5)
86% (A3
R B4, A4 R B5)
Enlargement 115% (B4
R A3, B5 R A4)
122% (A4
R B4, A5 R B5)
141% (A4
R A3, B5 R B4)
200% (A5
R A3)
400%
1

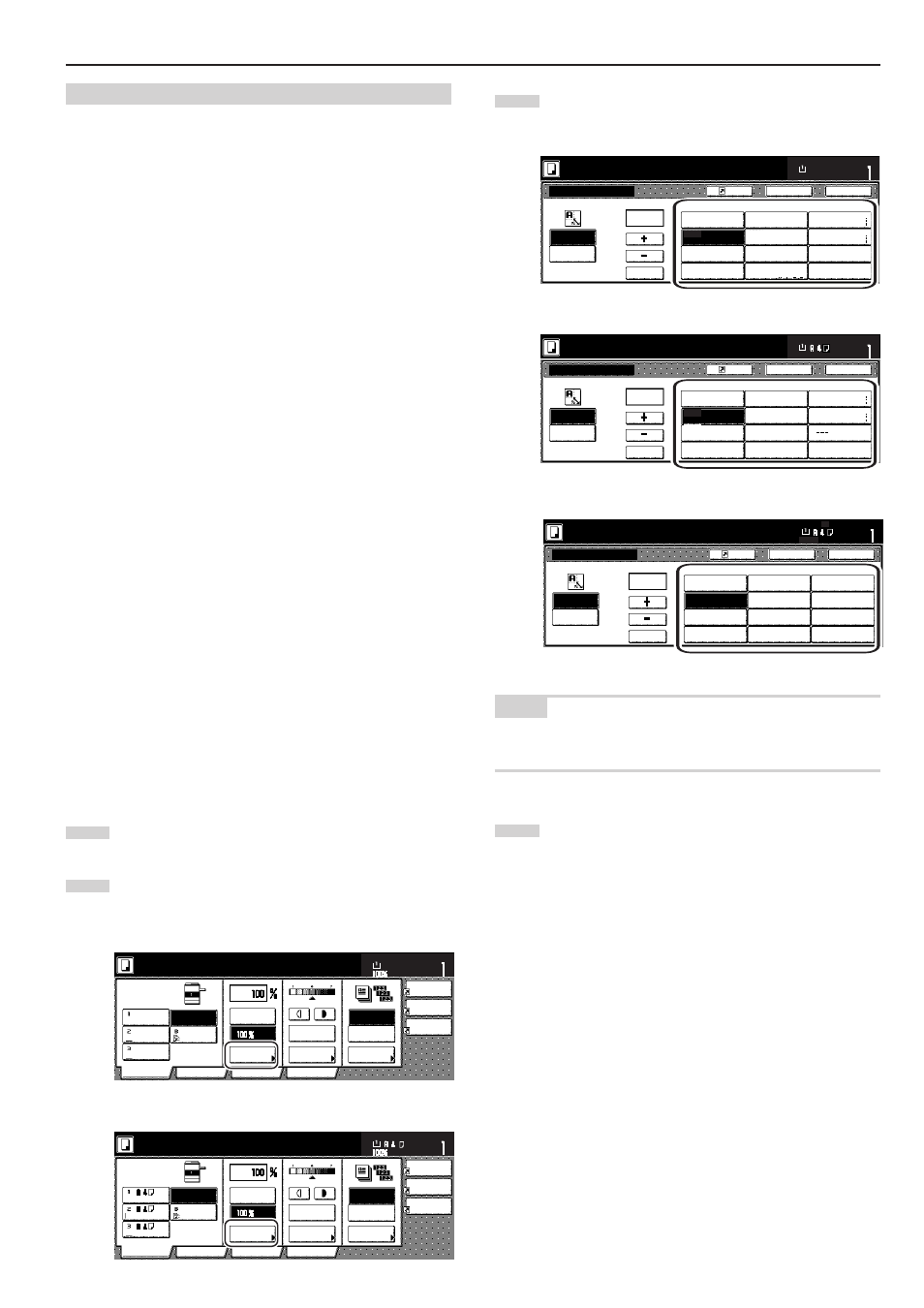

Set the original to be copied.
2
Touch the “Reduce/Enlarge” key.
The “Reduce/Enlarge” screen will be displayed.
3
Touch the preset zoom key that corresponds to the
magnification ratio that you want to use.
Inch specifications
Metric specifications
NOTE
You can also change the magnification ratio in 1% increments by
touching the “+” key or the “-” key, as appropriate.
4
Press the [Start] key to begin the copying procedure.
