Maintenance
Date en cours : 6 décembre 2000
\\Sct31nt3\doc 31nt3 mac\SAGEM FM\DOC EN COURS\MFK 23260964-8 36xx Sagem GB\Maintenance.fm
+

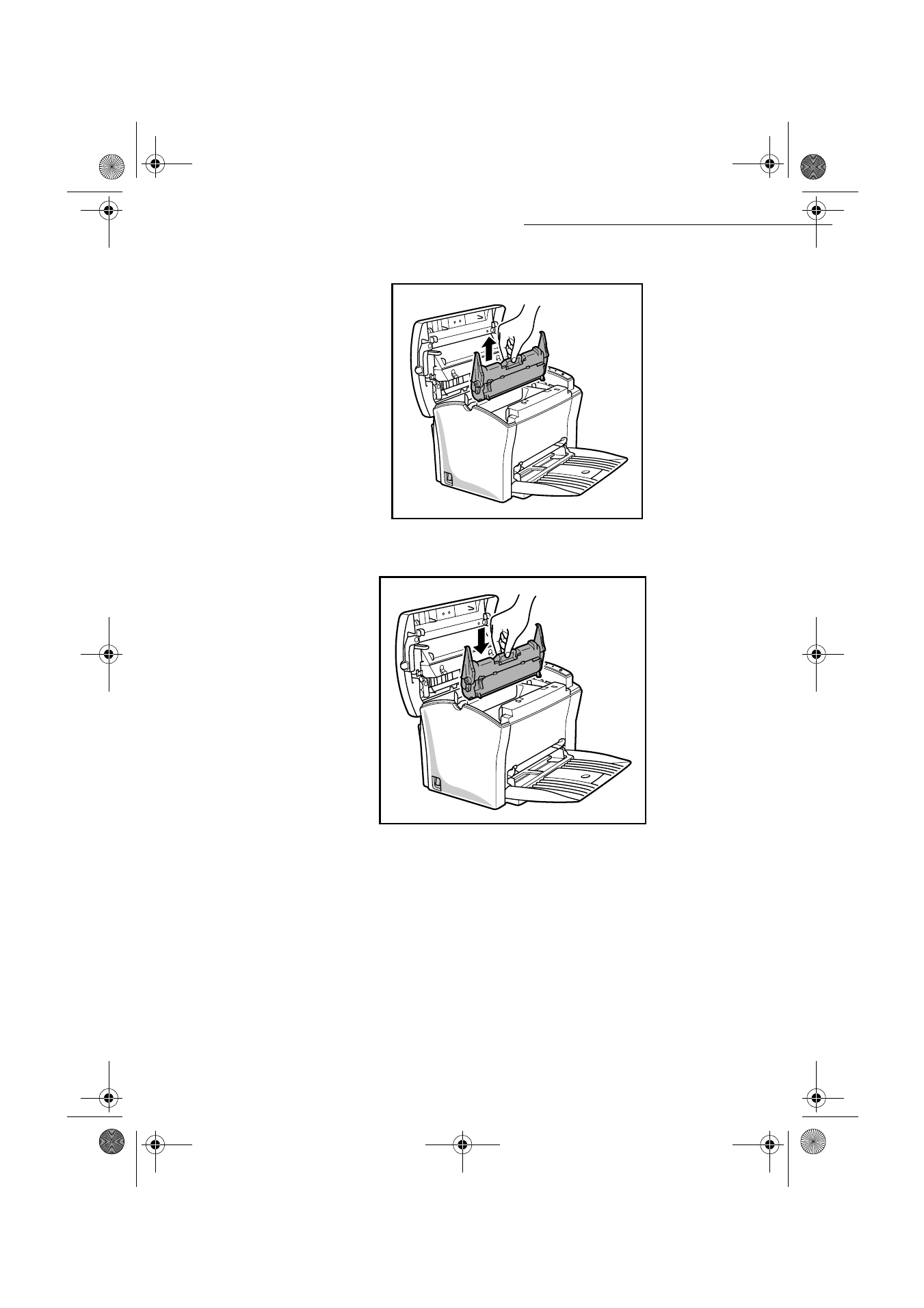

5- Remove the old drum cartridge.
+
6- Install the drum cartridge into the printer, aligning the guides of the cartridge with the
grooves inside the printer.
Remark : Colour coordinated "1" labels have been affixed to the drum cartridge and to the inside of the printer. Install the
drum cartridge by aligning these labels.
Make sure the drum cartridge is inserted inside the printer as far as it will go.
