3. ROSENVIEW VX CONNECTORS, LEDS, AND CONTROLS
The front side of the RosenView VX unit houses a USB port, the Reset/Power button, and LED
displays. The plug in the lower right covers a connector used only by Rosen Aviation technicians.

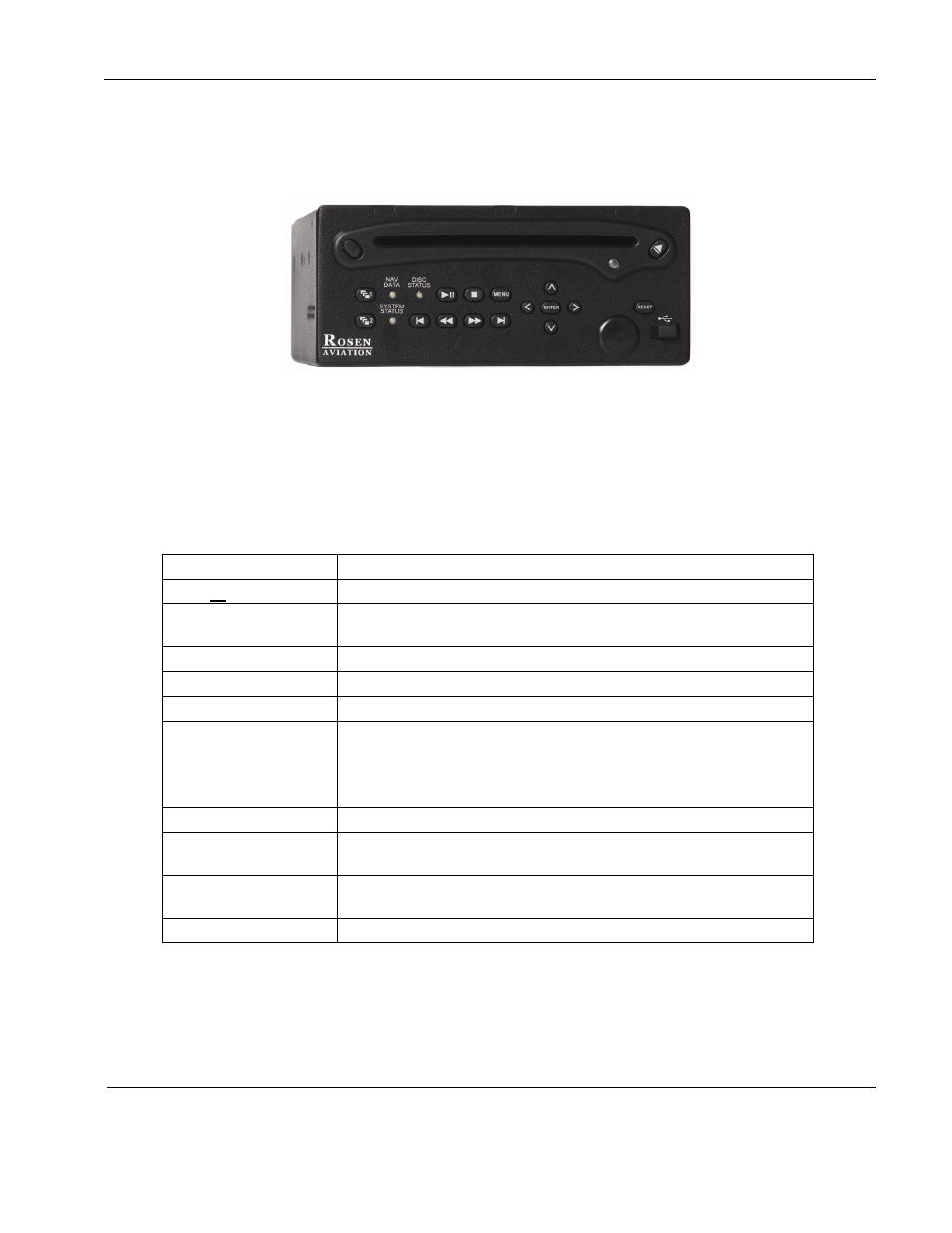

Figure 3 RosenView VX front panel
3.1. Front Panel Indicators and Controls
You can control the RosenView VX DVD from the front panel controls; however, you cannot
control the moving map.
Table 1 RosenView VX DVD buttons
Button How it Works
Eject ▲ Press to eject or insert a disc.
Menu Accesses the DVD menu or the DVD player’s setup menu if no
disc is inserted.
▲ ▼ ◄ ► Navigates through DVD menu options.
Enter Selects a DVD menu option to view.
Play/Pause ►II Pauses and plays the DVD.
Stop
■
Stops the DVD. When
■
is pressed once, press the ► button to
resume the movie where it was stopped. If the
■
button is pressed
twice, then pressing the ► button will start the movie back at the
beginning.
Previous I ◄ Previous chapter reverse.
Fast Reverse ◄◄ Moves left in a menu. Hold in while a disc is playing to view
previous scenes. Continue to hold for different reverse speeds.
Fast Forward ►► Moves right in a menu, or hold in while a disc is playing to “fast
forward. ” Continue to hold for different fast forward speeds.
Next ►I Advances to the next chapter forward.
