Rosen Aviation RosenView VX Technical Manual
Document Number: 100640 Revision: G
Date: 9/19/12
Template: 4.4.1.6FM1; Revision A; 31 May, 2012 Page 10 of 23
3.2.3. J3 - Analog RGB – 15-pin VGA
Connector Type: 15-pin high-
density VGA (female)
Rosen Connector Kit: 0300-026
(included)
Pin # Signal
1 Red Signal
2 Green Signal
3 Blue Signal
4 NC
5 GND
6 GND (Red return)
7 GND (Green return)
8 GND (Blue return)
9 NC
10 GND (Sync return)
11 NC
12 DDDA
13 HSYNC
14 VSYNC
15 DDCK
3.3. VX Map Screen
– Optional Remote
The RosenView VX provides a standard line-level audio output.
The audio outputs are designed to integrate with an audio or
headphone amplifier; the audio output is not adjustable in the
RosenView VX.
With the optional remote control, you can control the map and source select of the output by
touching the remote control’s screen. The RosenView VX uses two touch screens: VX Map and
VX DVD. Touch either button on the screen to select which device to control. Press the device
tabs or hard buttons beneath them to switch keypad screens.

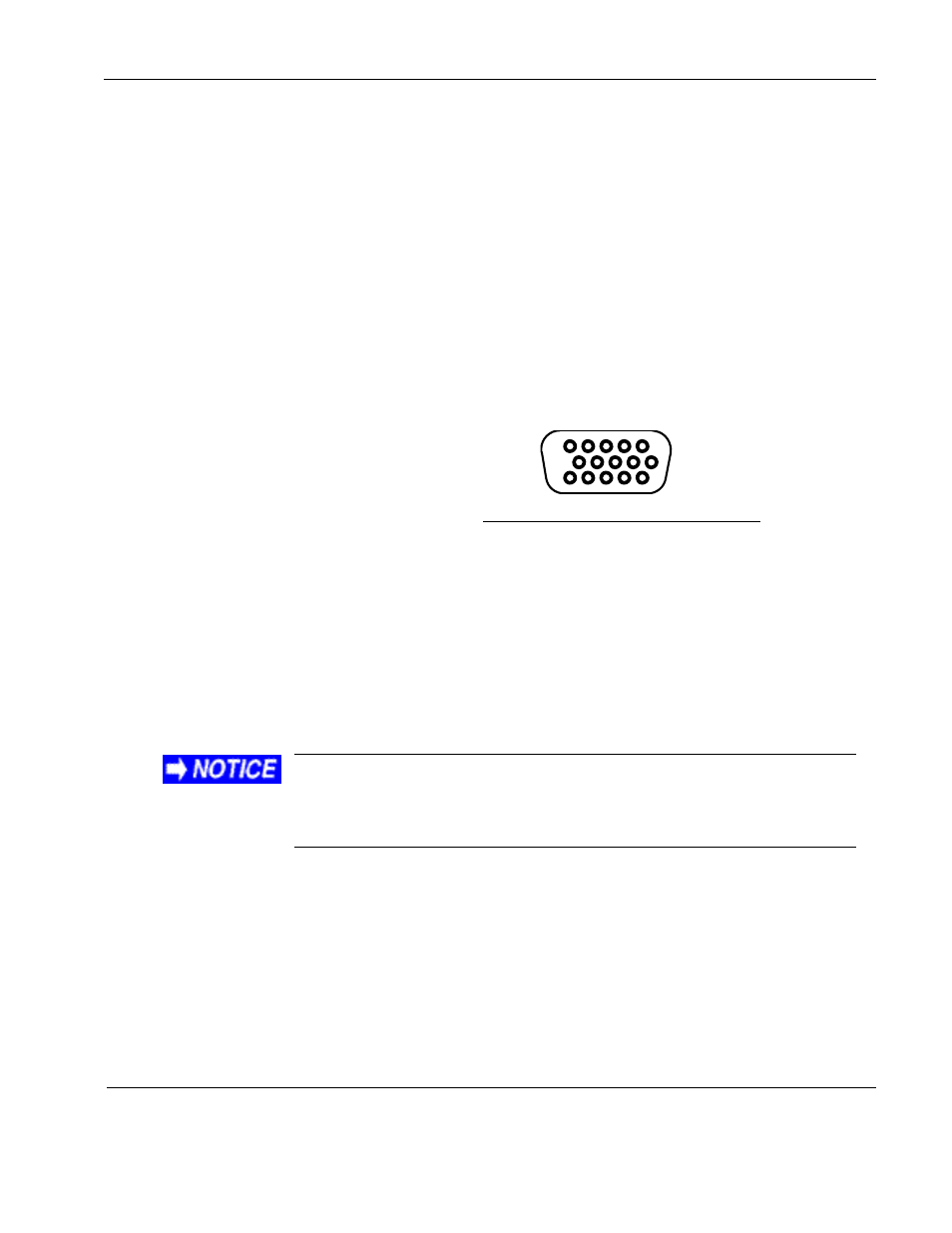

Rear view of RosenView VX VGA Connector
10
11
1 5
6
15
