Rosen Aviation RosenView VX Technical Manual
Document Number: 100640 Revision: G
Date: 9/19/12
Template: 4.4.1.6FM1; Revision A; 31 May, 2012 Page 5 of 23
2. INSTALLATION GUIDELINES
There are three different flange-mounting orientations possible for the RosenView VX: slot
horizontal, slot vertical and in an upright position as shown in the figure below.
Rosen Aviation
Ros
en
A
v
iati
on
T
op
or
Bot
tom

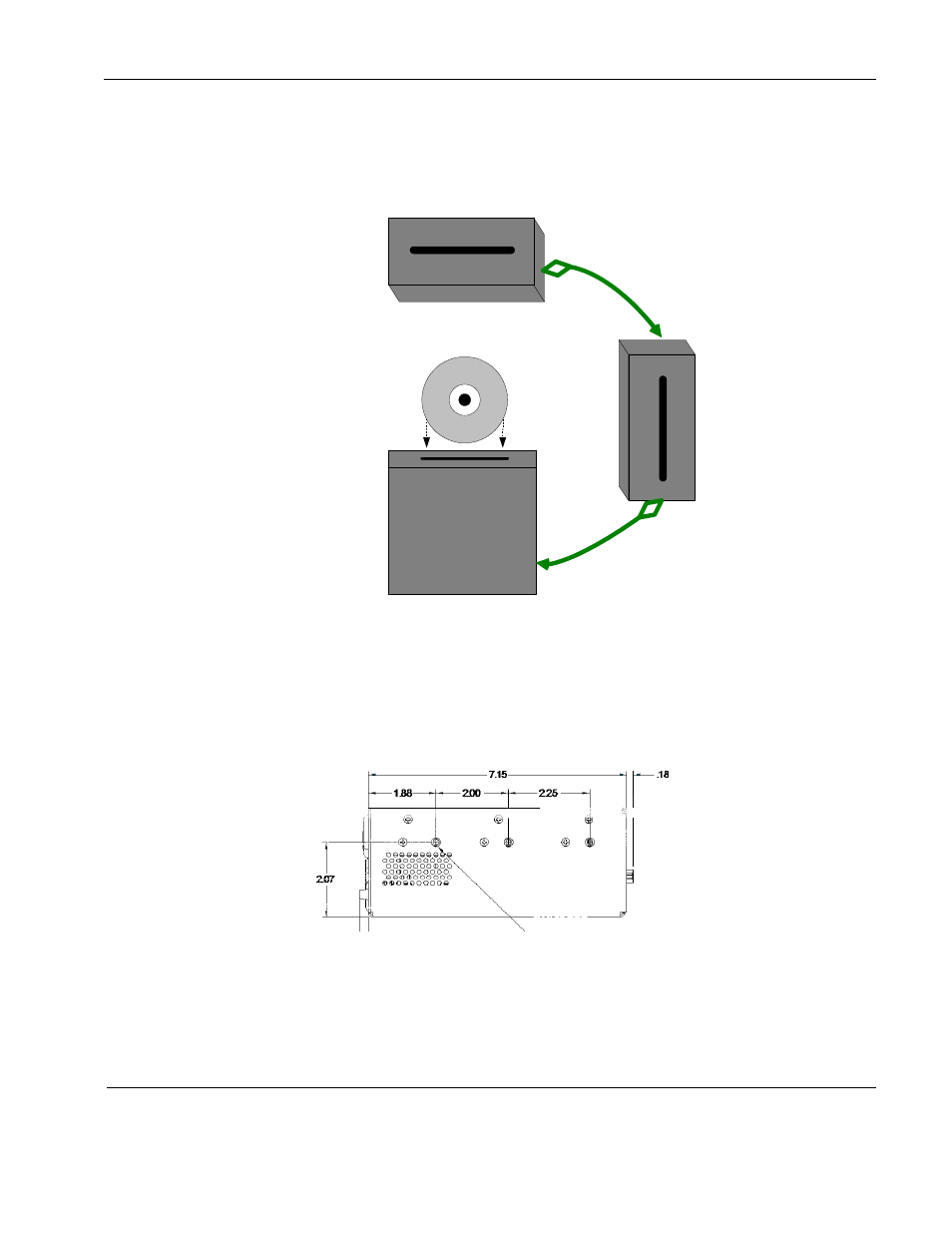

Figure 1 Mounting positions for the RosenView VX
2.1. Mounting Requirements
Three mounting holes are available on each side for 10-32 screws, as shown below, and on the
outline and installation drawing.
Caution: Do not use the drain holes on the underneath side of the unit for mounting!
Figure 2 RosenView VX mounting holes
Do not exceed
.5” maximum
insertion depth
for mounting
hardware
