7.1. Technician Advanced Submenu
This submenu provides installers and technicians more advanced controls of the image. The
input signal determines which options will appear in the Technician Advanced submenu.

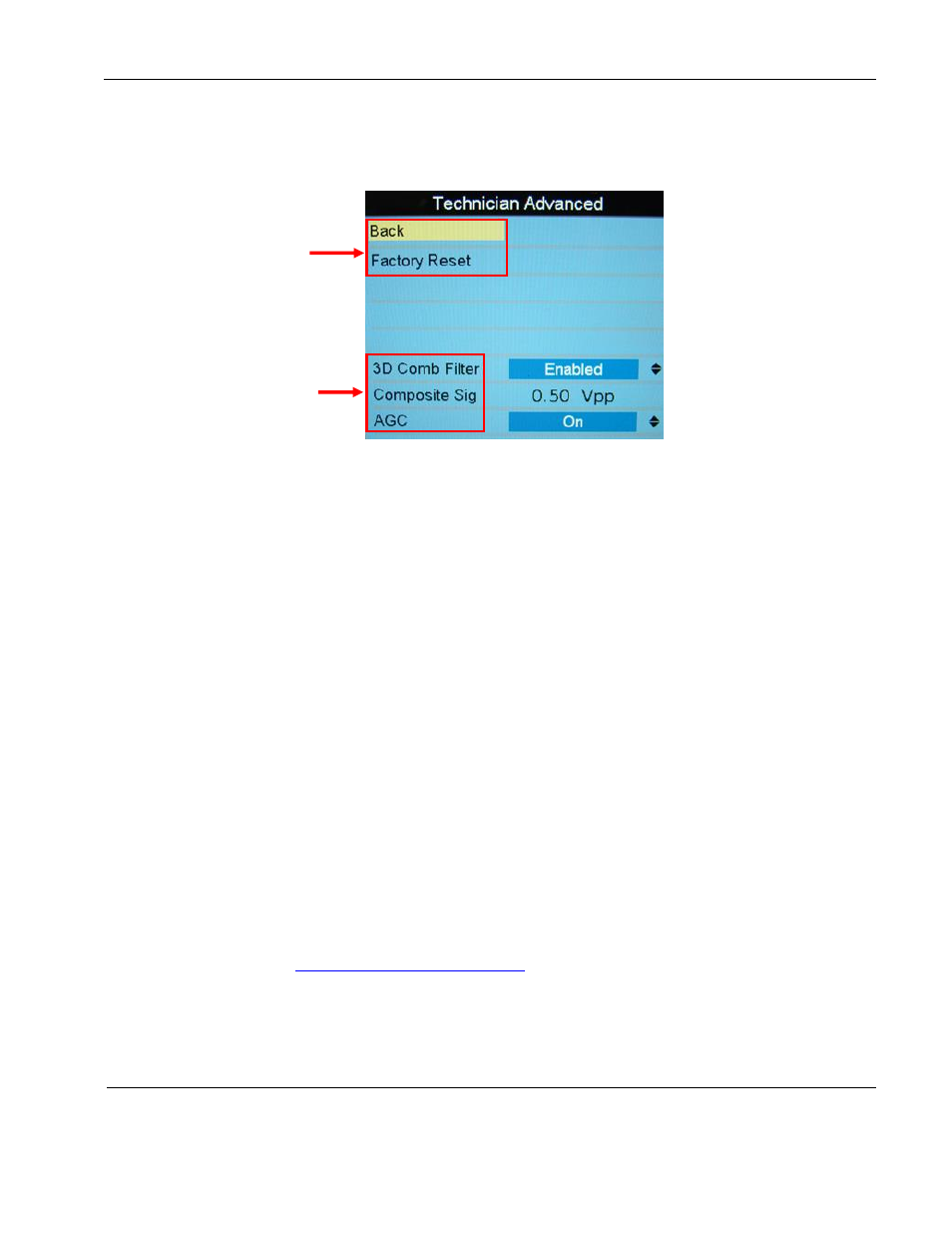

Figure 26 Technician Advanced submenu
7.1.1. Factory Reset
Choose this option to perform a complete factory restore. Factory Reset returns all
options with pre-determined defaults in both the User and Technician menus to their
factory default settings.
Highlight AdvancedFactory Reset and press Menu.
A Reset Complete message appears after the display restores the default settings.
Remember to power cycle after performing a Factory Reset.
7.1.2. 3D Comb Filter
(Composite only) When set to Enabled (default), the display will eliminate dot crawl and
some noise on stationary portions of the picture.
Highlight Advanced3D Comb Filter and press Menu.
Use + and – to set the option Enabled or Disabled, and then press Menu.
Select Back and press Menu to return to the Technician Menu.
To exit the OSD, select Back and Exit.
7.1.3. Composite Sig (Signal)
(Composite only) This is a read-only screen that shows the signal strength of the
currently viewed Composite source. Composite Signal strength ranges from 0 to 1.25
Vpp in 0.25V increments. It will read NA (not available) if a Composite source is not
active or the
AGC (Automatic Gain Control) (below) is set to Off.
The only options
available on SDI
models
Additional options
available on
Composite models
