Rosen Aviation 7” Widescreen Display
Document Number: 106211 Revision: B
Date: 04/17/14
Template: 4.4.1.6FM2; Revision A; 12/06/12 Page 15 of 31
6. OSD MENU OPTIONS
The OSD contains screen settings and options in menus and informational readouts that display
over the image, as shown below. Press Menu on the front panel to open the Main Menu, as
shown in
Figure 15 on page 15 .
Press + and – to navigate within the menu pages, options, and values columns. Select the Back
option to switch menu pages. The yellow highlighted area shows the currently selected option.
 Press Menu and + to move right across the menu page options and values.
 Press Menu and – to move left across the menu page options and values.

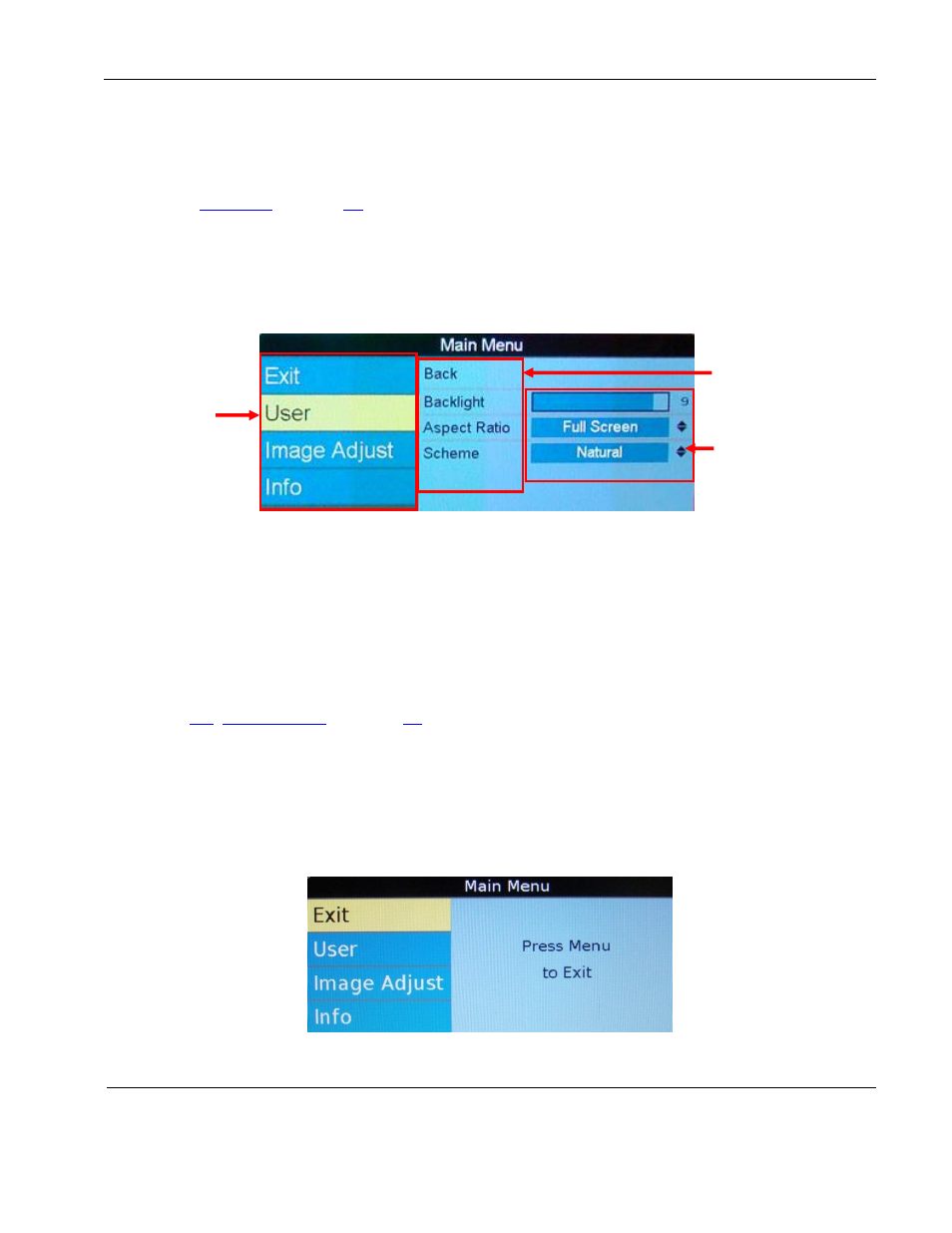

Figure 14 OSD menu pages
The available menu options will vary depending on which source signal is active.
 Press Menu to choose a setting or an option.
 Select the Back option to switch menu pages.
 Select Exit and then press Menu to close the OSD and save the settings.
Note: The on-screen display will timeout and automatically close after no screen activity for a
preset amount of time, which is adjustable on the Technician Menu OSD Timeout option. See
Section
7.3 , OSD Timeout , on page 24 .
6.1. Exit
Use Exit to close the OSD. When you press Menu, the OSD opens to this screen, as shown
below. Press Menu again to close the OSD from this screen.
Press + and – to access the other menu pages in the OSD.
From other settings within the OSD, select Back and Exit to close the OSD.
Figure 15 Opening screen for the Main Menu
Press + to access
the menu page
options
Press + to access
the menu option
values
Press – to
access menu
pages. The
selected menu
page is
highlighted.
