6.3.4.1. Color Temperature
Use the Color Temperature options to change the warmth of the picture in all sources.
When you select Color Temperature, the screen changes, and a toggle appears to
switch between User and 6500K, as shown below.

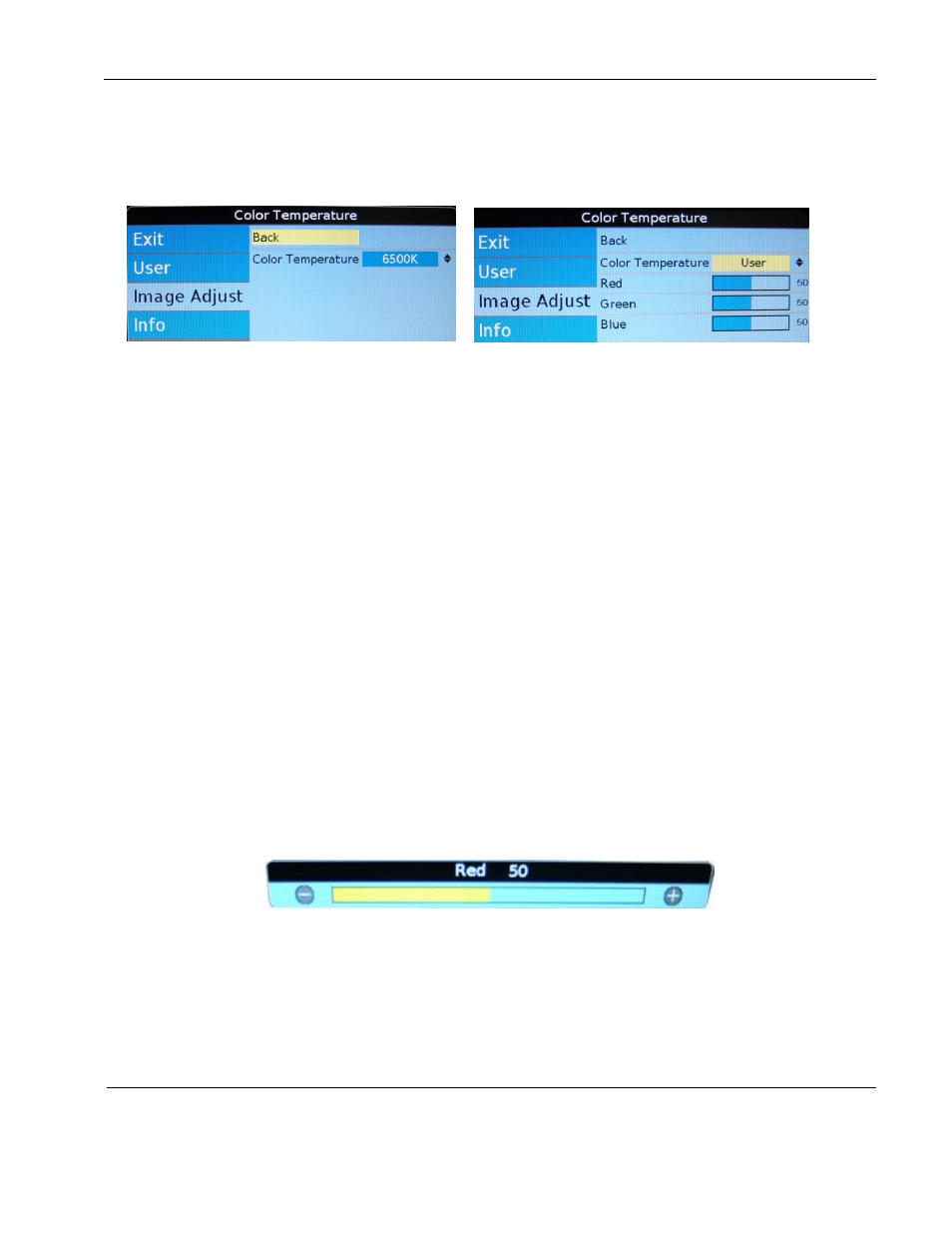

Figure 21 Color Temperature options
Press
– and Menu to open the Color Temperature Page.
Press – to access the User setting and then press Menu and – to access the
individual colors.
6.3.4.1.1. Color Levels: Red, Green, Blue
Setting the Color Temperature to User will make the Red, Blue, and Green options
active. Each color adjusts the low-level registers of its respective color value in the
picture.
Select the Image AdjustAdvancedColor Temperature and press Menu. Set
Color Temperature to User, and then press Menu.
Press – to choose a color level, and then press Menu to open a control bar to
adjust the value, similar to Figure 22 shown below.
 Red: Press
–
to show more cyan-colored tones, and press + to intensify the
red tones.

Green: Press
–
to show more magenta tones, and press + to intensify the
green tones.
 Blue: Press
–
to show more yellow tones, and press + to intensify the blue
tones.
Press Menu to set the color and close the control bar.
Select BackExit to close the OSD.
Figure 22 Sample color-level control bar
